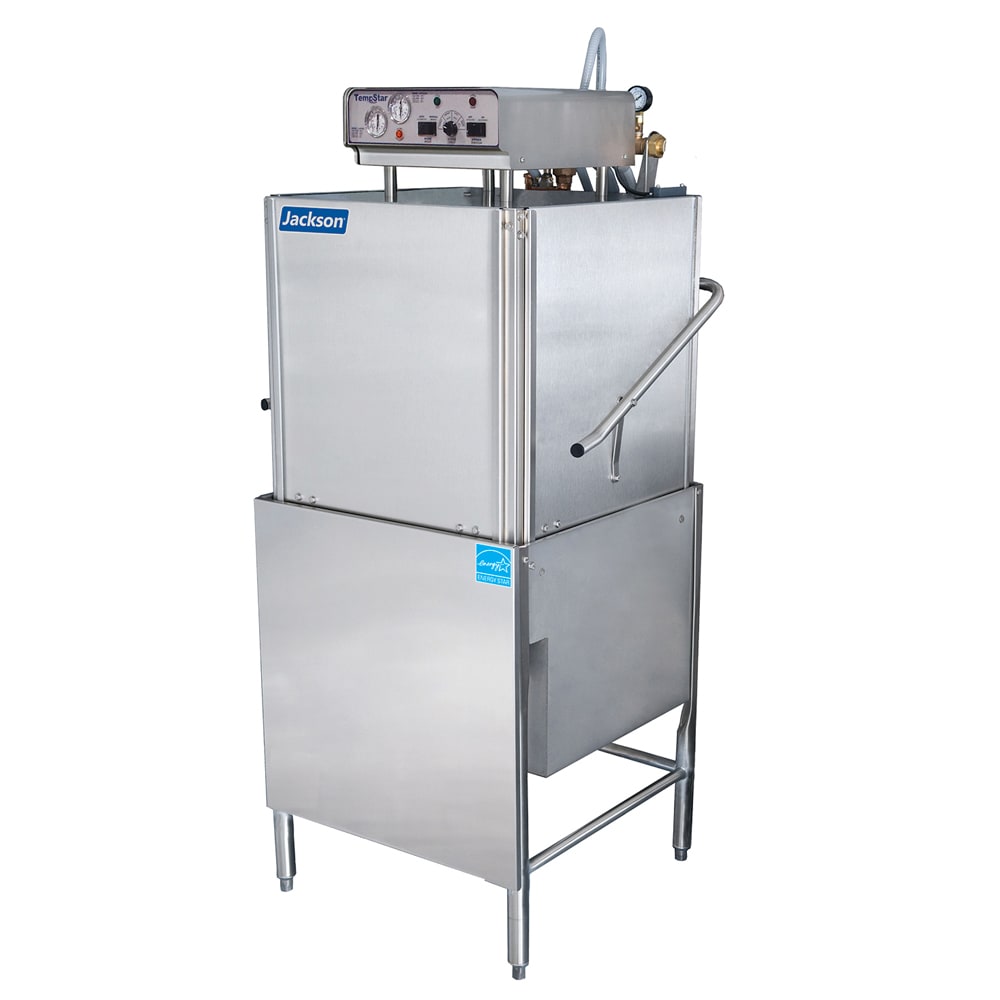

Jackson TEMPSTAR W/O High Temp Door Type Dishwasher w/ No Booster Heater, 208v/1ph

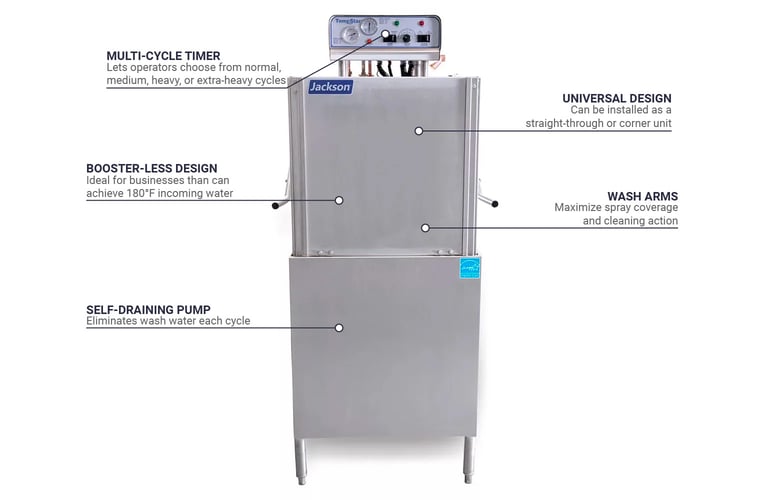

This Jackson TEMPSTAR W/O TempStar® door-type, high-temp dishwasher is ideal for businesses with access to 180-degree-Fahrenheit incoming water because it doesn't include a booster heater. At the correct sanitization temperatures, this unit can clean 63 racks per hour with 56.07 gallons of water per hour, or 0.89 gallons per rack. Staff can set normal (57 seconds), medium (117 seconds), heavy (177 seconds), or extra-heavy (297 seconds) cycles with the multi-cycle timer to ensure cleaning of various soil levels. Its auto tank fill and door-actuated start simplify beginning a new cycle, while its interchangeable wash/rinse arms and stainless steel nozzles maximize wash action. To prevent damage if temperatures rise or water levels drop, this unit includes a high-limit thermostat and low-water protection.

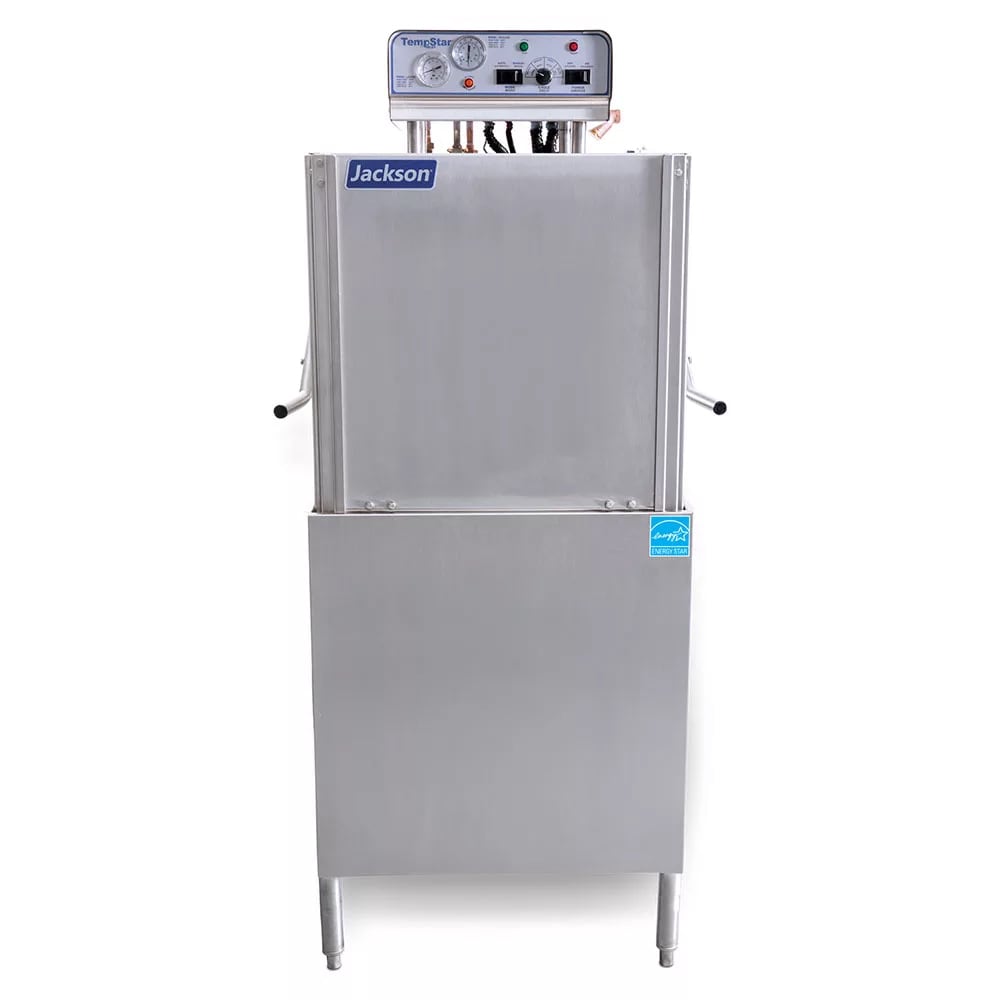

Because it's a universal-style unit, the Jackson TEMPSTAR W/O high-temp dishwasher can be installed as a straight-through or corner unit once it's field converted with a kit (sold separately). This 32-inch-wide by 29-inch-deep by 64³⁄₈-inch-tall machine is made of durable stainless steel—a corrosion- and rust-resistant metal that can be wiped clean between uses. Its front dress panel reinforces a sleek look by concealing key internal components, protecting them from damage. To prevent rocking and wobbling during operation, its bullet feet can be adjusted on irregular flooring.

Product Details

• High-temp sanitization
• Doesn't include booster heater
• Washes 63 racks per hour (58 racks with suggested NSF load time)
• Uses 0.89 gal. of water per rack (56.07 gal. of water per hour)
• 8-gal. wash tank
• Top-mounted controls
• Multi-cycle timer with normal (57 seconds), medium (117 seconds), heavy (177 seconds), and extra-heavy (297) cycle options
• Automatic tank fill
• Door-actuated start
• High-limit thermostat and low-water protection
• Interchangeable rinse/wash arms can be removed for cleaning
• Self-draining stainless steel pump
• Vent control turns fan off during idle periods
• Delime cycle reduces hard water buildup
• Manual-wash switch
• Door switch
• 1-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket catches debris

Construction

• 17¹⁄₄-in. chamber clearance
• Rigid stainless steel construction
• Front dress panel
• Adjustable bullet feet
• Single-point connection
• Field convertible from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 180 degrees F
• Flow pressure: 8-12 PSI
• 4-in. wall clearance

Dimensions & Utilities

• 32 in. W x 29 in. D x 64³⁄₈ in. H
• 24.7 A, 4.1 kW, 1 HP
• 208 V/60 Hz/1 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

Product Features

From The Manufacturer

TempStar® Dishwasher, Door Type, high temperature, no booster, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.90 gallons per rack), electro-mech controls, stainless steel finish, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
