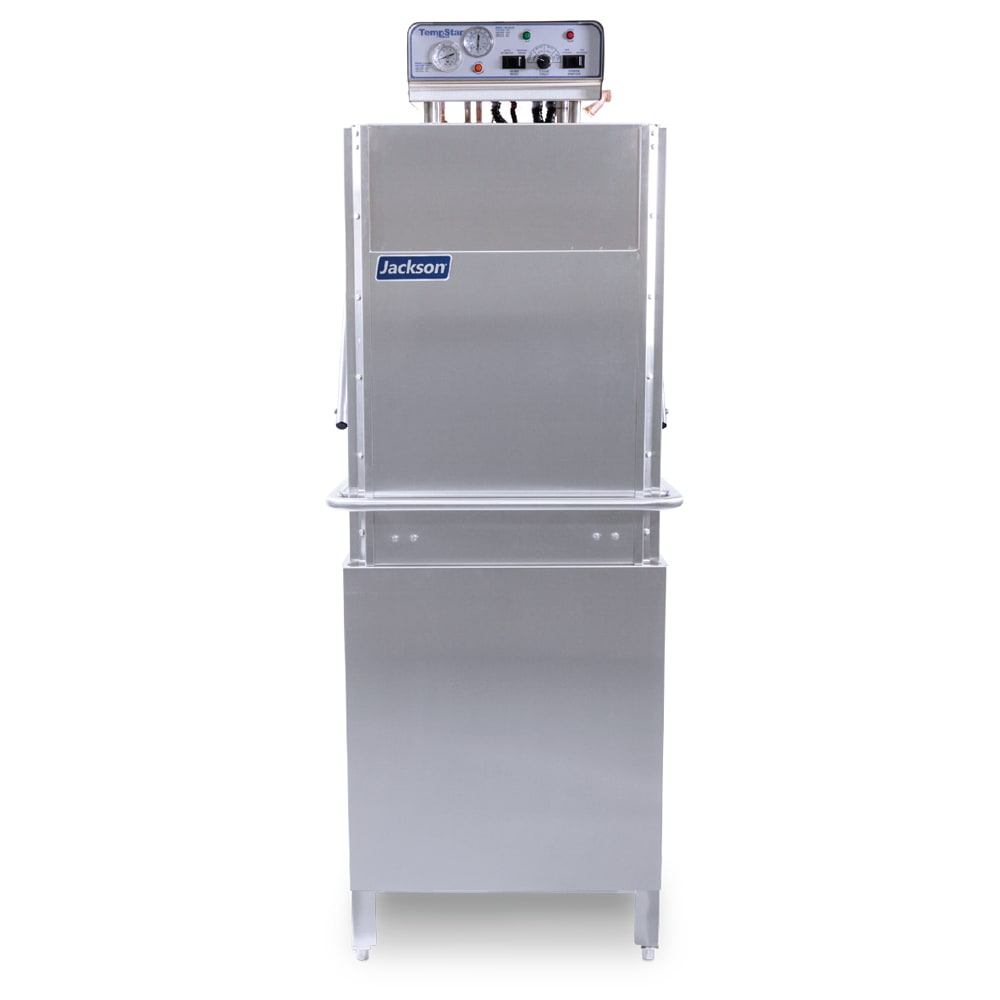

Jackson TEMPSTAR HH-E W/O TempStar® High Temp Door Type Dishwasher w/ 55 Rack/hr Capacity, 230v/1ph

To fit compact kitchens without sacrificing output, this Jackson TEMPSTAR HH-E W/O TempStar® door-type dishwasher measures 28⁵⁄₈ inches wide by 34³⁄₈ inches deep by 76³⁄₈ inches high. With a field conversion kit (sold separately), it can be installed as a straight-through or corner unit. While its split-door design protects low ceilings from damage, its 20³⁄₄-inch-wide by 27-inch-high opening accommodates large mixing bowls and sheet pans. To endure rigorous use, it's made of rust-, corrosion-, dent-, and warp-resistant stainless steel, and its front dress panel hides key internal components to protect them from damage. For minimal rocking or wobbling during cycles, its bullet feet can be modified on irregular flooring.

Great for facilities with access to 180-degree-Fahrenheit incoming water, the Jackson TEMPSTAR HH-E W/O high-hood warewasher doesn't include a booster heater. As washing needs change, staff can select from a normal, medium, heavy, or extra-heavy cycle with the multi-cycle timer. To maximize output, its normal setting can wash a rack in 60 seconds with 0.72 gallons of water, or 60 racks per hour with 43.2 total gallons of water. To simplify new cycles, it fills and starts automatically. Lower counter-rotating wash arms and an upper wash arm optimize spray coverage and cleaning action, while the self-draining stainless steel pump removes wash water. To reduce damage risks, this unit is built with a low-water protection system and a high-limit thermostat.

Product Details

• High-temp sanitization
• No booster
• Washes 60 racks per hour (55 racks with suggested NSF load time)
• Uses 0.72 gal. of water per hour (43.2 gal. of water per hour)
• 8-gal. wash tank
• Multi-cycle timer includes normal, medium, heavy, and extra-heavy cycle options
• Automatic tank fill
• Auto-start mechanism
• High-limit thermostat
• Low-water protection
• Lower counter-rotating wash arms
• Upper wash arm
• Self-draining stainless steel pump
• Large scrap basket
• Delime cycle eliminates hard water
• Vent fan control
• Manual-wash switch
• Door switch
• 2-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box

Construction

• Accommodates 60-qt. mixing bowls and 18-in. x 26-in. sheet pans
• High-hood configuration
• Stainless steel construction with front dress panel
• Split-door design
• Adjustable bullet feet
• Single-point connection
• Can be field converted from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 180 degrees F
• Flow pressure: 10 PSI
• 4-in. wall clearance
• Minimum ceiling height: 88 in.

Dimensions & Utilities

• Opening: 20³⁄₄ in. W x 27 in. H
• Overall: 28⁵⁄₈ in. W x 34³⁄₈ in. D x 76³⁄₈ in. H
• 33 A, 5 kW, 2 HP
• 230 V/60 Hz/1 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

Product Features

*Free shipping on Jackson TEMPSTAR HH-E W/O within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, Door Type, high hood, high temperature, no booster, universal (straight-thru/corner) type, approximately (55) racks/hour, 0.72 gallon of water per rack, universal timer, all stainless steel finish, 2 HP, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
