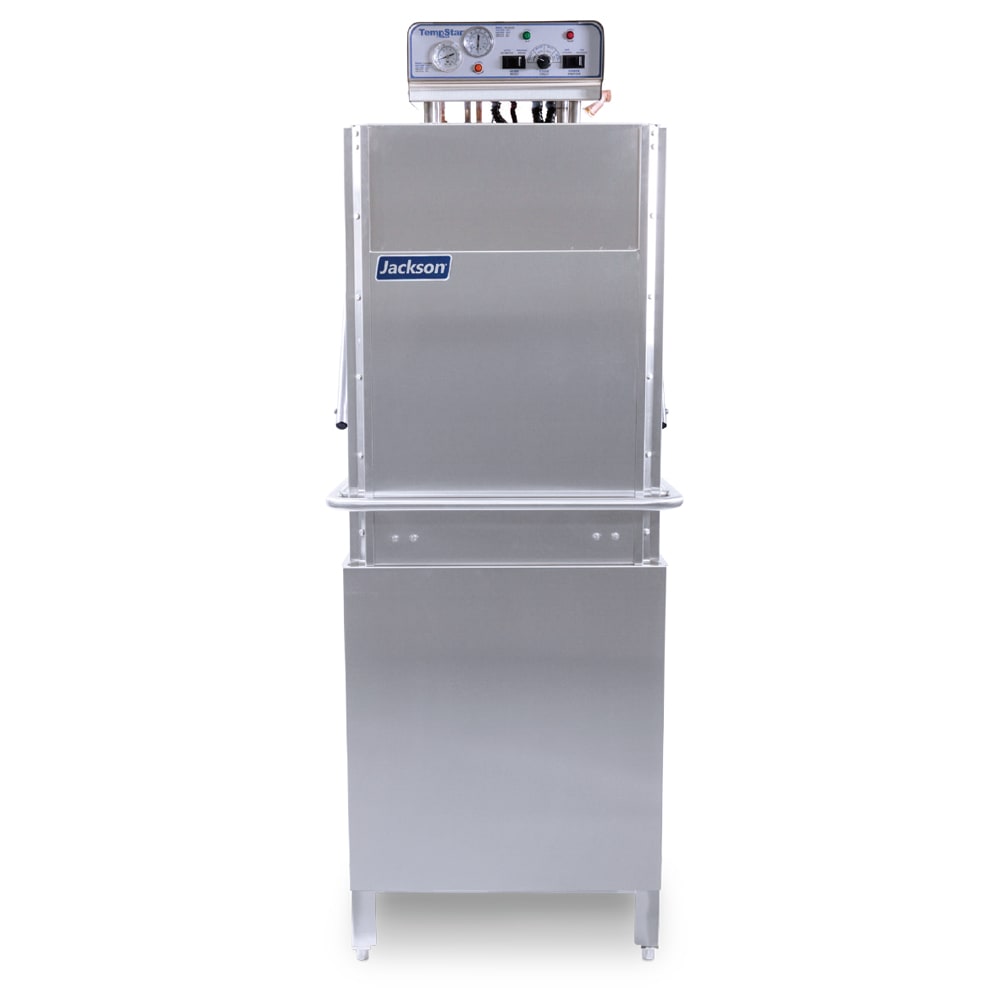

Jackson TEMPSTAR HH-E W/O TempStar® High Temp Door Type Dishwasher w/ 55 Rack/hr Capacity, 208v/3ph

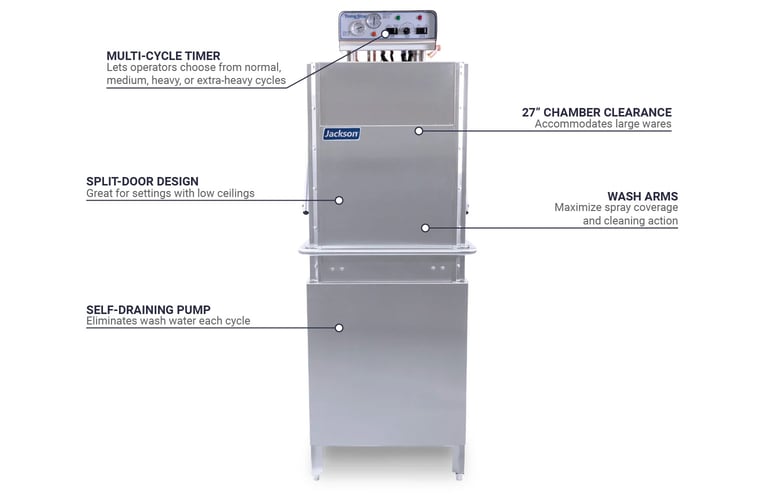

Because this Jackson TEMPSTAR HH-E W/O high-hood dishwasher's chamber measures 20³⁄₄ inches wide by 27 inches tall, it accommodates 60-quart mixing bowls and 18-inch by 26-inch sheet pans, meaning it's certified as a dishwasher and pot, pan, and utensil washer. This 28⁵⁄₈-inch-wide by 34³⁄₈-inch-deep by 76³⁄₈-inch-high unit can be installed as a straight-through or corner unit with the field conversion kit (sold separately). To prolong its service life, its rust- and corrosion-resistant stainless steel construction withstands rigorous use in fast-paced kitchens. Its split door helps reduce damage to low ceilings, while its bullet feet can be raised or lowered on uneven flooring.

Because the Jackson TEMPSTAR HH-E W/O dishwasher doesn't include a booster heater, incoming water must be 180 degrees Fahrenheit for proper sanitization. To accommodate specific loads, its multi-cycle timer includes a normal (60 seconds), medium (123 seconds), heavy (183 seconds), and extra-heavy (303 seconds) cycle. The normal cycle can wash 60 racks per hour using 0.72 gallons of water per rack, or 43.2 gallons of water per hour. This unit includes an automatic tank-fill mechanism, a high-limit thermostat, a low-water protection system, and a vent fan control to ease operation, reduce damage risk, and save energy. Inside the chamber, lower counter-rotating wash arms and an upper wash arm enhance spraying and cleaning action. The self-draining stainless steel pump eliminates wash water each cycle, while a large scrap basket collects food waste.

Product Details

• High-temp sanitization
• No booster heater
• Washes 60 racks per hour (55 racks with suggested NSF load time)
• Uses 0.72 gal. of water per rack (43.20 gal. of water per hour)
• 8-gal. wash tank
• Multi-cycle timer with normal, medium, heavy, and extra-heavy selections
• Automatic tank fill
• Auto-start mechanism
• Delime cycle
• High-limit thermostat
• Low-water protection
• Upper wash arm
• Lower counter-rotating wash arms
• Self-draining stainless steel pump removes wash water each cycle
• Vent fan control turns fan off when unit is idle
• Manual-wash switch
• Door switch
• 2-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket

Construction

• 27-in. chamber clearance accommodates 60-qt. mixing bowls and 18-in. x 26-in. sheet pans
• High hood
• Rust- and corrosion-resistant stainless steel
• Front dress panel conceals interior components
• Split-door design for low ceilings
• Adjustable bullet feet
• Single-point connection
• Field convertible from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 180 degrees F
• Flow pressure: 10 PSI
• 4-in. wall clearance
• Minimum ceiling height: 88 in.

Dimensions & Utilities

• Opening: 20³⁄₄ in. W x 27 in. H
• Overall: 28⁵⁄₈ in. W x 34³⁄₈ in. D x 76³⁄₈ in. H
• 22.6 A, 4.1 kW, 2 HP
• 208 V/60 Hz/3 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

Product Features

*Free shipping on Jackson TEMPSTAR HH-E W/O within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, Door Type, high hood, high temperature, no booster, universal (straight-thru/corner) type, approximately (55) racks/hour, 0.72 gallon of water per rack, universal timer, all stainless steel finish, 2 HP, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
