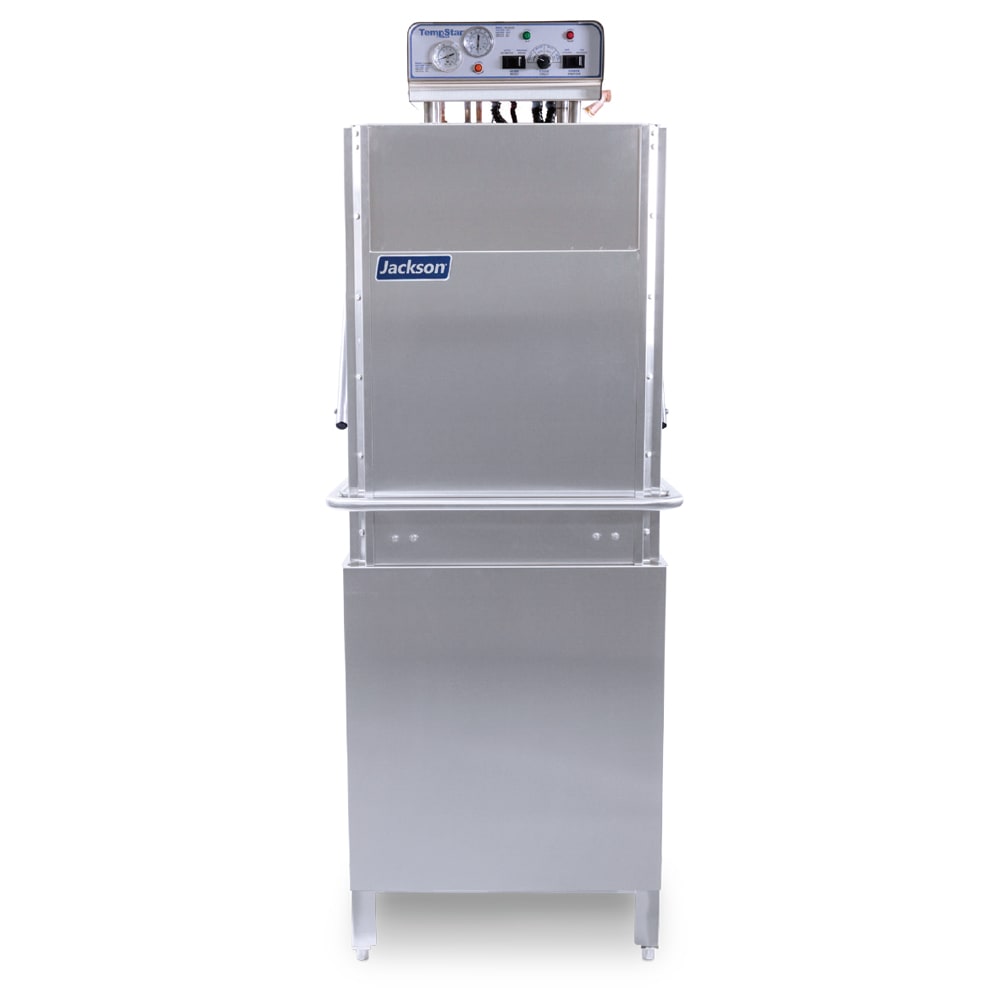

Jackson TEMPSTAR HH-E W/O High Temp Door Type Dishwasher w/ No Booster Heater, 208v/1ph

Because the Jackson TEMPSTAR HH-E W/O TempStar® door-type dishwasher lacks a booster heater, incoming water must be 180 degrees Fahrenheit for proper sanitization. This unit uses 0.72 gallons of water per rack, totaling 43.2 gallons of water for 60 racks per hour. As soil levels change, staff can choose between normal, medium, heavy, or extra-heavy cycles. For streamlined operation, its tank fills automatically, while its high-limit thermostat and low-water protection minimize damage risk. Lower counter-rotating wash arms and an upper wash arm maximize spray coverage, while the self-draining stainless steel pump removes wash water each cycle. To simplify cleaning, a large scrap basket collects food debris, and during idle periods, the vent control fan shuts off to save energy.

Certified as a dishwasher and a pot, pan, and utensil washer for flexibility, the Jackson TEMPSTAR HH-E W/O high-temp, high-hood dishwasher features a 20³⁄₄-inch-wide by 27-inch-tall opening that accommodates 60-quart mixing bowls and 18-inch by 26-inch pans. Although it boasts a large chamber, it measures 28⁵⁄₈ inches wide by 34³⁄₈ inches deep by 76³⁄₈ inches high overall for compact kitchens. This unit is intended for installation in kitchens with a minimum height of 88 inches, and its split-door design can minimize ceiling damage. To fit various settings, it can be installed as a straight-through or corner unit once it's field converted with a kit that isn't included. This stainless steel unit resists rust, corrosion, wear, is simple to wipe clean, and features a front dress panel that protects internal components. Staff can adjust its bullet feet for stabilization on irregular surfaces.

Product Details

• High-temp sanitization
• No booster
• Washes 60 racks per hour (55 racks with suggested NSF load time)
• Uses 0.72 gal. of water per hour (43.20 gal. of water per hour)
• 8-gal. wash tank
• Normal (60 seconds), medium (123 seconds), heavy (183 seconds), and extra-heavy (303) cycles
• Automatic tank fill
• Auto-start mechanism
• High-limit thermostat and low-water protection
• Upper wash arm and lower counter-rotating wash arms
• Self-draining stainless steel pump
• Vent fan control turns fan off when not in use
• Delime cycle
• Manual-wash switch
• Door switch
• 2-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket

Construction

• High hood
• Accommodates large 60-qt. mixing bowls and 18-in. x 26-in. sheet pans
• Stainless steel construction
• Front dress panel
• Split-door design
• Adjustable bullet feet
• Single-point connection
• Field convertible from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 180 degrees F
• Flow pressure: 10 PSI
• 4-in. wall clearance
• Minimum ceiling height: 88 in.

Dimensions & Utilities

• Opening: 20³⁄₄ in. W x 27 in. H
• Overall: 28⁵⁄₈ in. W x 34³⁄₈ in. D x 76³⁄₈ in. H
• 30.9 A, 4.1 kW, 2 HP
• 208 V/60 Hz/1 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

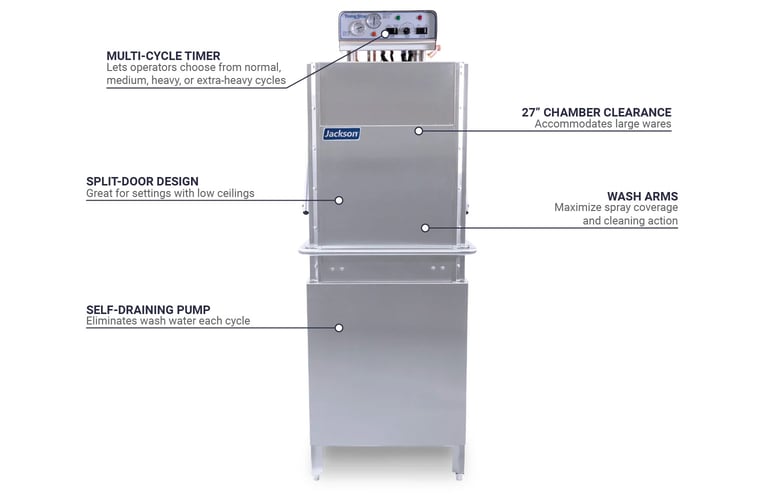

Product Features

From The Manufacturer

TempStar® Dishwasher, Door Type, high hood, high temperature, no booster, universal (straight-thru/corner) type, approximately (55) racks/hour, 0.72 gallon of water per rack, universal timer, all stainless steel finish, 2 HP, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
