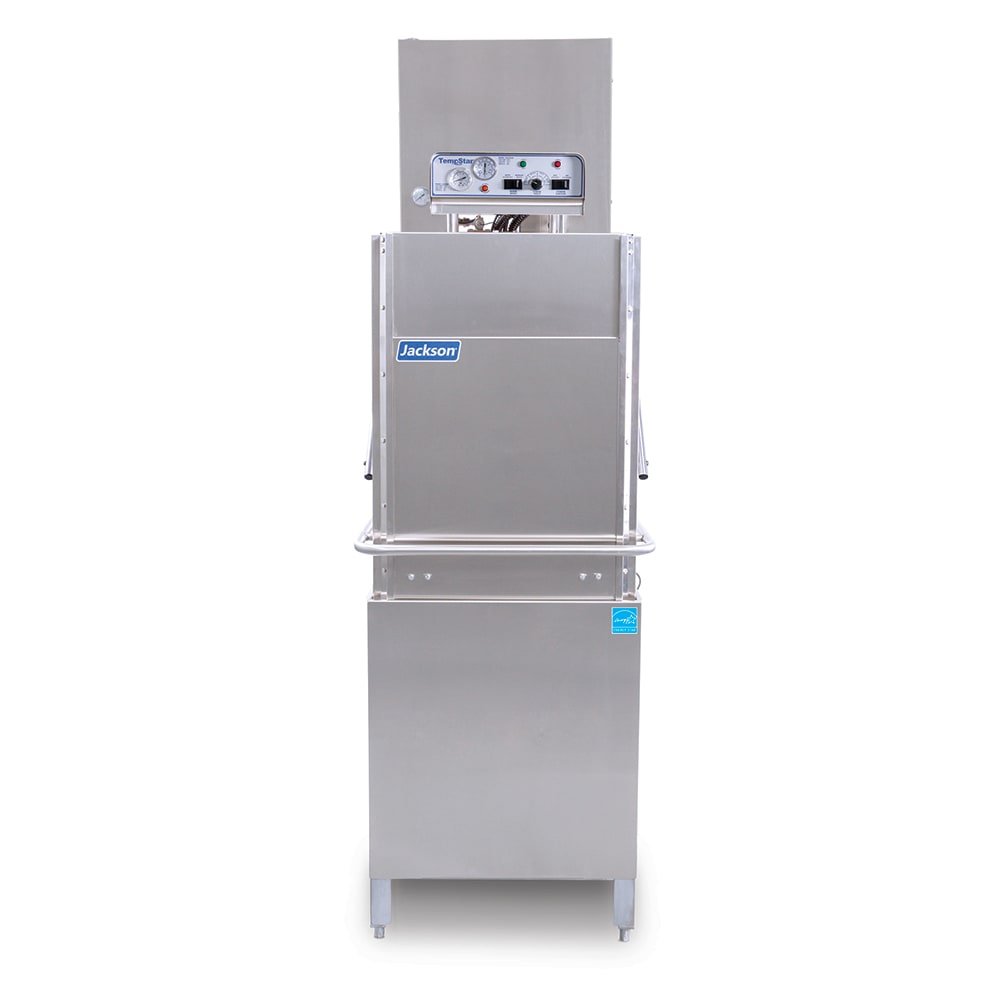

Jackson TEMPSTAR HH-E VENTLESS (VER) TempStar® High Temp Door Type Dishwasher w/ 37 Rack/hr Capacity, Built-in Booster, 208v/1ph

To match the output of high-traffic kitchens, the Jackson TEMPSTAR HH-E VENTLESS (VER) ventless door-type dishmachine can wash a rack in 90 seconds using 0.78 gallons of water, resulting in 40 racks cleaned with 31.2 gallons of water per hour. Operators can select from normal, medium, heavy, and extra-heavy options to ensure dishes, utensils, and large wares are fully sanitized, and this ventless unit uses an energy-recovery system and internal condensing system to heat incoming water with water vapor. Its built-in booster heater raises incoming 40-to-90-degree-Fahrenheit water to 155 degrees Fahrenheit for wash cycles and 180 degrees Fahrenheit for rinse cycles—enforced by the Sani-Sure™ system.

To simplify startup, the Jackson TEMPSTAR HH-E VENTLESS (VER) high-temperature warewasher features an automatic tank fill and start mechanism. While its stainless steel nozzles maximize cleaning action, its self-draining stainless steel pump eliminates wash water each cycle. Its high-limit thermostat and low-water protection streamline operation and minimize damage. To minimize scale buildup and keep operation smooth, users can initiate a delime cycle with the correlating switch.

This commercial dishmachine's chamber opening measures 20³/₄ inches wide by 27 inches high to accommodate 60-quart mixing bowl and 18-inch by 26-inch sheet pans. Despite its tall design, this unit measures 28⁵/₈ inches wide by 35⁵/₈ inches deep by 93 inches high to fit compact kitchens. Its resilient stainless steel construction resists rust, corrosion, and wear and is simple to wipe clean, and this unit is positioned on feet that can be adjusted to fit uneven surfaces.

Product Details

• High-temperature sanitization
• Built-in booster heater raises incoming water 70 degrees F
• Sani-Sure final-rinse system ensures rinse water is 180 degrees F
• Energy-recovery mechanism
• Internal condensing system
• Washes 40 racks per hour (37 racks with suggested NSF load time)
• Uses 0.78 gal. of water per rack (31.20 gal. of water per hour)
• 8-gal. wash tank
• 3-gal. booster tank
• Electromechanical controls
• Normal, medium, heavy, and extra-heavy cycle timers
• Automatic tank fill and start
• Door interlock keeps door locked during cycle
• Delime and manual-wash switches
• High-limit thermostat and low-water protection system
• Stainless steel nozzles
• 2-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Pressure regulator included (requires installation by others)

Construction

• Ventless
• Tall chamber accommodates sheet pans and mixing bowls
• Stainless steel construction
• Adjustable feet
• Single-point connection for all utilities
• Can be field converted from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 40-90 degrees F
• Flow pressure connection: 40 PSI
• Minimum clearance above heat exchanger: 6 in.

Dimensions & Utilities

• Chamber opening: 20³/₄ in. W x 27 in. H
• Overall: 28⁵/₈ in. W x 35⁵/₈ in. D x 93 in. H
• 81.4 A, 14.6 kW, 2 HP
• 208 V/60 Hz/1 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ³⁄₄-in. MIP

Product Features

*Free shipping on Jackson TEMPSTAR HH-E VENTLESS (VER) within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, high hood, door-type with ventless & energy recovery, high temperature electric tank heat with built-in 70° F booster, approximately (37) racks/hour, 0.72 gallons of water per rack, multi-cycle timer, field convertible from straight through to corner, stainless steel exterior, electromechanical controls, pressure regulator provided (for installation by others), Sani-Sure™, dishtable not included, cETLus, ETL-Sanitation (Requires Assembly)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
