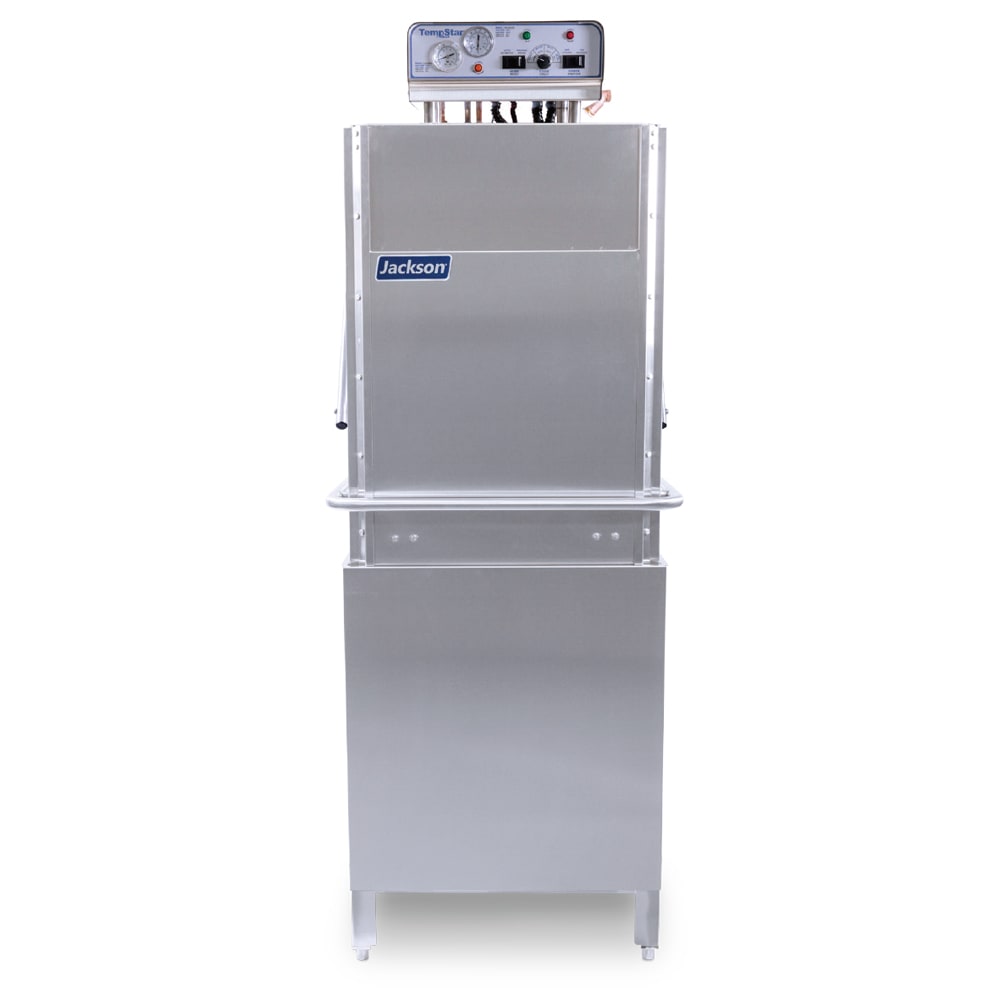

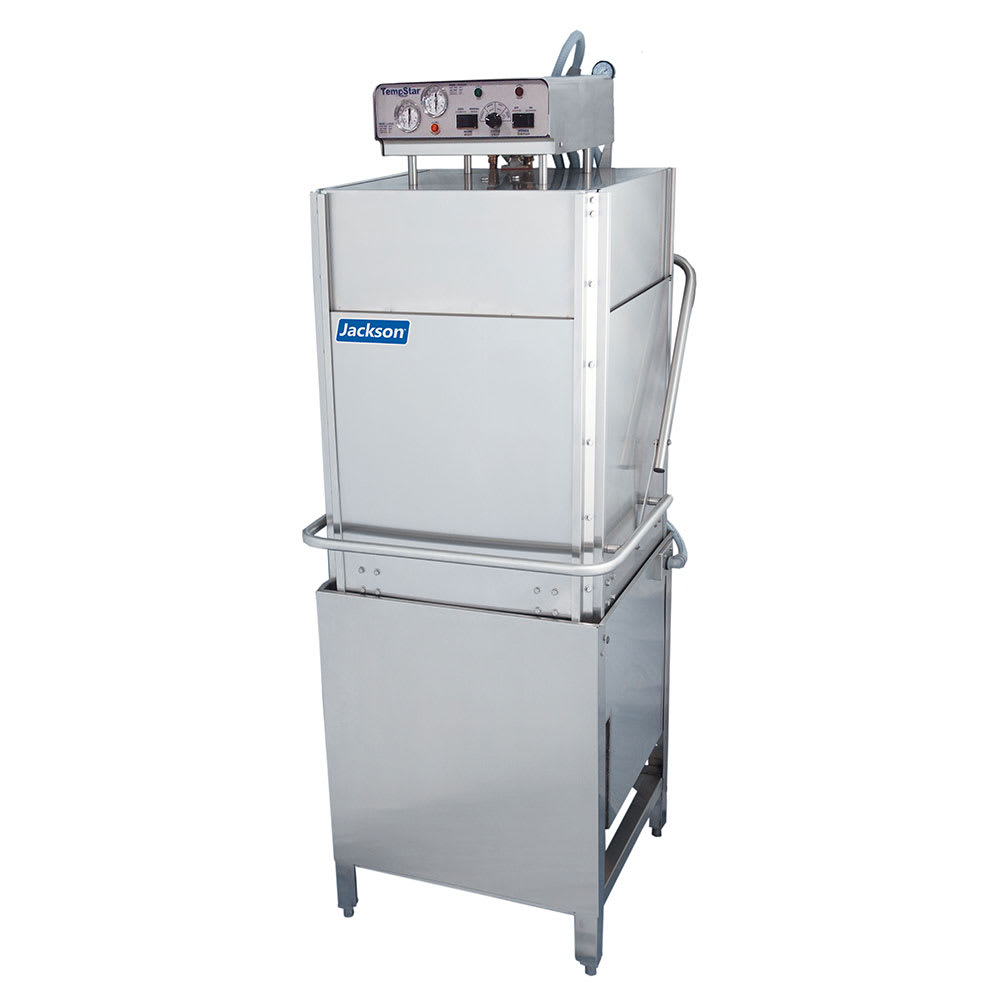

Jackson TEMPSTAR HH-E TempStar® High Temperature Door Type Dishwasher w/ 55 Racks/hr Capacity, Built-in Booster, 230v/3ph

Dual certified as a dishwasher and pot, pan, and utensil washer, the Jackson TEMPSTAR HH-E high-temp, door-type warewasher boasts a 27-inch-tall vertical interior clearance that can accommodate 60-quart mixing bowls and 18-inch by 26-inch sheet pans. This 28⁵⁄₈-inch-wide by 34³⁄₈-inch-deep by 76³⁄₈-inch-high machine can be changed from a straight-through configuration to a corner one with the field conversion kit (sold separately). For simplified installation, it uses a single-point connection, while its split-door design protects low ceilings from damage. To withstand rigorous use in fast-paced kitchens, its stainless steel construction resists wear, rust, and corrosion, and its bullet feet can be adjusted to level on irregular flooring.

The Jackson TEMPSTAR HH-E door-type dishmachine's built-in booster heater raises 110-degree-Fahrenheit inlet water to 155 degrees Fahrenheit for wash cycles and 180 degrees Fahrenheit for rinse cycles. While this unit's high-limit thermostat and low-water protection system streamline operation, its automatic tank fill and auto-start mechanism make it easy to start a new cycle.

To account for varying soil levels, this dishmachine features a multi-cycle timer with four settings: normal (60 seconds), medium (123 seconds), heavy (183 seconds), and extra heavy (303 seconds). A normal cycle can wash 60 racks with 0.72 gallons of water per rack (43.2 gallons of water per hour). Its lower counter-rotating wash arms and upper wash arm evenly spray debris from dishes, while its self-draining stainless steel pump eliminates wash water. To keep catch debris, it features a large scrap basket, while the delime switch can be activated to prevent limescale build-up.

Product Details

• Replaces TEMPSTAR HH
• High-temp sanitization unit
• Built-in booster heater raises inlet water 70 degrees F
• Sani-Sure final-rinse system ensures rinse water is 180 degrees F
• Washes 60 racks per hour (55 racks with suggested NSF load time)
• Uses 0.72 gal. of water per rack (43.2 gal. of water per hour)
• 8-gal. wash tank
• 3-gal. booster tank
• Multi-cycle timer (normal, medium, heavy, and extra-heavy cycle options)
• Automatic tank fill
• Auto-start mechanism
• Delime, manual-wash, and door switches
• High-limit thermostat and low water protection
• Upper wash arm and lower counter-rotating wash arms
• Self-draining stainless steel pump eliminates wash water
• Vent fan control turns off during idle periods
• Low-watt-density electric wash tank heater
• 2-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket catches waste

Construction

• High hood
• Accommodates 60-qt. mixing bowls and 18-in. x 26-in. sheet pans
• Resilient, easy-to-clean stainless steel construction
• Split-door design
• Front dress panel conceals interior components
• Adjustable bullet feet
• Single-point connection
• Field convertible from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 110 degrees F
• Flow pressure: 10 PSI
• 4-in. wall clearance
• Minimum ceiling height: 88 in.

Dimensions & Utilities

• Opening: 20³⁄₄ in. W x 27 in. H
• Overall: 28⁵⁄₈ in. W x 34³⁄₈ in. D x 76³⁄₈ in. H
• 56 A, 17.9 kW, 2 HP
• 230 V/60 Hz/3 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

Product Features

*Free shipping on Jackson TEMPSTAR HH-E within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, Door Type, high hood, high temperature electric tank heat with built-in 70° rise booster, universal (straight-thru/corner) type, approximately (55) racks/hour, only 0.72 gallon of water per rack, Sani-Sure™, all stainless steel finish, 2 HP, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
