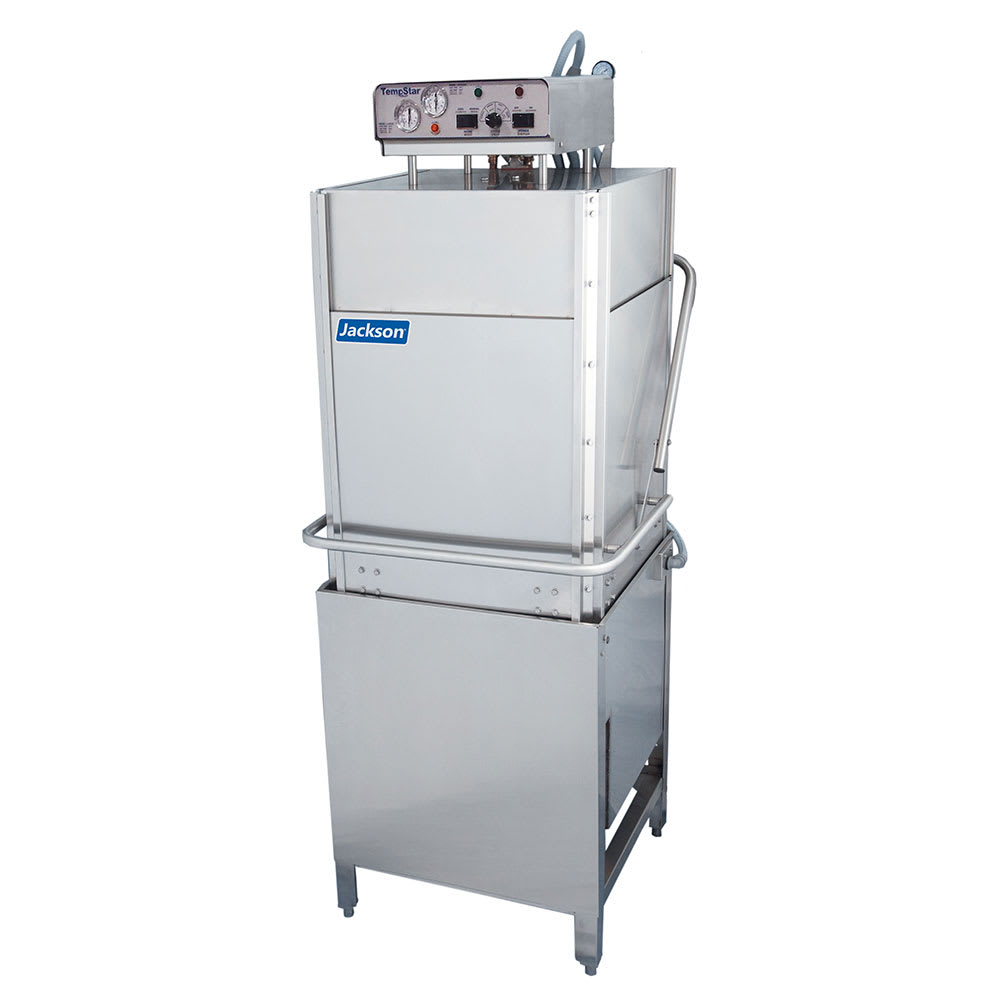

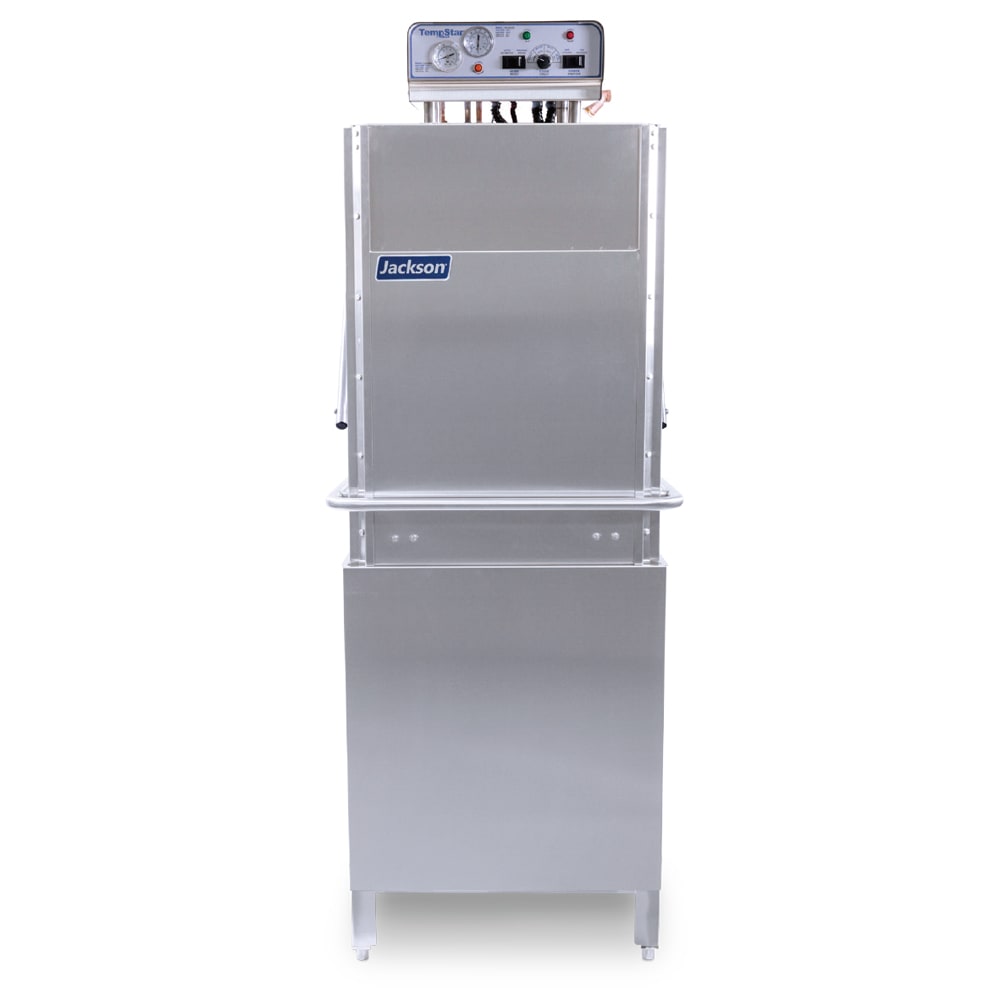

Jackson TEMPSTAR HH-E TempStar® High Temp Door Type Dishwasher w/ 55 Racks/hr Capacity, Built-in Booster, 230v/1ph

For thorough sanitization, the Jackson TEMPSTAR HH-E TempStar® door-type dishwasher includes a built-in booster heater that raises 110-degree-Fahrenheit water to 155 degrees Fahrenheit for wash cycles and 180 degrees Fahrenheit for rinse cycles. To ensure water is 180 degrees Fahrenheit at final rinse, it includes the Sani-Sure™ system. Employees can use the timer to select a normal, medium, heavy, or extra-heavy cycle depending on the soil level. In the normal 60-second cycle, this unit can clean 60 racks per hour using 0.72 gallons of water per rack, making it a practical option for full-service restaurants and coffee shops.

The Jackson TEMPSTAR HH-E high-temp dishmachine's lower counter-rotating wash arms and upper wash arm spray dishes uniformly, boasting superior cleaning action for consistency. For smooth operation, this unit features a high-limit thermostat, low-water protection, and a detergent-/rinse-additive signal connection fuse box. To minimize hands-on tasks, its tanks fills automatically, and users can use the delime cycle to eliminate hard water deposits when necessary. For energy conservation, its vent fan control turns off when the unit is idle.

Because this high-hood dishwasher features a 20³⁄₄-inch-wide by 27-inch-high opening, it accommodates 18-inch by 26-inch sheet pans and 60-quart mixing bowls. To account for low ceilings, its door boasts a split design. Despite its ability to fit large pots, pans, and trays, this 28⁵⁄₈-inch-wide by 34³⁄₈-inch-deep by 76³⁄₈-inch-tall unit has a compact footprint and can be installed as a corner or straight-thru unit with a conversion kit (sold separately). For rust and corrosion resistance, it's made of rigid stainless steel, while its front dress panel protects key internal components from damage. So the unit doesn't wobble during use, operators can adjust its bullet feet to level on irregular surfaces.

Product Details

• Replaces TEMPSTAR HH
• High-temp sanitization system
• Built-in booster heater increases incoming water by 70 degrees F
• Sani-Sure final-rinse system
• Washes 60 racks per hour (55 racks with suggested NSF load time)
• Uses 0.72 gal. of water per rack (43.2 gal. of water per hour)
• 8-gal. wash tank
• 3-gal. booster tank
• Multi-cycle timer with normal, medium, heavy, and extra-heavy options
• Automatic tank fill
• Auto-start mechanism
• Delime, manual-wash, and door switches
• High-limit thermostat
• Low-water protection
• Lower counter-rotating wash arms
• Upper wash arm
• Self-draining stainless steel pump
• Vent fan control with idle shut-off
• Low-watt-density electric wash tank heater
• 2-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket

Construction

• High-hood configuration
• Accommodates large 60-qt. mixing bowls and 18-in. x 26-in. sheet pans
• Rust- and corrosion-resistant stainless steel
• Split-door design for low-ceiling installation
• Front dress panel
• Adjustable bullet feet
• Single-point connection
• Field convertible from straight-through to corner unit (conversion kit sold separately)

Water & Installation Requirements

• Incoming water temperature: 110 degrees F
• Flow pressure: 10 PSI
• 4-in. wall clearance
• Minimum ceiling height: 88 in.

Dimensions & Utilities

• Opening: 20³⁄₄ in. W x 27 in. H
• Overall: 28⁵⁄₈ in. W x 34³⁄₈ in. D x 76³⁄₈ in. H
• 88.9 A, 17.9 kW, 2 HP
• 230 V/60 Hz/1 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

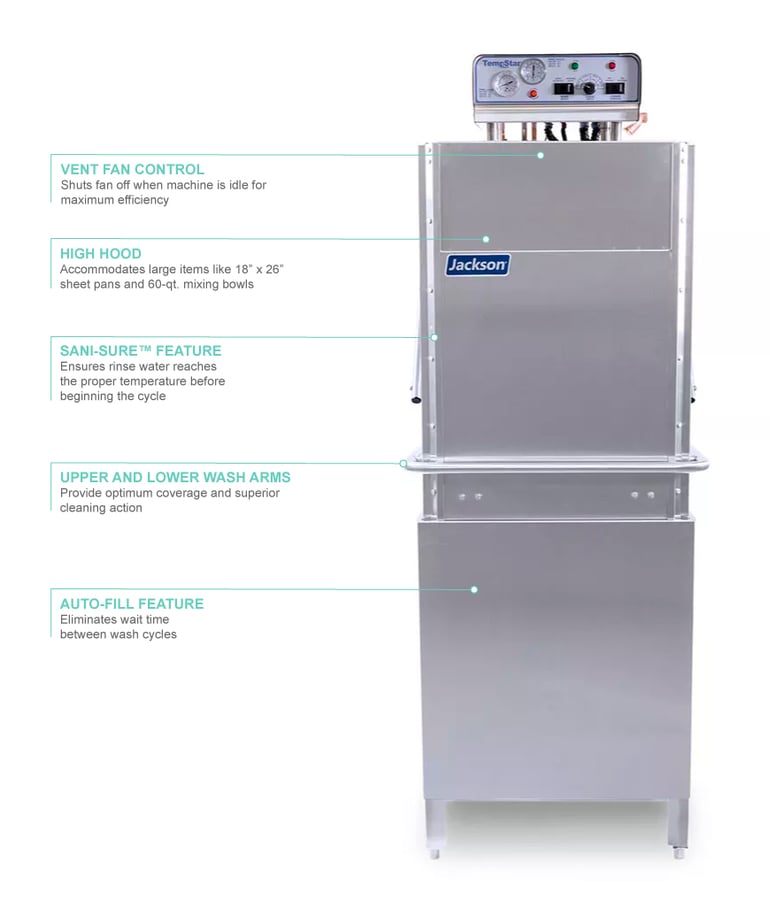

Product Features

*Free shipping on Jackson TEMPSTAR HH-E within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, Door Type, high hood, high temperature electric tank heat with built-in 70° rise booster, universal (straight-thru/corner) type, approximately (55) racks/hour, only 0.72 gallon of water per rack, Sani-Sure™, all stainless steel finish, 2 HP, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
