Jackson TEMPSTAR HH-E TempStar® High Temp Door Type Dishwasher w/ 55 Racks/hr Capacity, Built-in Booster, 208v/1ph

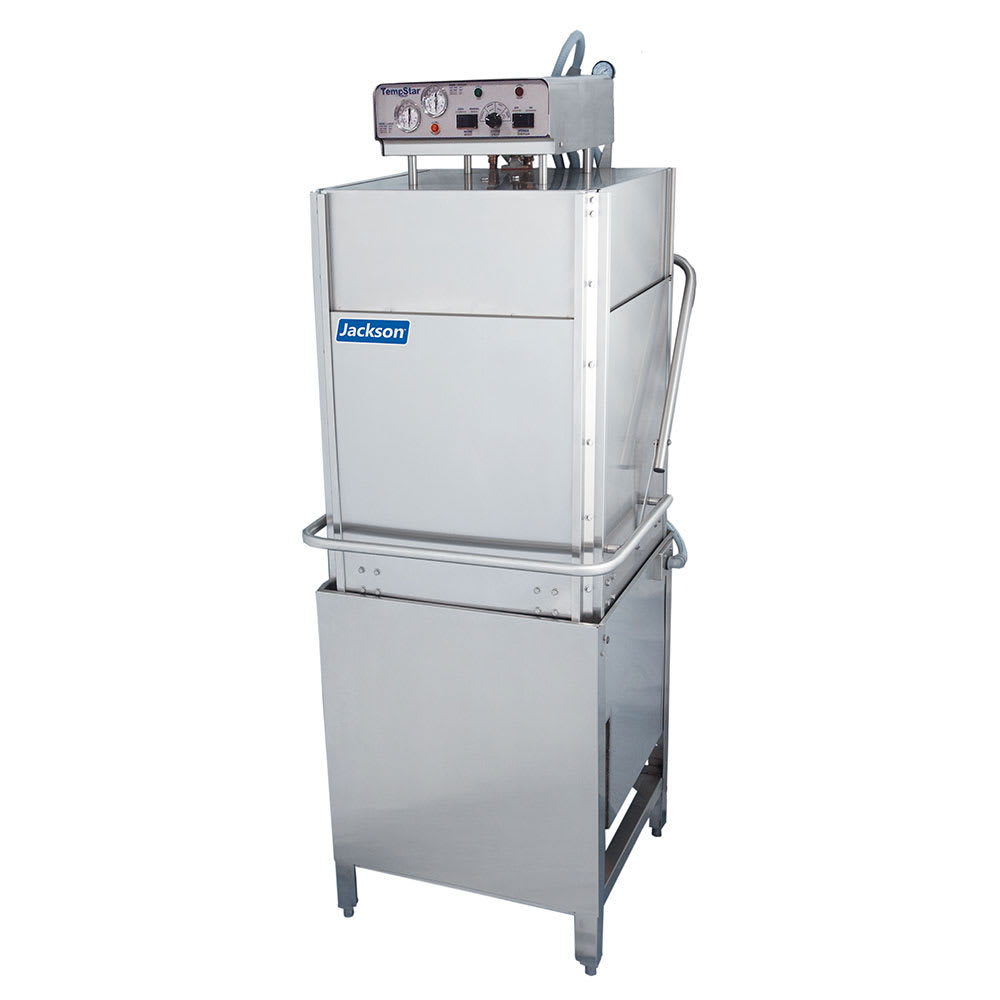

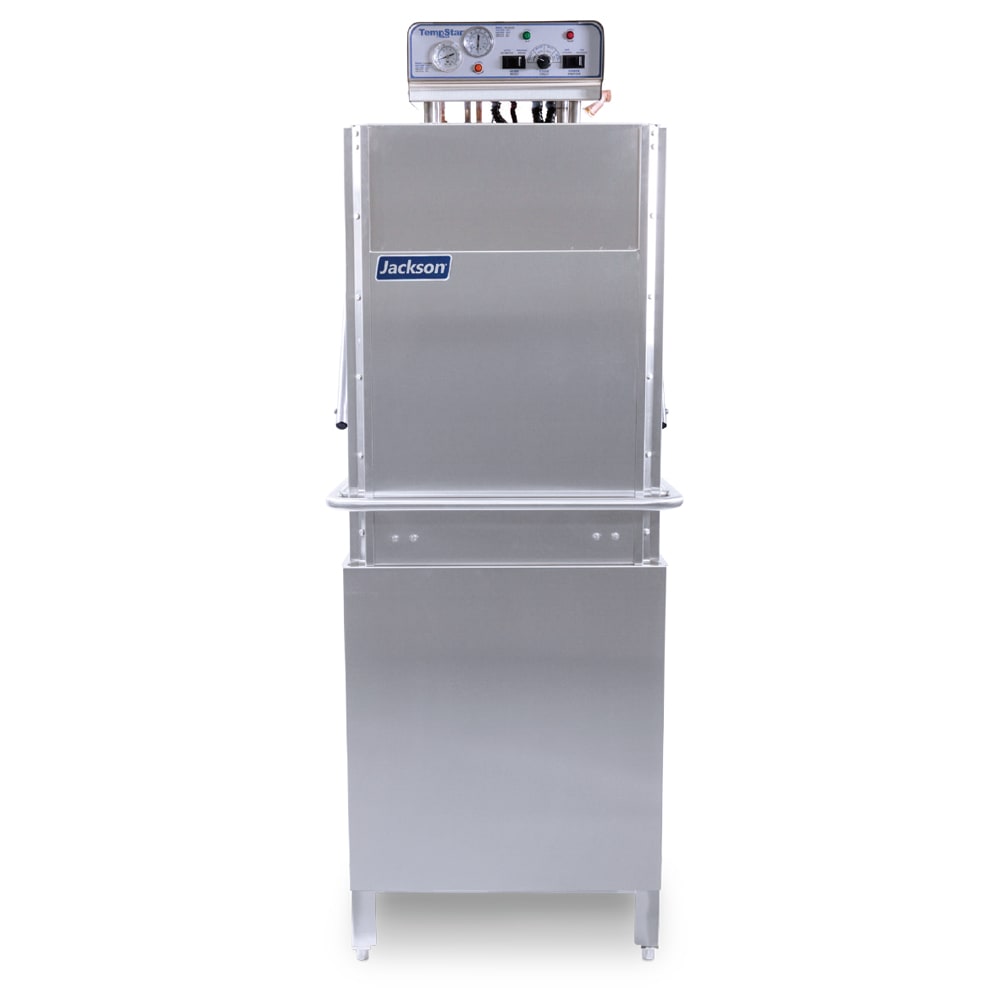

The Jackson TEMPSTAR HH-E commercial dishwasher sanitizes as many as 60 racks per hour and uses 0.72 gallons of water per rack. This door-type model has a high hood and measures 28⁵⁄₈ inches wide by 34³⁄₈ inches deep by 76³⁄₈ inches high overall. For durability and rust resistance, it's constructed of resilient stainless steel. This unit's bullet feet can be adjusted to account for uneven flooring and prevent wobbling during washing.

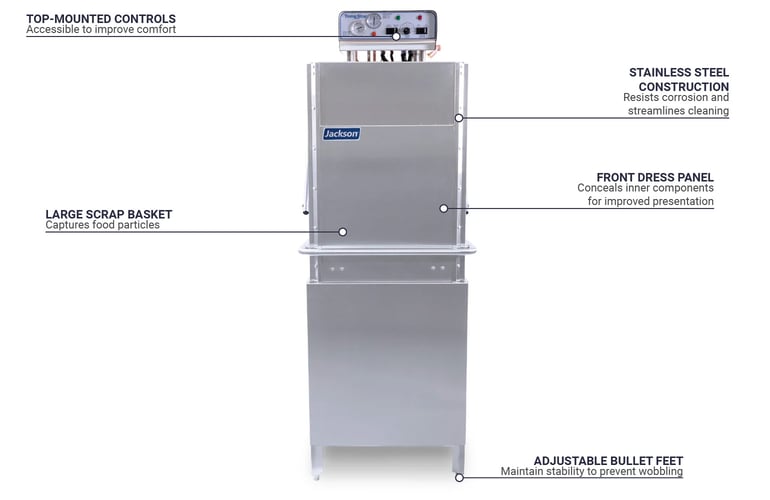

To simplify operation, the Jackson TEMPSTAR HH-E high-temp dishmachine features accessible top-mounted controls, automatic start functions, and an automatic fill tank. Its upper wash arm and lower counter-rotating wash arms promote thorough coverage, while the large scrap basket captures food particles. For various time requirements and soil levels, it features a multi-cycle timer with extra-heavy, heavy, medium, and normal options. This unit is equipped with a built-in booster heater and Sani-Sure™ final rinse system to ensure safe sanitization.

Product Details

• Part of the TempStar® series
• Can wash 60 racks per hour (55 racks with suggested NSF load time)
• Universal, door-type model
• High hood
• 8-gal. wash tank
• 3-gal. booster tank
• Uses 0.72 gal. of water per rack
• Built-in booster heater with Sani-Sure final rinse system
• Automatic tank fill and automatic start
• Vent fan control
• High-limit thermostat and low-water protection
• Stainless steel construction
• Upper wash arm and lower counter-rotating wash arms
• Top-mounted controls
• Door switch
• Front dress panel
• Large scrap basket

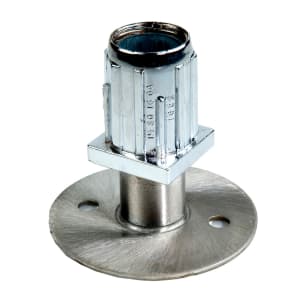

• Adjustable bullet feet
• Delime/manual wash switch
• Self-draining stainless steel pump
• Multi-cycle timer with extra-heavy, heavy, medium, and normal options
• 20³⁄₄-in. x 27-in. door opening accepts 18-in. x 26-in. sheet pans and 60-qt. mixing bowls
• 4-in. minimum wall clearance
• Minimum wash temperature: 155 degrees F
• Minimum rinse temperature: 180 degrees F
• Required incoming flow pressure: 10 PSI
• Required incoming water temperature: 110-114 degrees F

Dimensions & Utilities

• 28⁵⁄₈ in. W x 34³⁄₈ in. D x 76³⁄₈ in. H
• 81.4 A, 10.5 kW, 2 HP
• 208 V/60 Hz/1 ph
• Minimum waterline size: ¹⁄₂ in. IPS
• Minimum drain line size: 1¹⁄₂ in. IPS

Product Features

*Free shipping on Jackson TEMPSTAR HH-E within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, Door Type, high hood, high temperature electric tank heat with built-in 70° rise booster, universal (straight-thru/corner) type, approximately (55) racks/hour, only 0.72 gallon of water per rack, Sani-Sure, all stainless steel finish, cETLus, NSF, ENERGY STAR®, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
