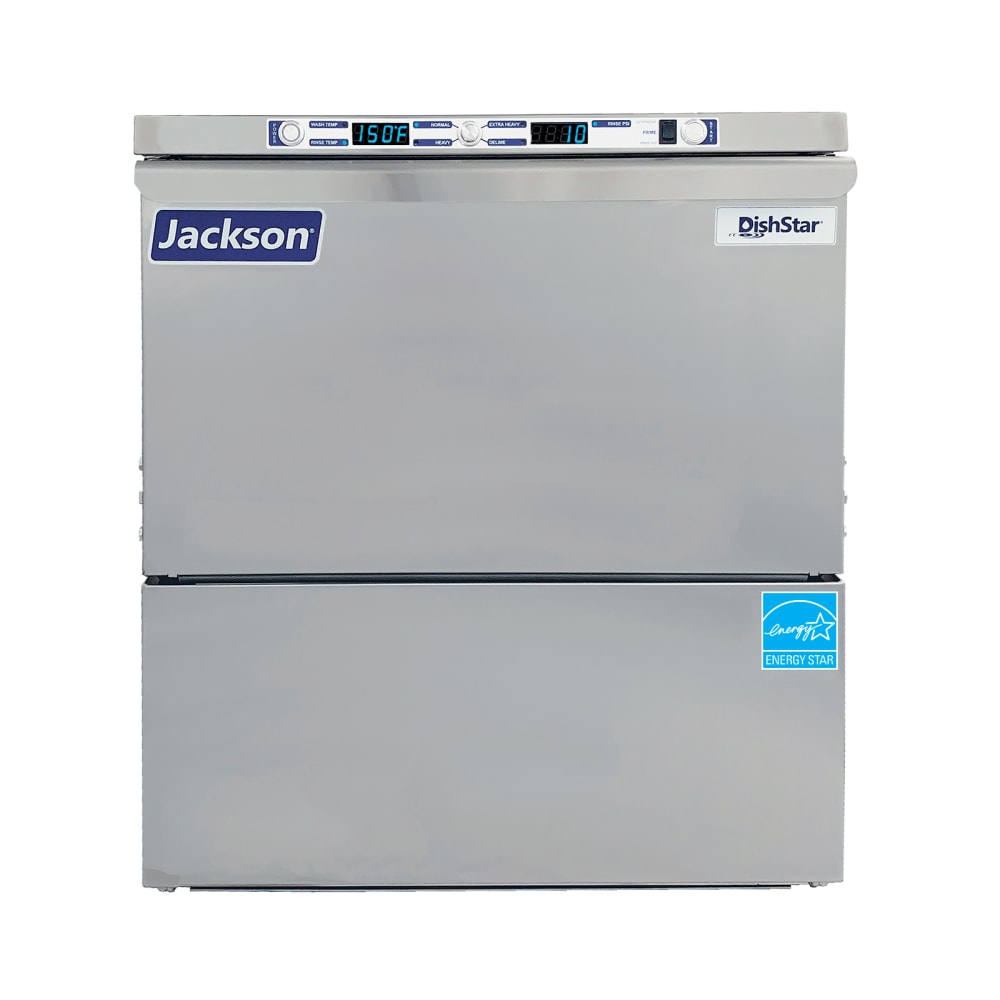

Jackson DISHSTAR ADA-SEER DishStar® High Temp Rack Undercounter Dishwasher w/ 24 Racks/hr Capacity, Built-in Booster, 230v/1ph

To maintain a comfortable, steam-free environment, the Jackson DISHSTAR ADA-SEER warewasher's steam elimination and energy recovery (SEER) mechanism extracts hot water vapor from its chamber, then uses it to heat incoming rinse water. This high-temperature unit includes a built-in booster that raises incoming wash water to at least 155 degrees Fahrenheit, while its Sani-Sure™ feature increases final-rinse water to 180 degrees Fahrenheit for proper sanitization.

For streamlined operation, Jackson DISHSTAR ADA-SEER undercounter dishwasher features bottom-mounted solid-state controls with an LED display that provides a temperature readout and three selectable timed options: Cycle I, Cycle II, and Cycle III. When water pressure and temperature meet requirements, Cycle I can wash 24 racks per hour using 14.4 gallons of water. This glassware-compatible unit includes a soft-start mechanism that reduces chipping and breaking risk, while its recirculating wash design uses the wash tank's water for several cycles for energy efficiency. To remove hard water deposits, staff can initiate the deliming cycle.

To meet ADA requirements, this glasswasher measures 24¹⁄₄ inches wide by 26⁷⁄₈ inches deep by 29³⁄₄ inches tall to fit beneath a 34-inch counter. Its 12-inch interior clearance height accommodates the included peg and combination racks, while its labyrinth-type door-seal design reduces dripping risks for safe operation. This exceptionally durable stainless steel unit resists rust, corrosion, and wear through daily use and features a double-wall cabinet that muffles noise and retains generated heat.

Product Details

• Cycle I washes 24 racks per hour (20 racks per hour with suggested NSF load time)
• Uses 0.60 gal. of water per rack for 14.4 gallons per hour
• 3-gal. wash tank capacity
• 1.66-gal. rinse tank capacity
• High-temperature sanitization
• Can operate with cold water connection
• 70-degree-F built-in booster heater
• Sani-Sure system for rinse water
• SEER mechanism eliminates steam and saves energy
• Solid-state controls
• 3 timed operating cycles: Cycle I (145 seconds), Cycle II (213 seconds), and Cycle III (313 seconds)
• Digital LED temperature and operator display
• Automatic tank fill with push-button start
• Energy-saver mode
• Delime cycle
• Onboard service diagnostics
• Soft start minimizes chipping and breaking
• Recirculating wash followed by fresh-water rinse
• Built-in chemical pumps and priming switches
• Automatic pumped drain for floor and wall drain installations
• ³⁄₄-HP stainless steel wash pump motor
• Pressure regulator with water hammer arrestor
• Undercounter configuration
• Fits beneath 34-in. counter for ADA compliance
• Rigid stainless steel construction
• Double-wall cabinet retains heat and reduces noise
• 12-in. inside clearance height
• Stainless steel rear dress panel
• Labyrinth-type door-seal design
• Door switch
• Includes 1 peg rack and 1 combination rack
• Above-water scrap basket
• 2⁷⁄₈-in. drain height
• Required incoming water temperature: 40-90 degrees F
• Minimum wash temperature: 155 degrees F
• Minimum rinse temperature: 180 degrees F
• Required flow pressure: 10 PSI

Dimensions & Utilities

• 24¹⁄₄ in. W x 26⁷⁄₈ in. D x 29³⁄₄ in. H
• 9.2 kW, ³⁄₄ HP
• 208 V/60 Hz/1 ph
• ⁵⁄₈-in. drain connection
• ³⁄₄-in. male GHT incoming water connection
• ¹⁄₄-in. wall clearance required

Product Features

*Free shipping on Jackson DISHSTAR ADA-SEER within the 48 contiguous states.

From The Manufacturer

DishStar® ADA-SEER Dishwasher, undercounter, 24-1/4"W x 26-7/8"D x 29-3/4"H, high temperature sanitizing, ADA-compliant, built-in booster with Sani-Sure™ final rise system, steam elimination & energy recovery system, soft start, approximately (24) racks or (600) dishes/hour, built-in dispensing pumps with automatic prime, delime cycle, digital LED temperature display, solid state controls, auto-fill, push-button start, pressure regulator, automatic pumped drain, water hammer arrestor, includes (1) peg rack & (1) combination rack, stainless steel construction, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
