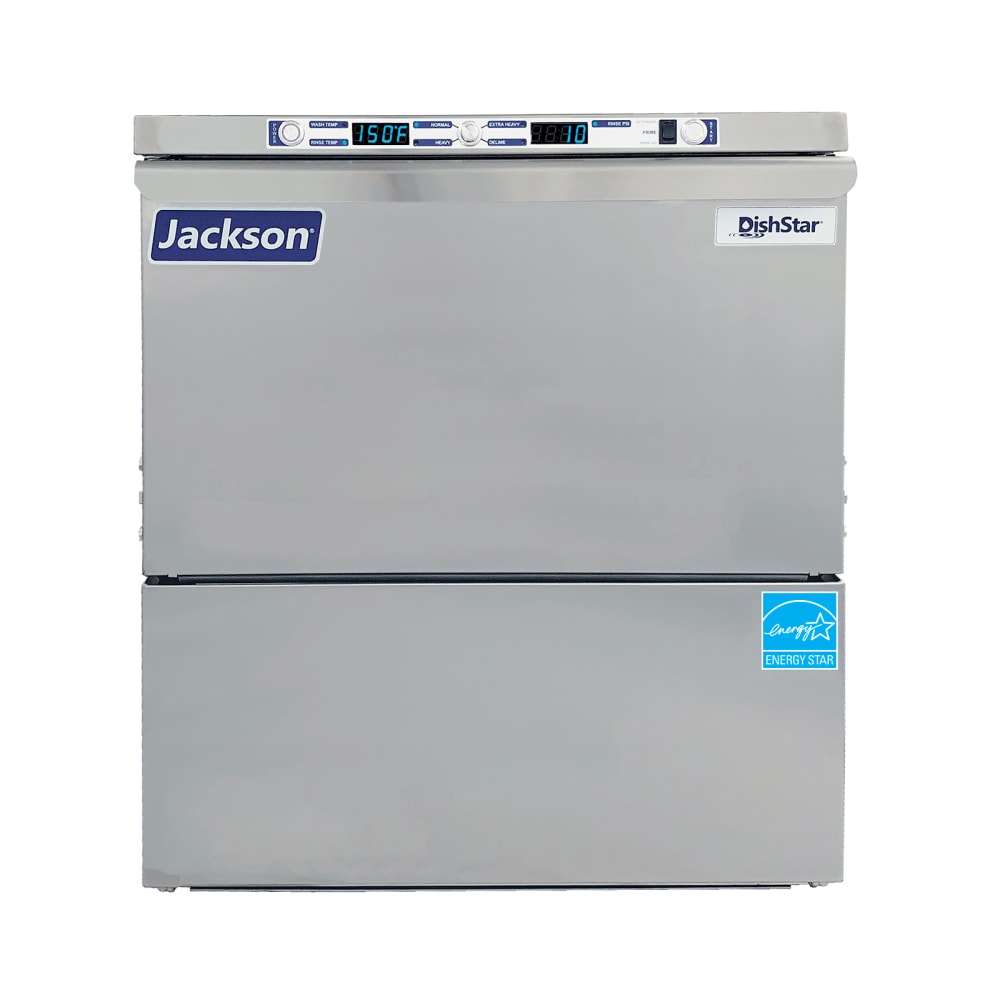

Jackson DISHSTAR ADA-SEER DishStar® High Temp Rack Undercounter Dishwasher w/ 24 Racks/hr Capacity, Built-in Booster, 208v/1ph

Because it fits beneath 34-inch countertops, the Jackson DISHSTAR ADA-SEER high-temperature dishwasher is ADA compliant. This 24¹⁄₄-inch-wide by 26⁷⁄₈-inch-deep by 29³⁄₄-inch-tall unit boasts a 12-inch clearance height and labyrinth-type door-seal design that minimizes dripping during cycles. Its double-wall cabinet reduces noise to accommodate quiet settings, while its heat-retaining structure conserves energy. Made of resilient stainless steel that resists rust and corrosion, this dishmachine withstands rigorous use in fast-paced kitchens. A peg rack and combination rack are included to accommodate dishes and glassware.

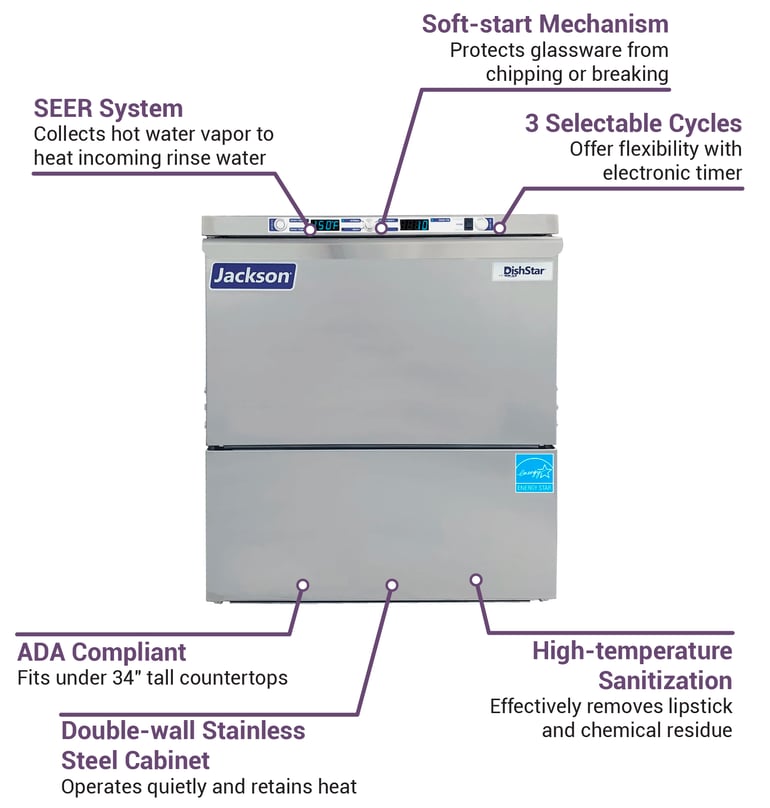

The Jackson DISHSTAR ADA-SEER dishmachine uses a steam elimination and energy recovery (SEER) system to collect hot water vapor from previous cycles to preheat incoming rinse water. This energy-saving mechanism minimizes steam that otherwise could raise ambient temperatures and create an uncomfortable kitchen environment. Because its built-in booster heater and Sani-Sure™ mechanism raise incoming water to appropriate wash and rinse temperatures, this unit can operate with a cold water system.

Using the solid-state controls, staff can select Cycle I, Cycle II, or Cycle III timed cycles to accommodate normal, medium, and heavy-duty loads. With a 145-second cycle using 0.60 gallons of water, Cycle I can wash 24 racks per hour, which leads to 14.4 gallons of water used per hour. To protect glasses from damage, the washing cycle starts up softly. Its wash design uses a fresh-water rinse, while its above-water scrap basket accumulates food debris for streamlined cleanup and removal.

Product Details

• Washes 24 racks per hour in Cycle I (20 racks per hour with suggested NSF load time)
• Uses 0.60 gal. of water per rack
• 3-gal. wash tank capacity
• 1.66-gal. rinse tank capacity
• 3 timed operating cycles: Cycle I (145 seconds), Cycle II (213 seconds), and Cycle III (313 seconds)
• High-temperature sanitization design
• SEER mechanism uses hot water vapor generated inside unit to preheat incoming rinse water
• Operates with cold water connection
• 70-degree-F built-in booster heater
• Sani-Sure system for rinse water
• Solid-state controls with digital LED temperature and operator display
• Automatic tank fill with push-button start
• Energy-saver mode
• Delime cycle
• Onboard service diagnostics
• Soft-start mechanism protects glassware from chipping or breaking
• Recirculating wash design with fresh-water rinse
• Built-in chemical pumps and priming switches
• Automatic pumped drain for floor and wall drain installations
• ³⁄₄-HP stainless steel wash pump
• Pressure regulator with water hammer arrestor
• ADA-compliant undercounter design
• Rust-, and corrosion-resistant stainless steel construction
• Double-wall cabinet retains heat and minimizes noise
• 12-in. inside clearance height
• Stainless steel rear dress panel
• Labyrinth-type door-seal design minimizes dripping
• Door switch
• 1 peg and 1 combination rack included
• Above-water scrap basket
• 2⁷⁄₈-in. drain height
• Required incoming water temperature: 40-90 degrees F
• Minimum wash temperature: 155 degrees F
• Minimum rinse temperature: 180 degrees F
• Required flow pressure: 10 PSI
• ¹⁄₄-in. wall clearance

Dimensions & Utilities

• 24¹⁄₄ in. W x 26⁷⁄₈ in. D x 29³⁄₄ in. H
• 7.4 kW, ³⁄₄ HP
• 208 V/60 Hz/1 ph
• ⁵⁄₈-in. drain connection
• ³⁄₄-in. male GHT incoming water connection

Product Features

*Free shipping on Jackson DISHSTAR ADA-SEER within the 48 contiguous states.

From The Manufacturer

DishStar® ADA-SEER Dishwasher, undercounter, 24-1/4"W x 26-7/8"D x 29-3/4"H, high temperature sanitizing, ADA-compliant, built-in booster with Sani-Sure™ final rise system, steam elimination & energy recovery system, soft start, approximately (24) racks or (600) dishes/hour, built-in dispensing pumps with automatic prime, delime cycle, digital LED temperature display, solid state controls, auto-fill, push-button start, pressure regulator, automatic pumped drain, water hammer arrestor, includes (1) peg rack & (1) combination rack, stainless steel construction, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
