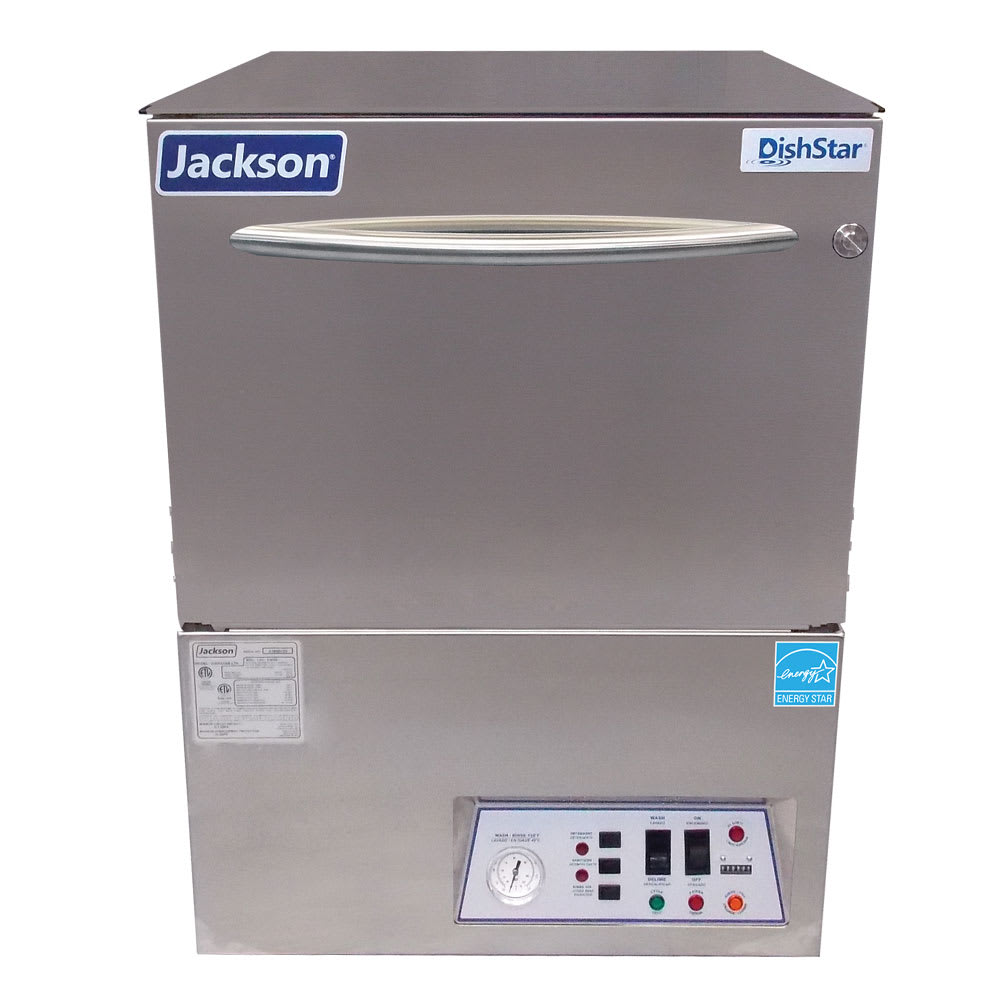

Jackson DISHSTAR LTH DishStar® Low Temp Rack Undercounter Dishwasher w/ 24 Racks/hr Capacity, 115v

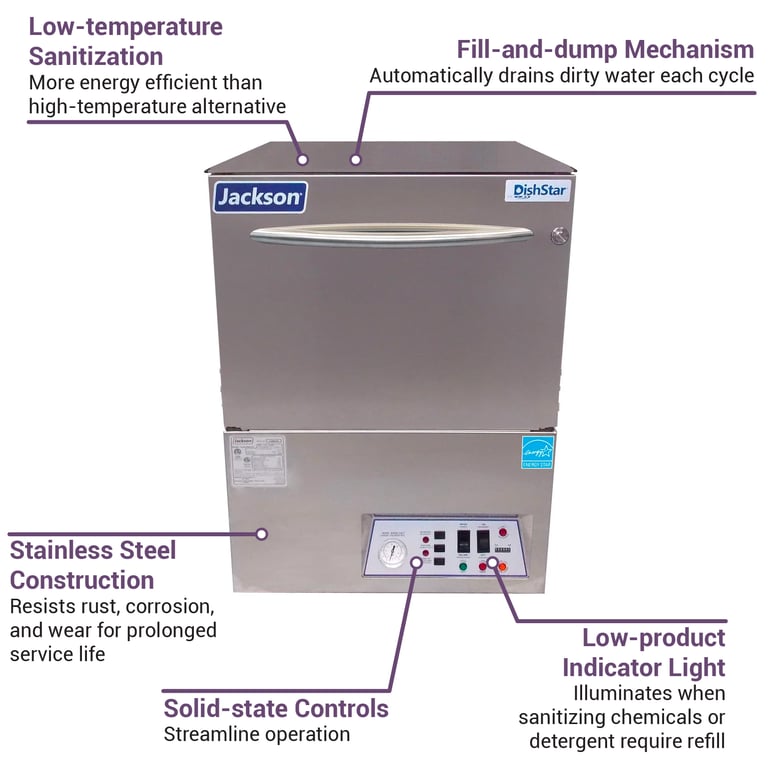

For low-volume needs, this Jackson DISHSTAR LT-H DishStar® undercounter dishmachine washes 30 racks per hour with 34.8 gallons of water. Each automatic cycle is 2 minutes and uses 1.16 gallons of water per rack. Its low-temperature sanitization system features a built-in sustaining heater and uses chemicals to ensure glasses and dishes are thoroughly sanitized. Built-in chemical pumps and priming switches deliver the appropriate amount of detergent and chemicals. When chemical and detergent levels are low, an indicator light notifies employees it's time to refill these products. This unit's fill-and-dump design drains wash water and refills it with fresh rinse water, while its tank fills automatically to reduce manual tasks.

The Jackson DISHSTAR LT-H low-temperature warewasher measures 24¹⁄₄ inches wide by 25 inches deep by 33⁵⁄₁₆ inches tall with a 20-inch-inch-deep by 14¹⁄₄-inch-tall clearance. To accommodate various dishes and glassware, it includes a peg rack and combination rack. Its rigid, rust- and corrosion-resistant stainless steel construction withstands the daily rigors of high-traffic kitchens and is built with a labyrinth-style door. For streamlined cleaning, an above-water scrap basket collects food debris, while the base-mounted solid-state controls include a push-button start and deliming cycle.

Product Details

• Cleans 30 racks per hour (24 racks per hour with suggested NSF load time)
• 1.6 gal. of water used per rack (34.8 gal. per hour)
• 2-minute automatic cycle
• Low-temperature chemical sanitization
• Built-in sustaining heater
• Built-in chemical pumps and priming switches
• Low-product indicator light for detergent and sanitizing chemicals
• Solid-state, base-mounted controls
• Push-button start
• Deliming cycle
• Automatic tank fill
• Automatic pumped drain for floor and wall drain installations
• Fill-and-dump mechanism
• Stainless steel wash/rinse pump
• 1-HP wash pump motor
• Undercounter configuration
• Rugged stainless steel construction
• Air insulated between body and stainless steel housing
• Labyrinth-type door
• Door switch
• Includes 1 peg rack and 1 combination rack
• Above-water scrap basket
• Required incoming water temperature: 120 degrees F
• Operating wash and rinse temperatures: 120 degrees F
• Required flow pressure: 15-25 PSI
• ¹⁄₄-in. wall clearance

Dimensions & Utilities

• Interior clearance: 20 in. W x 20 in. D x 14¹⁄₄ in. H
• Overall: 24¹⁄₄ in. W x 25 in. D x 33⁵⁄₁₆ in. H
• 10 A, 1 HP
• 115 V/60 Hz/1 ph
• 1-in. drain-line size
• ³⁄₄-in. male GHT incoming water connection

Product Features

*Free shipping on Jackson DISHSTAR LTH within the 48 contiguous states.

From The Manufacturer

DishStar® Dishwasher, undercounter, with built-in sustaining heater, 24-1/4"W, low temperature chemical sanitizing, approximately (24) racks/hour, (1.2) gals of water per rack, universal timer, delime cycle, built in chemical pumps, auto fill, stainless steel wash/rinse pump, cabinet finished in stainless steel, 1 HP wash pump, 115v/60/1-ph, 10.0 amps, ENERGY STAR®, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
