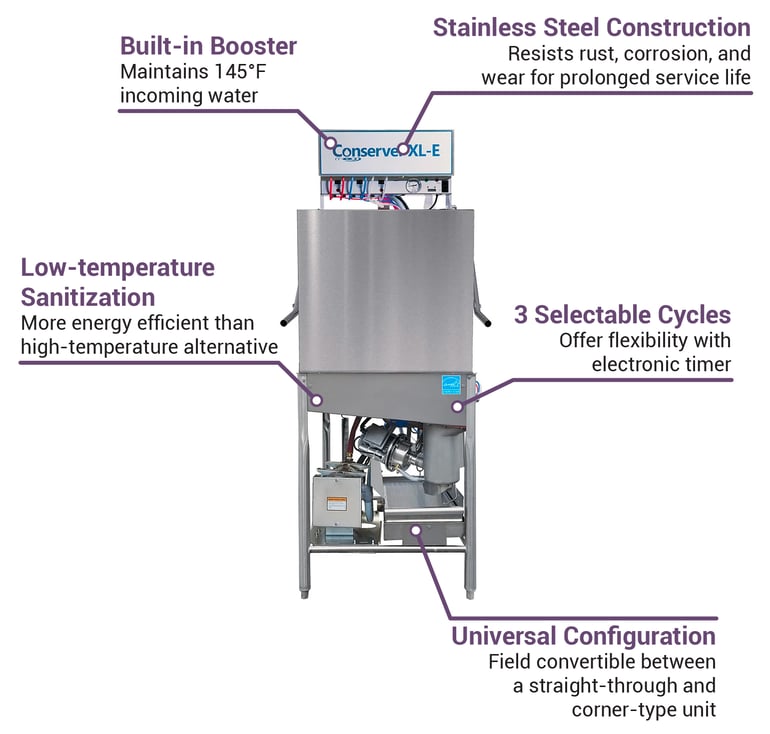

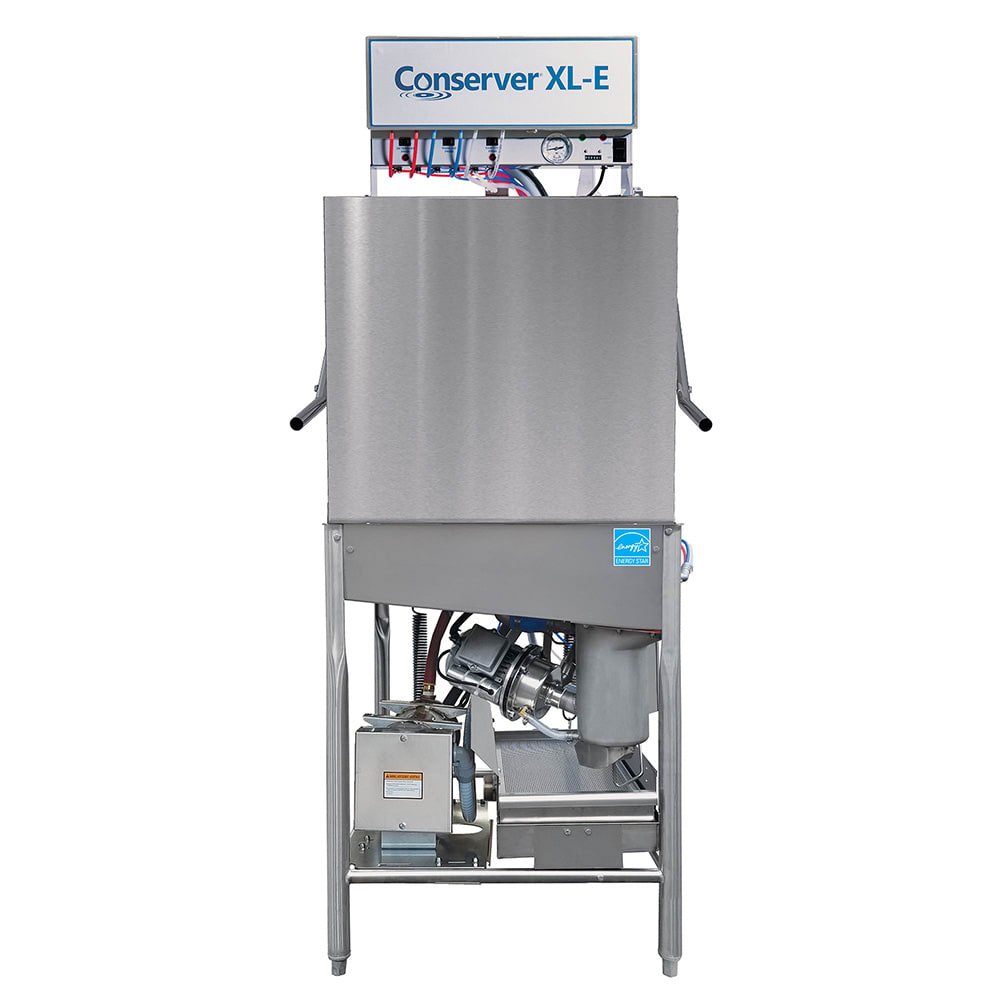

Jackson CONSERVER XL-E-LTH Conserver® Low Temp Door Type Dishwasher w/ 39 Racks/hr Capacity, Built-in Booster, 208v/1ph

To maintain 145-degree-Fahrenheit incoming water, the Jackson CONSERVER XL-E-LTH Conserver® door-type dishwasher includes a built-in booster heater compatible with 110-degree-Fahrenheit water. This unit can wash 41 racks per hour in a normal cycle when water temperature and pressure meet requirements, using 1.02 gallons of water per rack. This low-temperature unit requires chemical sanitization to clean dishes properly, and its low-chemical indicator light illuminates when chemicals need to be replenished. For flexibility, operators can choose from an 87-second normal cycle, 145-second medium cycle, or 325-second heavy cycle, and convenient top-mounted controls streamline operation.

The Jackson CONSERVER XL-E-LTH low-temperature dishmachine includes interchangeable upper and lower stainless steel wash and rinse arms that endure consecutive use. Its internal sump, waste accumulator, and removable scrap screen collect debris to maintain a clean system. The self-draining stainless steel pump helps prevent detergent and soil from carrying over from the wash to the rinse cycle, while its fill-and-dump mechanism adds fresh water each cycle. To eliminate hard water deposits that can affect results, users can flip on the delimer switch.

Operators can load large pots, pans, trays, and mixing bowls into this door-type warewasher with its 17¹⁄₄-inch vertical interior clearance. Its universal 30³⁄₈-inch-wide by 29¹⁄₂-inch-deep by 68¹⁄₂-inch-high design can be field converted from a straight to corner unit and vice versa depending on the kitchen requirements, though the kit for this alteration is sold separately. To endure frequent use in high-traffic kitchens, its durable stainless steel construction resists wear, rust, and corrosion and can be wiped clean. Operators can adjust its bullet feet to stabilize on irregular flooring to avoid wobbling during washing and rinsing cycles.

Product Details

• 41 racks per hour in a normal cycle (39 racks per hour with suggested NSF load time)
• 1.02 gal. of water per rack
• 3 timed operating cycles: normal (87 seconds), medium (145 seconds), and heavy (325 seconds)
• Low-temperature chemical sanitization
• 3 built-in chemical pumps and priming switches
• Built-in booster heater ensures incoming water is 145 degrees F
• Door-type unit
• Convenient top-mounted controls:
• Auto start
• Wash thermometer
• Low-chemical indicator light
• Delimer switch
• Self-draining stainless steel pump
• Fill-and-dump design expels dirty water each cycle
• Internal sump
• Built-in waste accumulator
• Large removable scrap screen
• Interchangeable upper and lower stainless steel wash/rinse arms
• 1-HP wash pump
• Rugged stainless steel construction
• Door switch
• Adjustable bullet feet
• 17¹⁄₄-in. interior clearance
• Field convertible between straight and corner unit (kit sold separately)
• 9³⁄₄-in. drain height
• Minimum incoming water temperature: 110 degrees F
• Recommended water operating temperature: 140 degrees F
• Recommended rinse operating temperature: 145 degrees F
• Recommended flow pressure: 15-25 PSI
• Minimum chlorine required: 50 PPM

Dimensions & Utilities

• 30³⁄₈ in. W x 29¹⁄₂ in. D x 68¹⁄₂ in. H
• 48.3 A, 1 HP
• 208 V/60 Hz/1 ph
• ³⁄₄-in. IPS minimum water-line size
• 2-in. IPS minimum drain-line size

Product Features

*Free shipping on Jackson CONSERVER XL-E-LTH within the 48 contiguous states.

From The Manufacturer

Conserver® Dishwasher, Door Type, 30-3/8"W x 29-1/2"D x 68-1/2"H, low temperature chemical sanitizing, built-in booster heater, 145° rinse water, three selectable timed cycles, universal (straight-thru/corner) type, approximately (39) racks/hour, electronic timer, (3) built-in dispensing pumps, built-in scrap accumulator, removable scrap screen, auto-start, delimer switch, stainless steel construction, adjustable stainless steel bullet feet, 1 HP wash pump, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
