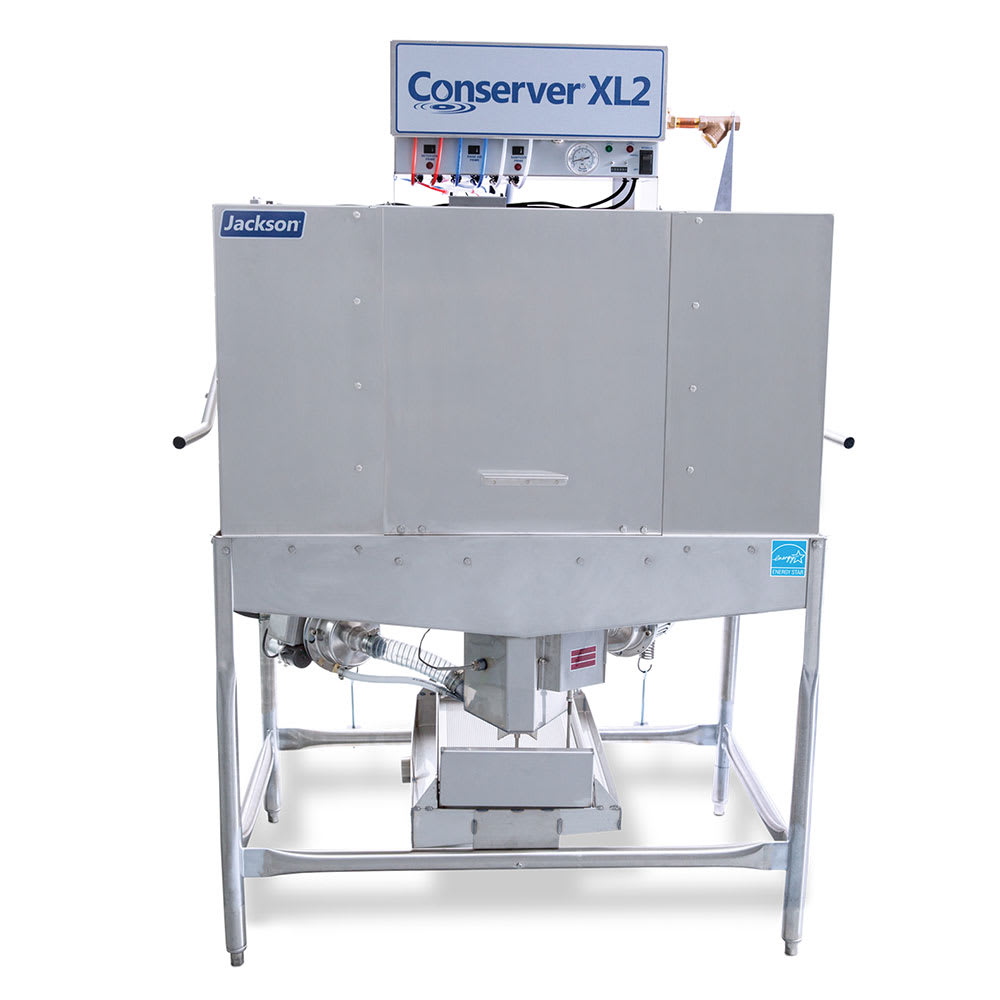

Jackson CONSERVER XL2 Conserver® Low Temp Door Type Dishwasher w/ 74 Racks/hr Capacity, 115v

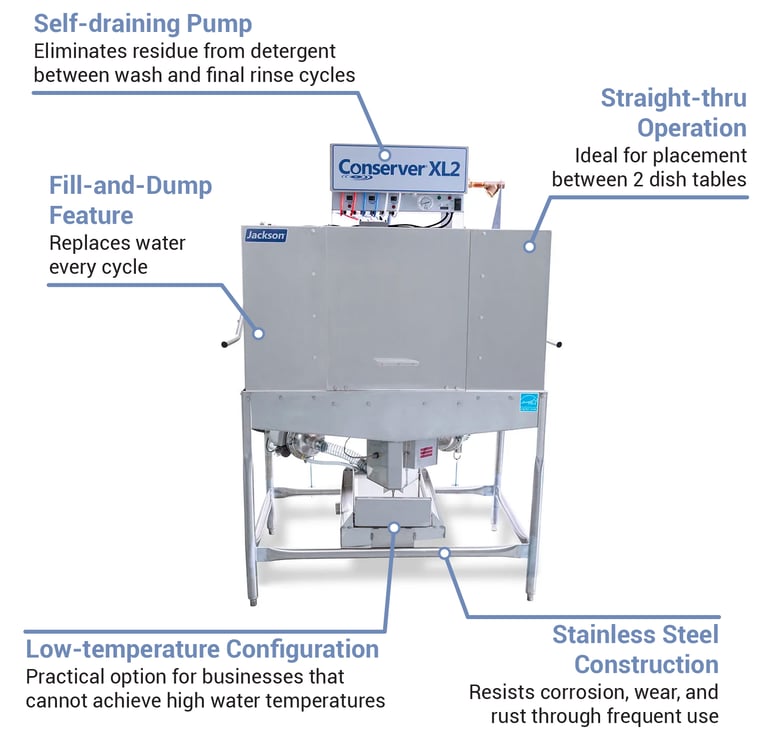

Able to accommodate two racks per load, the Jackson CONSERVER XL2 dishwasher washes as many as 82 racks per hour. Each 87-second cycle uses 1.06 gallons of water, amounting to 87.05 gallons per hour. This low-temperature model is compatible with 140-degree-Fahrenhet incoming water and requires chemical sanitization to ensure proper sanitization. Its fill-and-dump design replaces dirty water with fresh water every rinse cycle, while its self-draining stainless steel pump removes soil and detergent carryover between wash and rinse cycles. The built-in waste accumulator collects debris, while the removable scrap screen simplifies cleaning.

The Jackson CONSERVER XL2 door-type dishmachine boasts a 17¹⁄₄-inch interior clearance for pans, pots, bowls, and large utensils. Its upper and lower wash and rinse arms produce uniform results and can be interchanged as need. Convenient top-mounted controls provide a readable interface so users can quickly gauge its operational status. Employees can track remaining time with the electronic timer and initiate hard water deposit removal with the delimer switch. When sanitizing chemicals are low, indicator lights illuminate to notify operators. For versatile installation, this 50¹⁄₂-inch-wide by 29¹⁄₄-inch-deep by 68¹⁄₂-inch-high stainless steel door-type warewasher features dual-point drain connections and has straight-through operation for placement between two dish tables.

Product Details

• Part of the Conserver® collection
• Sanitizes 82 racks per hour
• Accommodates 2 racks side by side
• 82-second cycle
• Door-type unit
• Low-temperature chemical sanitization
• 3.1-gal. wash tank capacity
• Uses 1.06 gal. of water per rack in each cycle (87.05 gal. per hour)
• 17¹⁄₄-in. interior clearance
• Auto-start mechanism
• Straight-thru operation
• Interchangeable upper and lower stainless steel wash/rinse arms
• 3 built-in chemical dispenser pumps
• Priming switches
• Fill-and-dump design
• Self-draining stainless steel pump
• Built-in waste accumulator
• Removable scrap screen
• Air gap
• Door switch
• Top-mounted controls
• Wash/rinse thermometer
• Electronic timer
• Delimer switch
• Low-chemical indicator lights
• Dual-point drain connections for versatile installation
• Stainless steel construction
• (4) 3-in. adjustable bullet feet
• Recommended wash and rinse operating temperature: 140 degrees F
• Required incoming flow pressure: 15-25 PSI
• Minimum chlorine required: 50 PPM

Dimensions & Utilities

• 50¹⁄₂ in. W x 29¹⁄₄ in. D x 68¹⁄₂ in. H (78 in. when door is open)
• 20 A, 1 HP
• 115 V/60 Hz/1 ph
• Minimum incoming water-line size: ³⁄₄-in. IPS
• Minimum drain-line size: 2-in. IPS

Product Features

Product Features

*Free shipping on Jackson CONSERVER XL2 within the 48 contiguous states.

From The Manufacturer

Conserver® Dishwasher, door type, double rack, 50-1/2"W x 25"D x 68-1/2"H, low temperature chemical sanitizing, straight-thru operation, approximately (74) racks/hour, (3) built-in dispenser pumps, built-in scrap accumulator, removable screen, drain pump, auto-start, stainless steel construction, 3" adjustable stainless steel bullet feet, 1 HP wash pump, cETLus, NSF, ENERGY STAR®, 115v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
