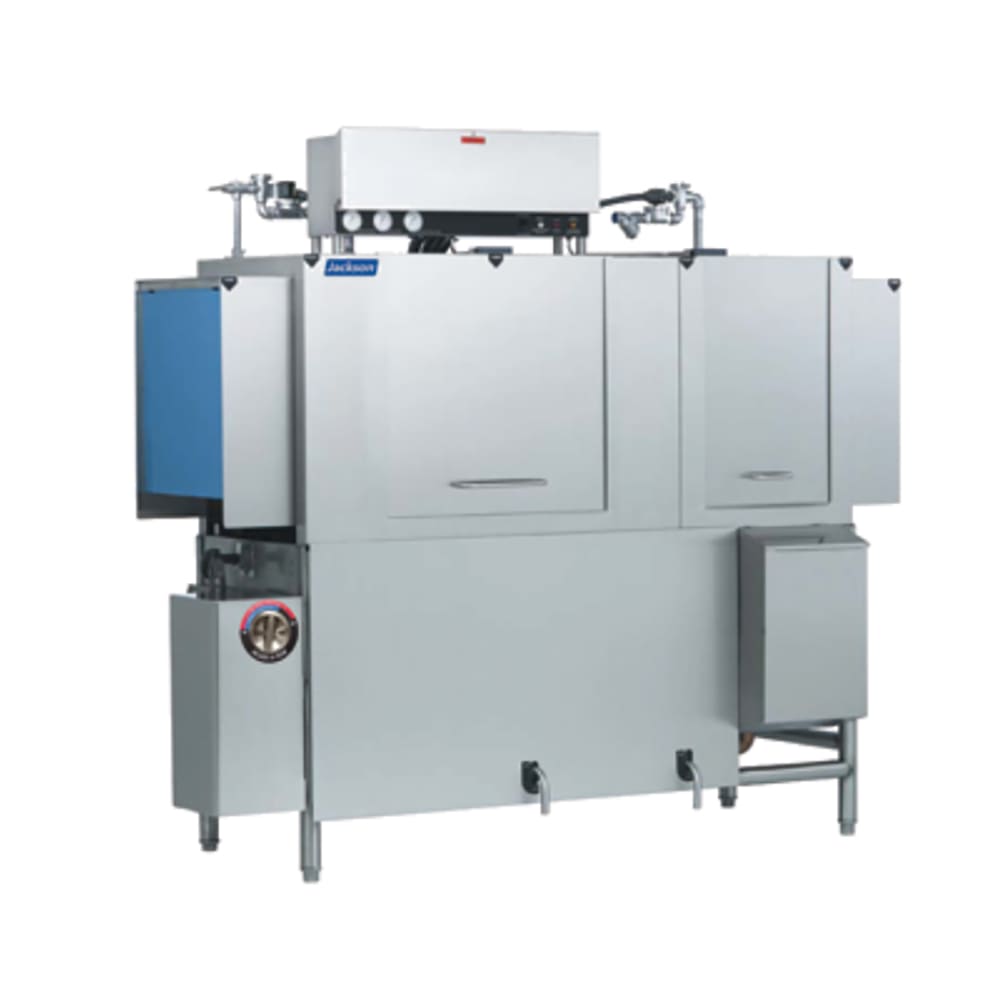

Jackson AJX-66CEL 78" Low Temp Conveyor Dishwasher w/ Electric Tank Heat, 208v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 099-AJX66CEL2083 • MPN: AJX-66CEL 208/3

Ships Free

This item is no longer available

(0 reviews)Write a Review

This product is discontinued.

To see similar options, click here

Product Discontinued

Image may not depict product color, inclusions or accessories.

Jackson AJX-66CEL Description


The Jackson AJX-66CEL conveyor dishwasher is capable of washing as many as 209 racks of dishes an hour. Every step of the washing cycle is automated, including the initial fill, so staff need only to insert racks into the loading end of the machine and retrieve them at the other end when the cycle is complete. This low-temperature machine uses sanitizing chemicals to disinfect dishes during the final rinse cycle, a method that's energy-efficient and effective. 25 inches of vertical clearance allow oversized wares like stock pots and full-size sheet pans to be sent through the conveyor dishwasher.

This dishwasher is designed to operate only when a rack is present in the machine, preventing it from running when it's empty and saving electricity. The Jackson AJX-66CEL is built with electromechanical controls that are easy to operate and service. A long-lasting stainless steel scrap basket and wash pump are built for a long life of service. Splash shields keep water inside the machine where it belongs and away from floors where it could cause a slip hazard. An included front dress panel conceals and protects electronic and mechanical components to keep them from getting damaged in the hustle and bustle of the dishroom.

Product Details

  • Washes as many as 209 racks an hour
  • 25-in. clearance allows washer to accommodate sheet pans, stock pots, mixing bowls, and other large wares
  • EnergyGuard controls reduce energy consumption by running machine only when a rack of dishes is present
  • Each step is fully automated, including the initial fill
  • Reliable electromechanical controls are easy to service and maintain
  • Durable stainless steel wash pump is self-draining
  • Stainless steel scrap baskets
  • Splash shields help keep surrounding environment dry and sanitary
  • Front dress panel conceals and protects electrical components
  • Externally operated drain lever makes it easy to drain water
  • Bullet feet are adjustable to achieve a level installation
  • Frame and legs are made durable stainless steel
  • Exhaust vent fan control for managing steam
  • 18kW wash tank heater raises wash water to 140 degrees Fahrenheit
  • 208 V/60 Hz/3 ph
  • Overall Dimension: 66 in. L x 31 in. D x 7512 in. H (with door closed)
  • ETL Listed and NSF Certified

Dishwasher, Conveyor Type, low temperature chemical sanitizing, single tank design, with 22" recirculating prewash, approximately 209 racks/hour capacity (0.78 gallons per rack), 25" clearance through machine, stainless steel construction, electric tank heat, prewash section has two upper arms, & one lower arm, vent fan control, 208v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Jackson AJX-66CEL Specifications

PDF Spec Sheet
Manufacturer Jackson
Height (in) 96
Racks per Hour 209
Width (in) 40
Length (in) 78
Sanitizing Low Temp
Cavity Height 25
Heat Electric
Door Type Lift Up
Booster Heater Type Electric
Phase 3
Hertz 60
Voltage 208
Weight 894.00
Jackson AJX-66CEL Certifications
  • NSF
  • ETL
