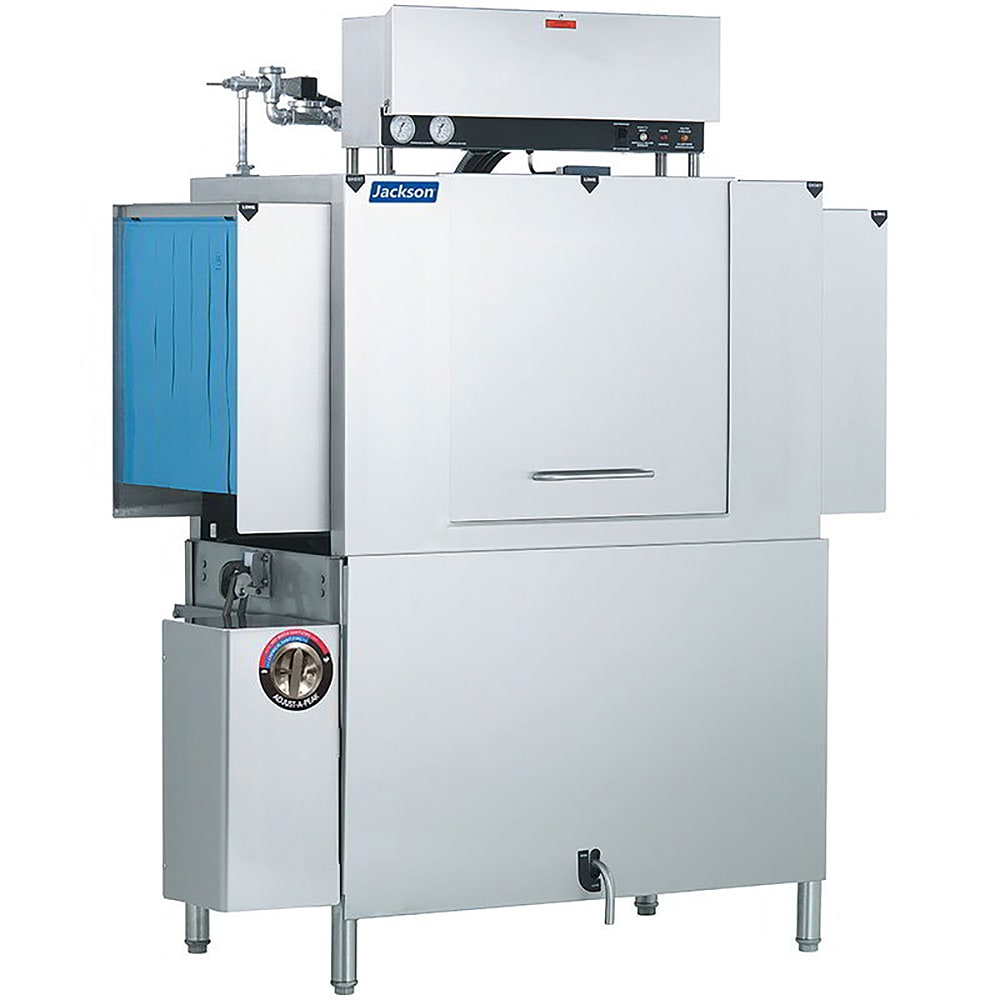

Jackson AJX-44CE High Temp Conveyor Dishwasher - 225 Racks Per Hour, 208v/1ph

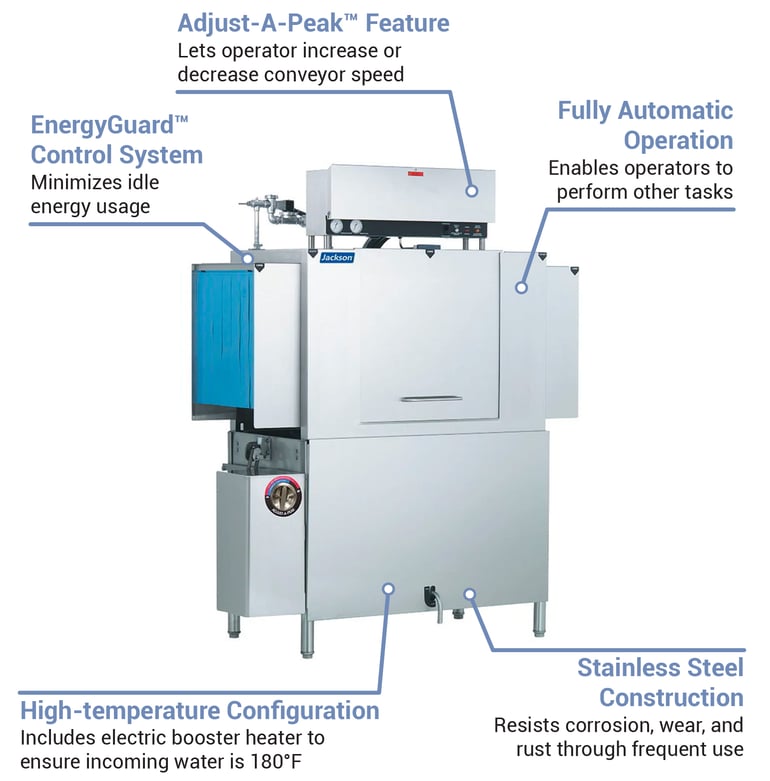

Because it's a high-temperature model, the Jackson AJX-44CE conveyor dishmachine cleans 225 racks per hour and uses 0.68 gallons of water per rack—153 gallons per hour. Electric tank heat ensures incoming water temperatures are raised to 180 degrees Fahrenheit to sanitize dishes, and operators can choose between a 40-degree-Fahrenheit or 70-degree-Fahrenheit booster heater to ensures water temperatures reach the necessary levels; booster heaters are sold separately. This fully automatic unit features an EnergyGuard™ control system that only keeps the unit on when a rack is being washed or rinsed to conserve energy. A ¹⁄₄-horsepower motor drives the conveyor system, and users can modify conveyor speed with the Adjust-A-Peak™ feature to maximize output or thoroughly remove baked-on grime.

This Jackson AJX-44CE single-tank dishwasher measures 62 inches wide by 25 inches deep by 75¹⁄₂ inches tall and boasts a 25-inch clearance throughout the conveyor for large pots, pans, trays, and mixing bowls. To optimize cleaning and rinsing, the wash and rinse sections are 18 inches apart, while stainless steel scrap baskets collect food debris. Splash shields integrated on both ends of the machine protect the exterior and floor from water. This stainless steel unit resists rust, corrosion, and wear to prolong its service life in high-traffic settings, and its front dress panel conceals key internal components to protect them from water damage. To prevent wobbling or rocking during use, its bullet feet can be adjusted to stabilize on irregular flooring.

Product Details

• Clean 225 racks per hour
• Conveyor-type unit with single tank
• Wash tank capacity: 21 gal.
• 0.68 gal. of water used per rack (153 gal. per hour)
• Fully automatic operation
• High-temperature sanitizing
• ¹⁄₄-HP conveyor motor
• Electromechanical controls
• EnergyGuard controls
• Adjust-A-Peak feature for conveyor speed adjustment
• Rust- and corrosion-resistant stainless steel frame and legs
• 25-in. clearance for large pots, pans, trays, and mixing bowls
• 18-in. wash section
• 18-in. separation between wash and rinse sections
• Front dress panel protects internal components
• Self-draining stainless steel wash pump
• Stainless steel scrap baskets collect debris
• Splash shields
• Externally operated drain lever
• Exhaust vent fan control
• 18-kW wash tank heater
• Adjustable bullet feet
• Minimum wash operating temperature: 160 degrees F
• Minimum rinse operating temperature: 180 degrees F
• Required incoming flow pressure: 15 PSI
• Minimum flow rate: 2.6 GPM
• Minimum wall clearance: 4¹/₂ in.

Dimensions & Utilities

• 62 in. W x 25 in. D x 75¹⁄₂ in. H
• 97 A, ¹⁄₄ HP
• 208 V/60 Hz/1 ph
• Minimum incoming water-line size: ¹⁄₂-in. IPS
• Minimum drain-line size: 1¹⁄₂-in. IPS

Product Features

From The Manufacturer

Dishwasher, Conveyor Type, high temperature sanitizing, single tank design, adjustable conveyor speed, approximately 225 racks/hour capacity (0.68 gallons per rack), 25" clearance through machine, stainless steel construction, electric tank heat, vent fan control, NSF, cULus, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
