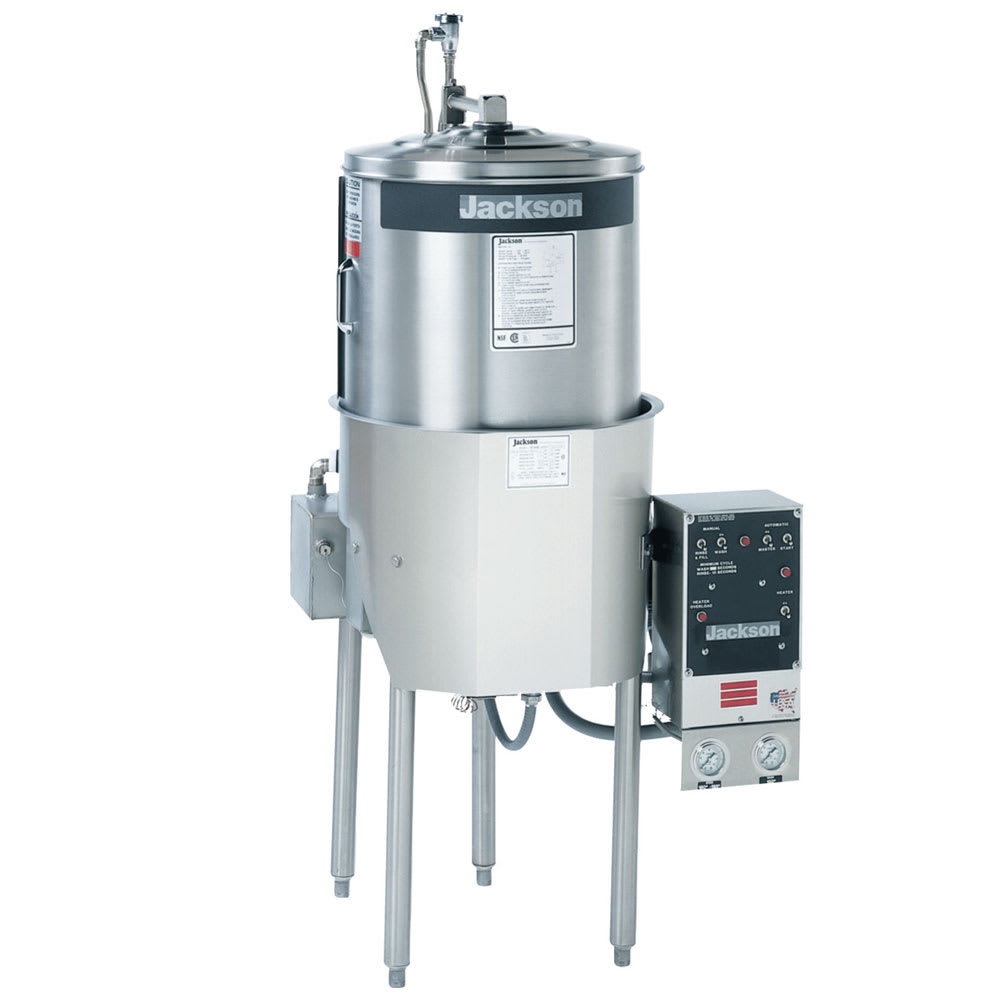

Jackson 10AB High Temp Round Dishwasher w/ 45 Racks/hr Capacity, Built-in Booster, 208v/1ph

For kitchens with incoming water 140 degrees Fahrenheit or higher, the Jackson 10AB Model 10 dishmachine includes a thermostatically controlled built-in booster heater that can raise incoming water 40 to 50 degrees Fahrenheit to ensure the 180 degrees Fahrenheit needed for thorough sanitization. Its electric wash tank accommodates 4.5 gallons and includes low-water protection to prevent damage. Great for quick-service restaurants, coffee shops, and restaurants with fewer than 50 seats, this warewasher can sanitize 45 racks per hour, using 1.29 gallons of water per rack for each fully automatic 72-second cycle.

The Jackson 10ABhigh-temperature dishwasher's counter-rotating wash arms thoroughly clean dishes, while its circular structure evenly distributes wash action for uniform results. To accommodate various types of dishware, three 17¹⁄₂-inch-diameter racks—one dish rack, one combination rack, and a four-compartment silverware rack—come with this unit. Large pans, pots, trays, and bowls can fit inside its 17¹⁄₄-inch-tall chamber clearance, and this 27¹⁄₂-inch-wide by 24¹⁄₄-inch-deep by 58¹⁄₄-inch-high unit's heavy-duty stainless steel construction resists rust, corrosion, and wear through daily use.

Product Details

• Washes 45 racks per hour
• Uses 1.29 gal. of water per rack
• Fully automatic 72-second cycle
• 4.5-gal. wash tank
• Uses 58 gal. of water per hour
• Circular, rack-type model
• High-temperature sanitization
• Built-in booster heater raises water temperature 40-50 degrees F
• Heavy-duty stainless steel construction
• External vacuum breaker
• Incoming water pressure regulator
• Automatic and manual controls
• Counter-rotating wash arms

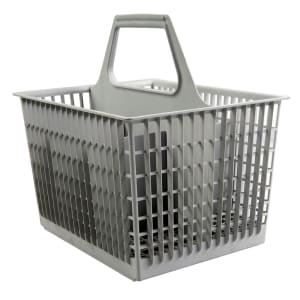

• Includes (3) 17⁵⁄₈-in.-diameter dish racks (1 standard dish rack, (1) 4-compartment silverware rack, and 1 combination rack)
• 17¹⁄₄-in. inside chamber clearance accommodates large pans
• 20¹⁄₂-in.-tall drain
• Required inlet water temperature: 140 degrees F
• Minimum wash temperature: 150 degrees F
• Minimum rinse temperature: 180 degrees F
• Flow pressure: 15-25 PSI
• Flow rate: 7.8 GPM

Dimensions & Utilities

• 27¹⁄₂ in. W x 24¹⁄₄ in. D x 58¹⁄₄ in. H
• 38.8 A, 7¹⁄₄ kW, ¹⁄₂ HP
• 208 V/60 Hz/1 ph
• Water inlet: ¹⁄₂-in. IPS
• Drain: 1¹⁄₂-in. IPS

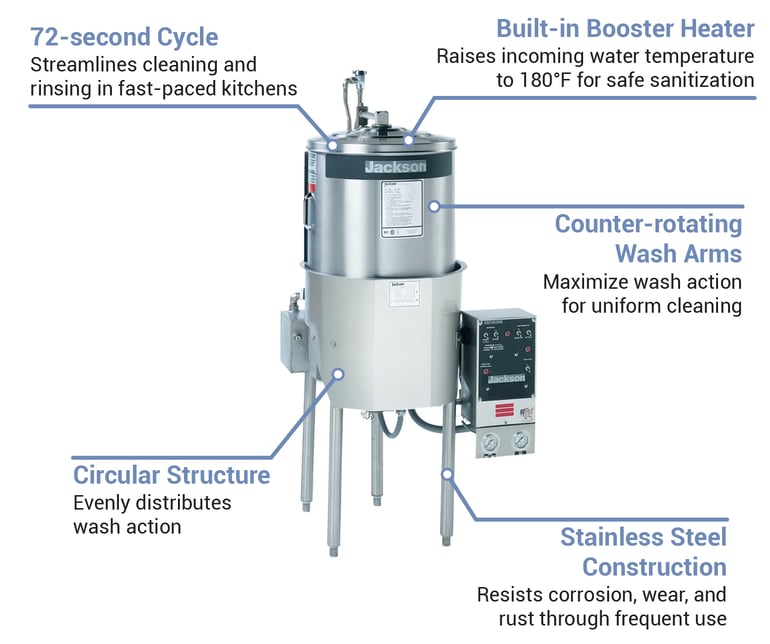

Product Features

*Free shipping on Jackson 10AB within the 48 contiguous states.

From The Manufacturer

Dishwasher, round, high temperature, built in 6.5 kW booster heater, rack type, single tank machine, (45) racks/hour, automatic & manual controls, 1/2 hp, all stainless steel finish, cULus, NSF, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
