Turbo Air TOM-W-60SB 63" Horizontal Open Air Cooler w/ (3) Level, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 083-TOMW60S • MPN: TOM-W-60SB

Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $23,466.00
$7,919.78 / Each

Image may not depict product color, inclusions or accessories.

Turbo Air TOM-W-60SB Description

Turbo Air

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TOM-W-60SB-N. Here are details about that model:

Open Display Merchandiser Combination Case with Refrigerated Top Shelf, 62 5/8" W x 34" D x 56 1/2" H, 7.0 top/10.7 bottom cu. ft. capacity, tempered curved front glass, (2) stainless steel shelves, LED interior lighting, hot gas condensate system, black exterior with anti-rust coating, 300 stainless steel interior, front air intake & rear air discharge, self-contained system, self-cleaning condenser, no plumbing required, R290 Hydrocarbon refrigerant, (2) 3/4 HP, 115v/60/1-ph, 11.3 amps, NEMA 5-15P, cCSAus, CSA-Sanitation

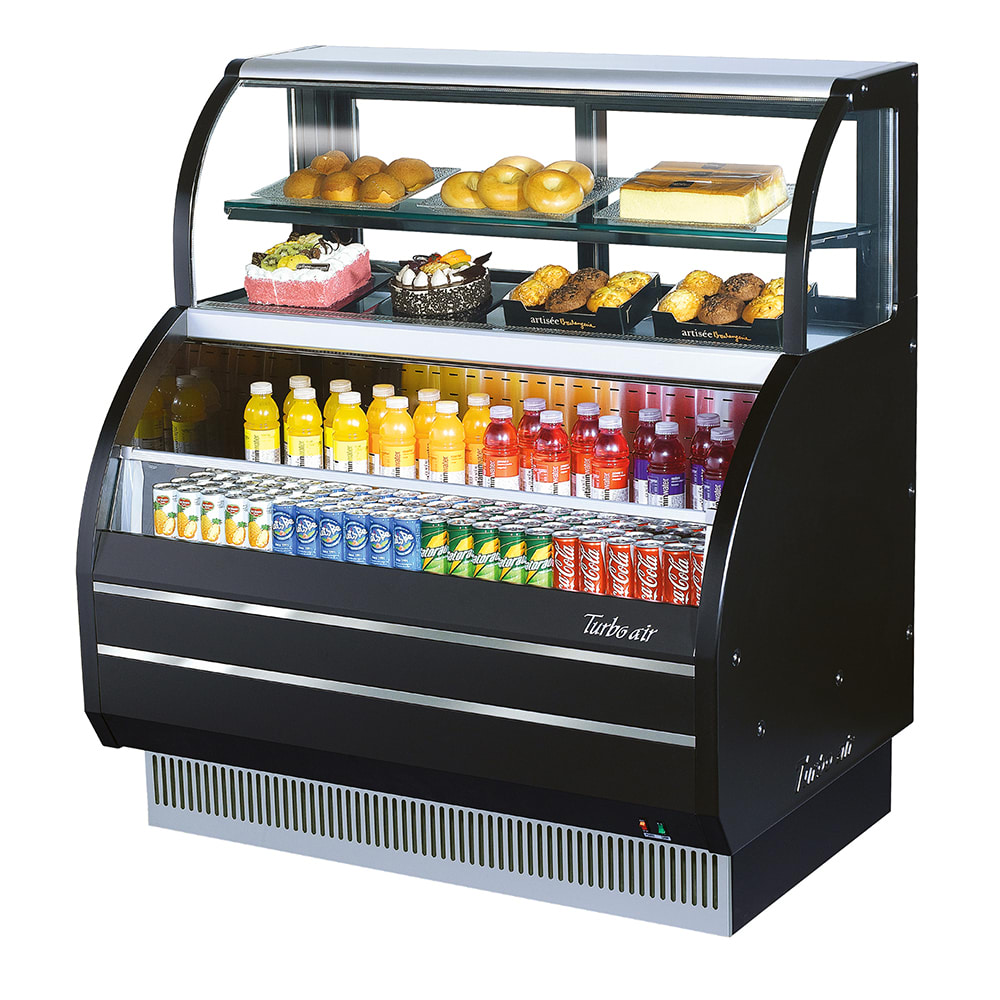

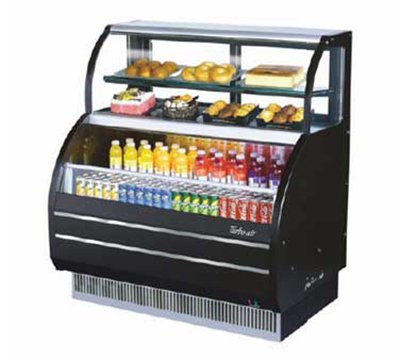

The Turbo Air TOM-W-60SB horizontal open air cooler comes with a refrigerated display case on the top that allows you to easily hold baked goods and other fresh food products. Snacks are fully displayed in a glass case, drawing customers in for impulse buys. In the bottom section, an air curtain is used to keep packaged products in the food safety zone. Air flows over the top of products and circulates back in a circular motion. When customers grab products out, the air curtain is disrupted, but the evaporator fan motor works to recover temperatures quickly.

The cooler's condenser is self-cleaning, brushing away debris every day to ensure the system will not fail prematurely due to a dirty condenser. The refrigeration system is mounted on the bottom of the unit so it can be easily accessed for service. LED lights in the cabinet provide more visibility of products. The exterior is black and will easily fit in virtually any establishment. The stainless steel interior is easy to clean and holds all products. Cold air is maintained with R-134A refrigerant and retained with the polyurethane insulation that is foamed in place in the cabinet. The Turbo Air TOM-W-60SB horizontal open air cooler runs most efficiently when it is fully loaded with products.

Product Details

  • Self-cleaning condenser brushes the coils daily to prevent buildup of debris to prevent system failure
  • Hot gas condensate system surfaces are treated to prevent corrosion, refrigeration from leaking, and condensate water from overflowing
  • Oversized, balanced refrigeration system is bottom mounted for easy access for service and maintenance
  • Uses R-134A refrigerant to maintain cool temperatures
  • Air curtain is created by evaporator fan motors to keep products in the food safety zone
  • LED interior lights brighten the cabinet and enhance the visibility of products
  • Air is taken in at the front and discharged at the rear
  • Refrigerated top display case provides more room for baked goods and pastries
  • 115 V/60 Hz/1 ph, 15.5 A, 34 HP, NEMA 5-20 plug
  • Overall Dimensions: 6258 in. W x 34 in. D x 5612 in. H
  • cETLus and ETL-Sanitation listed

Cabinet Construction

  • Black exterior blends into virtually any foodservice venue
  • Back guard and perforated interior back wall enhance air flow
  • Foamed-in-place with polyurethane insulation for structure and cold air retention
  • Stainless steel interior is durable and easy to clean

Operating Conditions

  • Runs most efficiently when fully loaded with product
  • Designed to work properly in environments where temperatures do not exceed 75 degrees F and relative humidity does not rise above 55 percent
  • Should not be installed near doorways, fans, or HVAC vents because they will interrupt the air curtain
  • Should not be installed where cabinet will be exposed to direct sunlight

Open Display Merchandiser with Refrigerated Top Shelf Combination Case, 62 5/8" W x 34" D x 56 1/2" H, 7.0 top/10.7 bottom cu. ft., (1) stainless steel shelf, 3/4 HP, 15.5 amps, LED interior lighting, CFC Free R-134A, glass front shield, 300 stainless steel interior, non-peel anti-rust exterior coating, front air intake & rear air discharge, patented self-contained system, no plumbing required, plug-in installation, black exterior, 115v/60/1, NEMA 5-20P

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Turbo Air TOM-W-60SB Specifications

PDF Spec Sheet
Manufacturer Turbo Air
Color Black
Compressor Type Self Contained
Design Horizontal
Height (in) 57
Number of Levels 3
Specialty Options Curved Glass
Specialty Options Dual Service
Specialty Options LED Lighting
Width (in) 63
Warranty 2 year P&L / 5 year compressor
Width (in) Range 61 - 80 in
Hertz 60
Voltage 115
Phase 1
Weight 730.00
