Turbo Air TOM-96ES-N 92 7/8" Vertical Open Air Cooler w/ (5) Levels, 220v/1ph

To boost impulse sales in gas stations, grocery stores, airports, and cafeterias, the Turbo Air TOM-96ES-N vertical merchandiser features an open front, LED-lighted interior and five display tiers that enhance product presentation. This 92⁷⁄₈-inch-wide by 30³⁄₄-inch-deep by 81¹⁄₈-inch-tall unit boasts a 45.2-cubic-foot capacity to accommodate drinks, salads, sandwiches, snacks, and desserts on its eight 44³⁄₄-inch-wide by 15¹⁄₂-inch-deep shelves. So customers can quickly identify product prices, a 44³⁄₄-inch-wide price tag channel spans the width of each shelf. Its rigid base, glass front panel, and stainless steel interior and exterior establish a modern aesthetic capable of being incorporated into most decorative themes. To ease installation, it can be plugged into an outlet and doesn't require plumbing. Because it's fitted with adjustable ⁵⁄₈-inch-tall bolts, it can be modified to stabilize the unit on sloped or irregular flooring, reducing wobbling or rocking as inventory is loaded or removed.

Operators can set the Turbo Air TOM-96ES-N vertical air curtain's temperatures with the digital electronic thermostat and monitor it with the solar-powered digital thermometer. The self-contained refrigeration system uses R-290 hydrocarbon refrigerant to produce desired temperatures, while the unit's interior back wall and top are perforated to enhance airflow. So the air curtain isn't disrupted, this unit shouldn't be installed near doorways, fans, or HVAC vents or in areas exceeding 75 degrees Fahrenheit and 55 percent humidity. Polyurethane insulation retains generated temperatures, and to minimize energy consumption during non-business hours, this merchandiser includes a night curtain. To prolong the system's service life, its condenser features a fine mesh filter that captures dust and a rotating brush that eliminates the buildup of this dust daily.

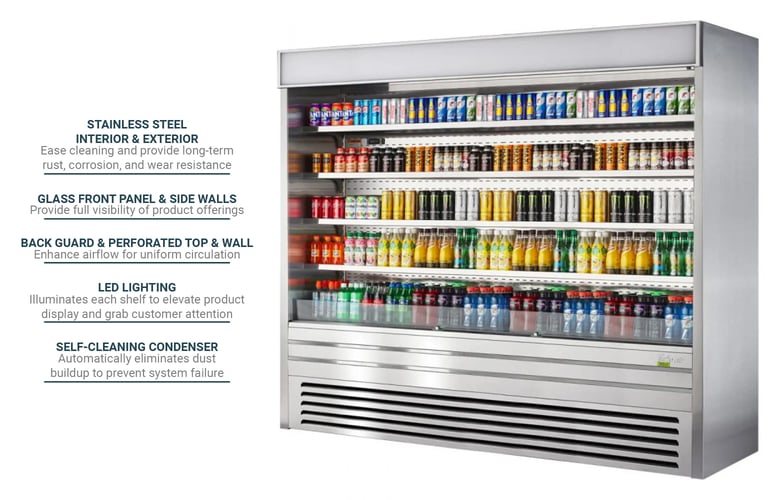

Product Details

• 45.2-cu.-ft. interior
• Vertical, open configuration
• Rust-, corrosion-, and wear-resistant stainless steel interior and exterior
• Front glass panel ensures view of bottom level
• 5 levels with 8 adjustable shelves
• LED lighting mounted below each shelf
• 44³⁄₄-in.-wide price tag channels included for each shelf
• Merchandiser is foamed in place with CFC-free, high-density polyurethane insulation
• Solar-powered digital thermometer
• Digital temperature controller with defrost control
• Enhanced air circulation with back guard and perforated back wall and top
• Energy-saving night curtain
• Front air intake and rear air discharge
• Plug-in installation
• No plumbing required
• ⁵⁄₈-in.-tall bolts can be adjusted to 2³⁄₄ in.
• Shouldn't be installed in areas that exceed 75 degrees F and 55 percent humidity
• Shouldn't be installed near HVAC vents, fans, or doorways that may inhibit airflow

Refrigeration System

• Self-contained configuration
• R-290 hydrocarbon refrigerant is more environmentally friendly than traditional options
• Self-cleaning condenser with fine mesh filter and rotating brush for daily dust removal

Dimensions & Utilities

• Shelves: (8) 44³⁄₄ in. W x 15¹⁄₂ in. D
• Overall: 92⁷⁄₈ in. W x 30³⁄₄ in. D x 81¹⁄₈ in. H
• 18 A, (4) ³⁄₄ HP
• 220 V/60 Hz/1 ph, 9⁷⁄₈-ft. cord with NEMA 6-20P plug

Product Features

*Free shipping on Turbo Air TOM-96ES-N within the 48 contiguous states.

From The Manufacturer

Vertical Air Curtain Open Display Merchandiser, 45.2 cu. ft. capacity, 92-7/8"W x 29-7/8"D x 81-1/8"H, self-contained refrigeration with self-cleaning condenser, LED interior lighting, (8) adjustable shelves, night curtain, front air intake & rear air discharge, stainless steel interior & exterior, R290 Hydrocarbon refrigerant, (4) 3/4 HP, 220v/60/1-ph, 18.0 amps, cord with NEMA 6-20P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor Parts
