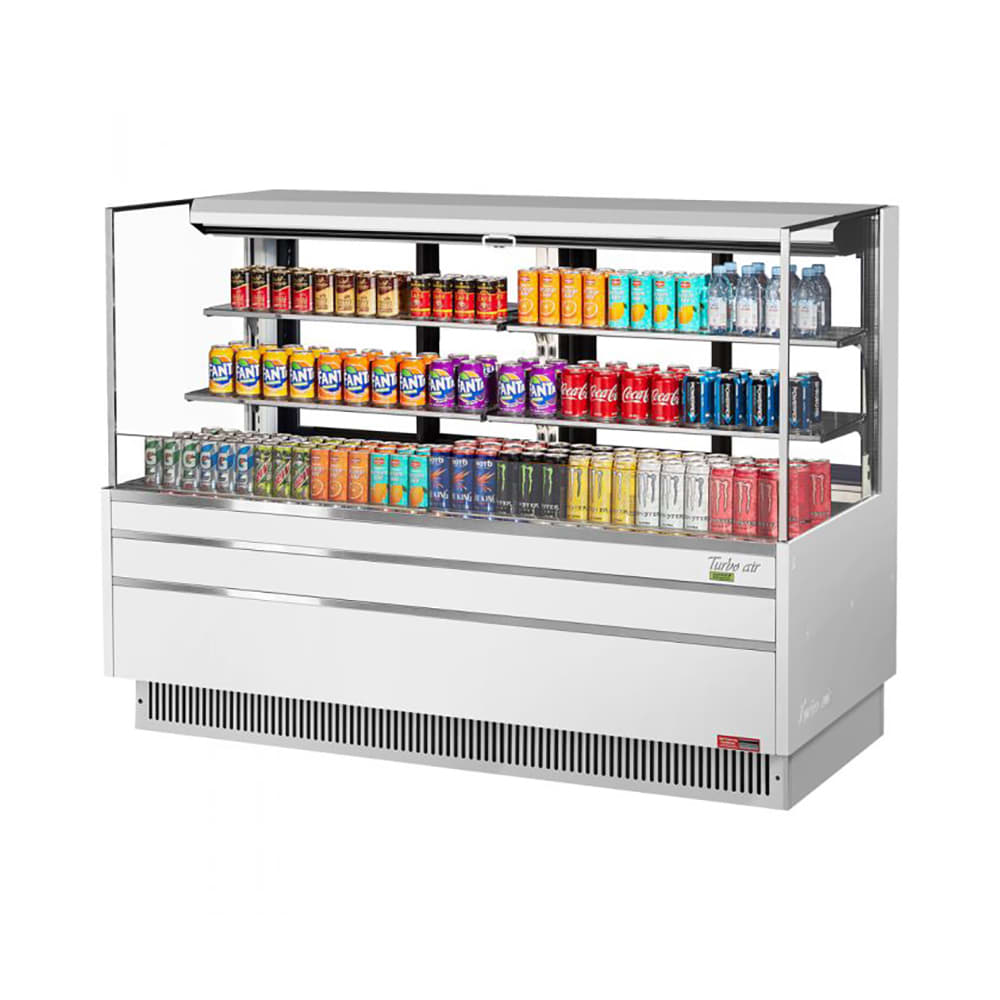

Turbo Air TOM-72L-UFD-W-3S-N 70 3/4" Horizontal Open Air Cooler w/ (3) Levels, 220v/1ph

For expedited setup, the Turbo Air TOM-72L-UFD-W(B)-3S-N horizontal open display merchandiser is self-contained, so it doesn’t require plumbing and operates with simple plug-in installation. To extend its service life, its condenser uses a daily self-cleaning mechanism; its rotating brush moves across the fine mesh filter, catching and removing potentially damaging dust accumulation. This unit produces and maintains cool air using environmentally friendly R290 refrigerant, and operators can raise or lower temperatures as stock is rotated using the electronic digital thermostat. To ensure goods are merchandised safely, the digital, solar-powered thermometers displays an accurate readout. Its open-top configuration is susceptible to temperature changes, so it's lined with foamed-in-place polyurethane insulation that preserves temperatures, even in warm ambient spaces.

This Turbo Air TOM-72L-UFD-W(B)-3S-N low-profile open-air display case is intended for use as a stand-alone cooler in gas stations, convenience stores, or grocery shops, measuring 70³⁄₄ inches wide by 33³⁄₄ inches deep by 53¹⁄₈ inches high. Its three-level design features two glass shelves on two levels and a stainless steel bottom deck so operators can organize goods as desired. Tempered glass panels encase three sides of the unit, providing a direct view of the deck, while LED interior lighting illuminates merchandised products for visibility. To prevent interference with shopping customers, rear sliding glass doors simplify loading and unloading stock during busy business hours. These perforated doors prompt air to circulate throughout the case, minimizing warm spots and condensation that could affect product quality.

Product Details

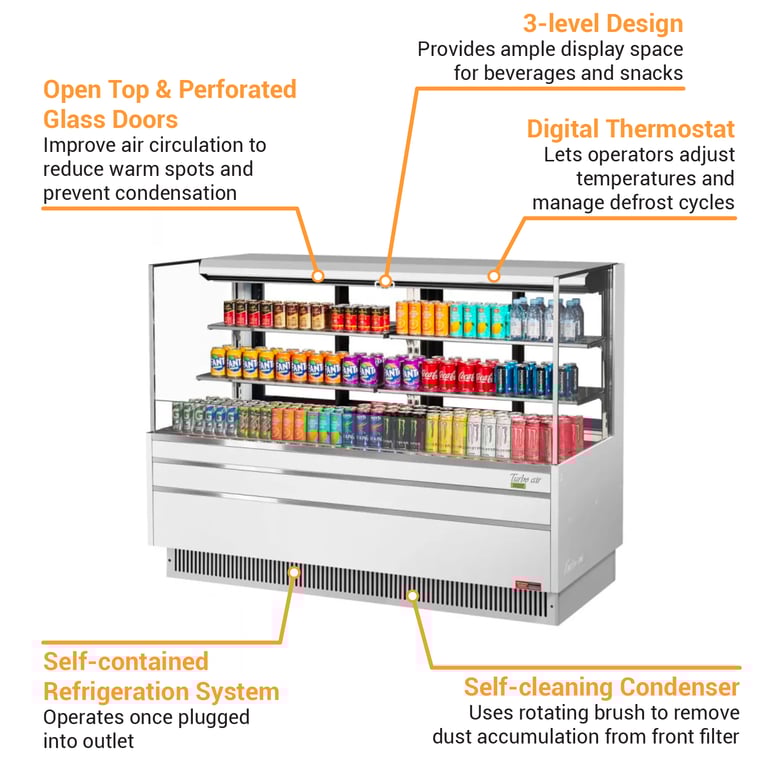

• Self-contained refrigeration system with self-cleaning condenser
• R290 hydrocarbon refrigerant
• High-density, foamed-in-place polyurethane insulation
• Digital electronic thermostat
• Digital, solar-powered thermometer
• Defrost control
• Low-profile, horizontal cooler
• Interior capacity: 23.4 cu. ft.
• 3 levels: stainless steel deck and 4 glass shelves (2 shelves per level)
• Transparent tempered glass front and side panels
• Perforated rear sliding glass doors
• Bright LED interior lighting
• Open top
• Stainless steel interior
• White, modern exterior
• Includes night cover for overnight use

Dimensions & Utilities

• Top shelves: (2) 33¹⁄₂ in. W x 10 in. D
• Bottom shelves: (2) 33¹⁄₂ in. W x 14 in. D
• Interior: 68³⁄₈ in. W x 33³⁄₄ in. D x 25¹⁄₄ in. H
• Overall: 70³⁄₄ in. W x 33³⁄₄ in. D x 53¹⁄₈ in. H
• 13 A, (4) ³⁄₄ HP
• 220 V/60 Hz/1 ph, 9⁷⁄₈-ft. cord with NEMA 6-20P plug

Product Features

*Free shipping on Turbo Air TOM-72L-UFD-W-3S-N within the 48 contiguous states.

From The Manufacturer

Horizontal Open Display Merchandiser, low-profile, 23.4 cu. ft. capacity, 70-3/4"W x 33-3/4"D x 52-1/2"H, self-contained refrigeration with self-cleaning condenser, rear sliding glass doors, tempered glass front shield & side panels, stainless steel interior, (2) shelves + deck, digital electronic thermostat with defrost control, solar digital thermometer, LED interior lighting, specify exterior color, includes night cover, front air intake & rear air discharge, R290 Hydrocarbon refrigerant, (4) 3/4 HP, 220V/60/1-ph, 13 amps, cord with NEMA 6-20P, CSA-Sanitation, cCSAus

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor Parts

Turbo Air TOM-72L-UFD-W-3S-N Specifications

Documents

Spec Sheet

Warranty
