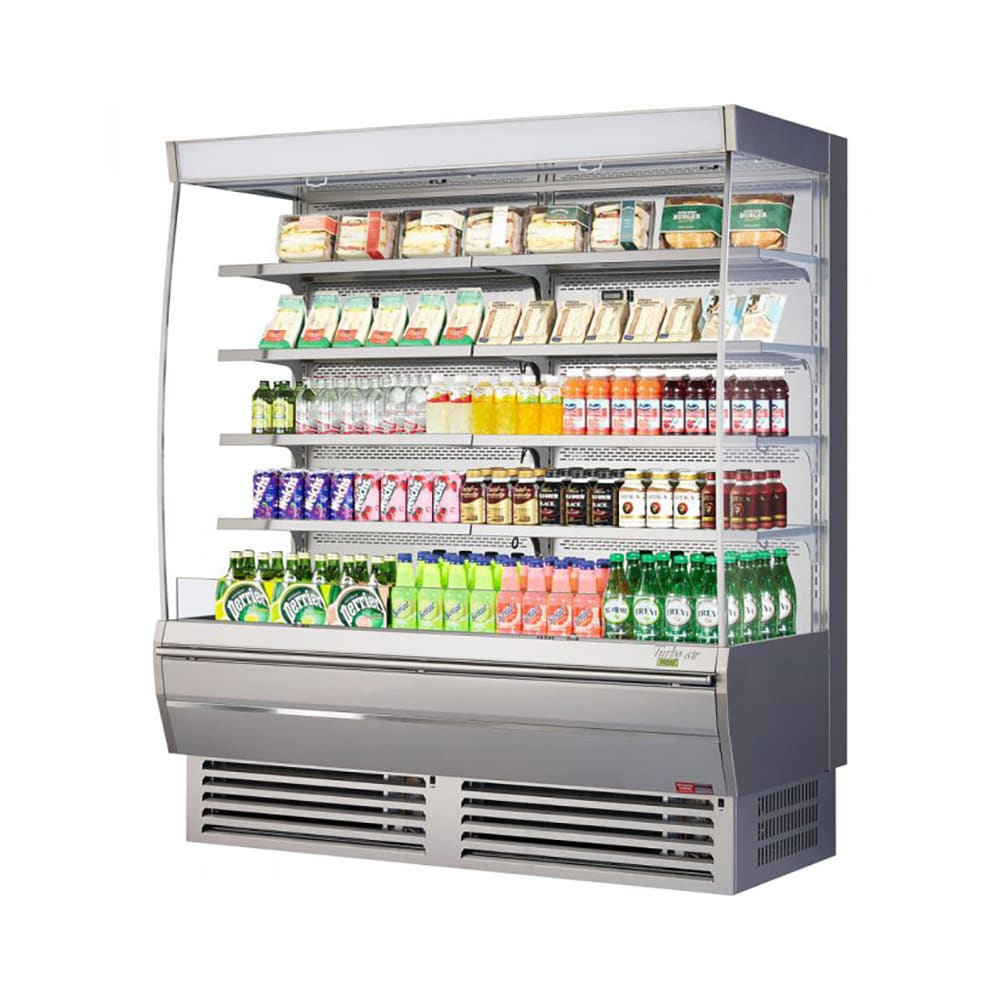

Turbo Air TOM-72DXS-N 68 3/4" Vertical Open Air Cooler w/ (5) Levels, 220v/1ph

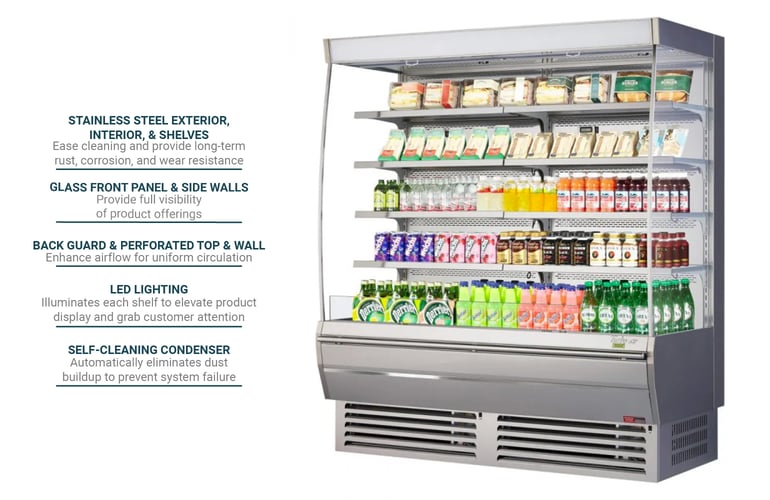

To hold drinks, sandwiches, salads, sushi, and other grab-and-go snacks at safe temperatures, the Turbo Air TOM-72DXS-N extra-deep vertical display merchandiser features a self-contained refrigeration system that operates with eco-friendly R-290 hydrocarbon refrigerant. For streamlined operation, its self-cleaning condenser uses a fine mesh filter to capture debris while a rotating brush eradicates dust accumulation daily. Staff can set merchandiser temperatures and initiate defrost cycles with the digital electronic thermostat and manage temperatures with the solar-powered digital thermometer. The perforated interior back wall and top and back guard enhance airflow to encourage uniform air distribution, and to retain generated temperatures, this unit is foamed in place with high-density polyurethane insulation. During idle periods and non-business hours, the included night curtain can be placed over the open front to minimize energy consumption.

The Turbo Air TOM-72DXS-N vertical merchandiser establishes a sleek, contemporary appearance with its rust- and corrosion-resistant stainless steel interior and exterior. For full visibility of the bottom level, the unit is encased with a short, tempered-glass front shield and side walls. The interior is comprised of five levels with eight 33¹⁄₈-inch-wide by 16-inch-deep shelves, and LEDs beneath each shelf enhance product display to garner customer attention. Because it just needs to be plugged in and doesn't require plumbing, this 68³⁄₄-inch-wide by 36-inch-deep by 79-inch-high unit is ideal for placement near point-of-sale areas in cafeterias, grocery stores, gas stations, and other high-traffic areas. To prevent air curtain disruptions, it shouldn't be installed near doorways, HVAC vents, or fans.

Product Details

• Net capacity: 34.1 cu. ft.
• Vertical, extra-deep configuration
• Stainless steel interior and exterior resist rust, corrosion, and wear
• 5 levels with 8 shelves
• LED lighting beneath each shelf
• Safety-reinforced tempered glass front shield and side walls
• CFC-free, high-density polyurethane insulation
• Digital temperature controller with defrost
• Solar-powered digital thermometer
• Back guard and perforated back wall and top enhance airflow
• Front air intake and rear air discharge
• Energy-saving night curtain included
• Simple plug-in installation
• No plumbing required
• ⁵⁄₈-in.-tall bolts can be adjusted to 2³⁄₄ in.
• Shouldn't be installed in areas exceeding 75 degrees F and 55 percent humidity
• Shouldn't be installed near HVAC vents, fans, or doorways

Refrigeration System

• Self-contained configuration
• Eco-friendly R-290 hydrocarbon refrigerant
• Dust-removing, self-cleaning condenser with fine mesh filter and rotating brush

Dimensions & Utilities

• Shelves: (8) 33¹⁄₈ in. W x 16 in. D
• Interior: 66³⁄₈ in. W x 21¹⁄₄ in. D x 48³⁄₄ in. H
• Overall: 68³⁄₄ in. W x 36 in. D x 79 in. H
• 18 A, (4) ³⁄₄ HP
• 220 V/60 Hz/1 ph, 9⁷⁄₈-ft. cord with NEMA 6-20P plug

Product Features

*Free shipping on Turbo Air TOM-72DXS-N within the 48 contiguous states.

From The Manufacturer

Extra deep Vertical Open Display Merchandiser, 34.1 cu. ft. capacity, 68-3/4"W x 34-7/8"D X 79"H, bottom mount self-contained refrigeration, self-cleaning condenser device, LED interior lighting under each shelf, (8) solid shelves, solar powered digital thermometer, digital electronic thermostat with defrost control, anti-corrosion coated evaporator, stainless steel interior & exterior, R290 Hydrocarbon refrigerant, (4) 3/4 HP, 220v/60/1-ph, 18.0 amps, NEMA 6-20P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor Parts
