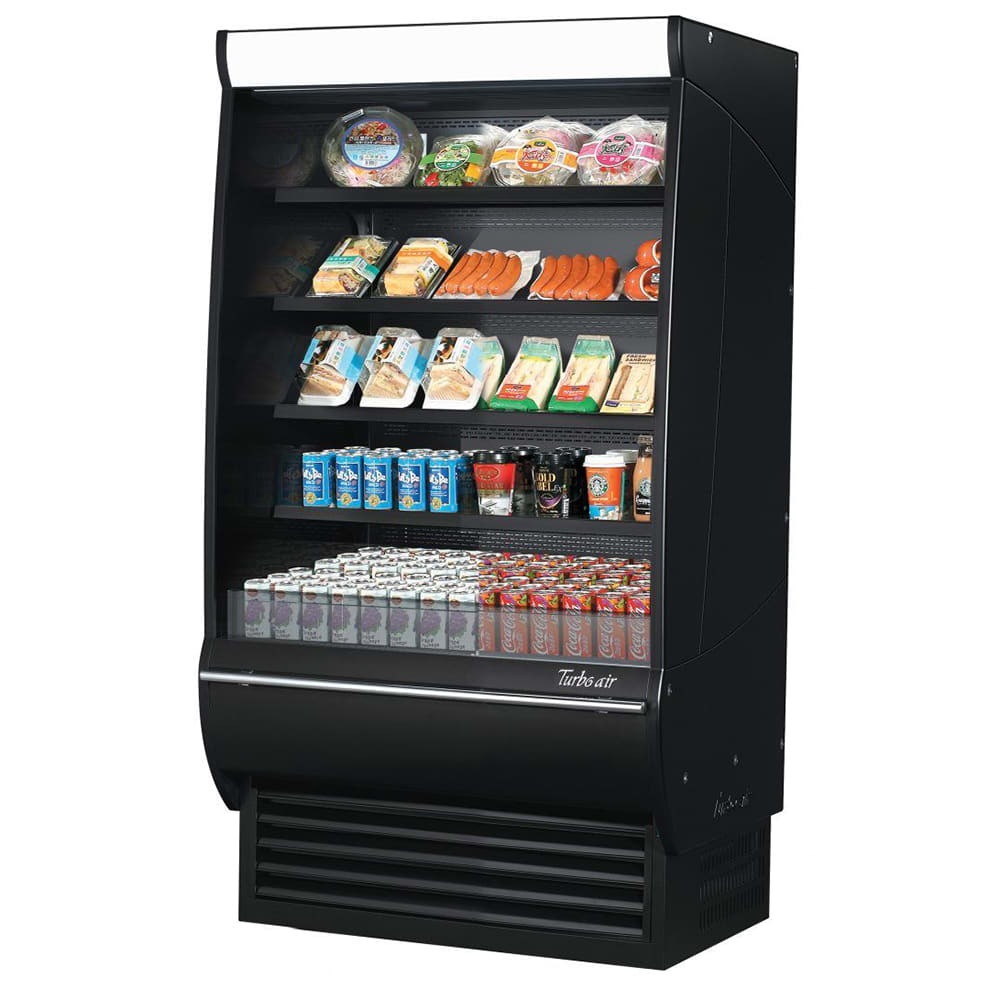

Turbo Air TOM-36DXB-SP-N 36" Vertical Open Air Cooler w/ (5) Levels, 115v

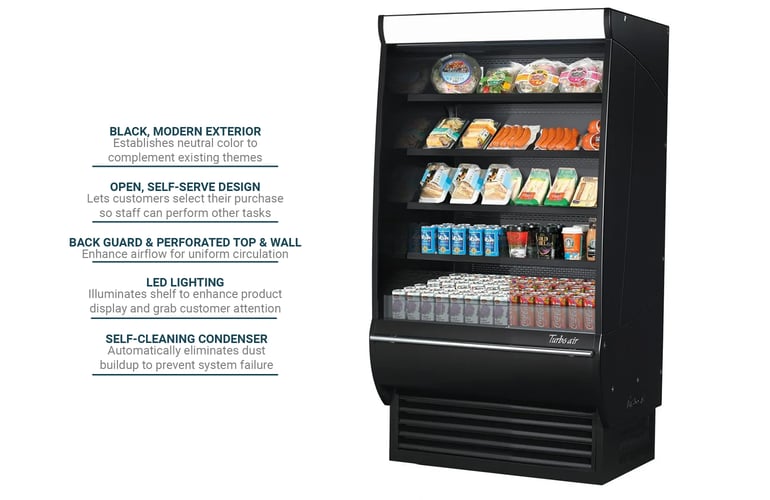

To display large amounts of sandwiches, salads, snacks, desserts, and drinks in a single footprint, the Turbo Air TOM-36DXB-SP-N vertical open display merchandiser boasts an extra-deep design, measuring 35⁵⁄₈ inches wide by 36 inches deep by 79 inches high. This five-tier unit is comprised of four 33¹⁄₈-inch-wide by 16-inch-deep shelves to accommodate a variety of products. The LED lighting beneath each shelf brightens the merchandised items to grab customer attention, while the safety-reinforced, tempered-glass front shield provides a full view of the bottom level's product offerings. With its modern shape, black exterior, and stainless steel interior, this unit provides a classic appearance without sacrificing durability.

The Turbo Air TOM-36DXB-SP-N extra-deep merchandiser features a bottom-mounted, self-contained refrigeration system that operates with eco-friendly R-290 hydrocarbon refrigerant. To prolong the system's service life, its condenser is built with a fine mesh filter that catches dust and a rotating brush that eliminates this dust buildup daily. Operators can set and monitor temperatures with the digital electronic thermostat and solar-powered digital thermometer, and to minimize unsightly ice buildup, the defrost control can be used. For enhanced airflow, the interior back wall and top are perforated. While foamed-in-place polyurethane insulation preserves generated temperatures, the included night curtain saves energy during idle periods.

Product Details

• 17.1-cu.-ft. interior volume
• Open, vertical configuration with extra-deep interior
• Black exterior
• Stainless steel interior with solid side panels
• Safety-reinforced, tempered glass front shield
• 5 levels with 4 shelves
• Interior LED lighting beneath each shelf
• CFC-free, high-density polyurethane insulation is foamed in place
• Solar-powered digital thermometer
• Digital temperature controller features defrost control
• Back guard and perforated back wall and top improve air circulation
• Front air intake and rear air discharge

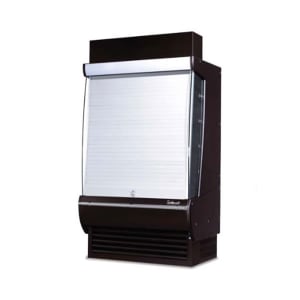

• Includes night curtain
• Simple plug-in installation
• No plumbing required
• ⁵⁄₈-in.-tall bolts can be raised to 2³⁄₄ in.
• Should not be installed in areas exceeding 75 degrees F and 55 percent humidity
• Should not be installed near HVAC vents, fans, or doorways

Refrigeration System

• Bottom-mounted, self-contained design
• Environmentally friendly R-290 hydrocarbon refrigerant
• Condenser automatically self-cleans daily

Dimensions & Utilities

• Shelves: (4) 33¹⁄₈ in. W x 16 in. D
• Interior: 33¹⁄₄ in. W x 21¹⁄₄ in. D x 48³⁄₄ in. H
• Overall: 35⁵⁄₈ in. W x 36 in. D x 79 in. H
• 15.5 A, (2) ³⁄₄ HP
• 115 V/60 Hz/1 ph, 9⁷⁄₈-ft. cord with NEMA 5-20P plug

Product Features

*Free shipping on Turbo Air TOM-36DXB-SP-N within the 48 contiguous states.

From The Manufacturer

Extra Deep Vertical Open Display Merchandiser, 17.1 cu. ft. capacity, 36"W x 34-1/4"D X 78-7/8"H, bottom mount self-contained refrigeration, self-cleaning condenser device, LED advertising top panel, open front, tempered glass front shield & side walls, LED interior lighting, (4) adjustable stainless steel shelves, stainless steel interior, non-peel anti-rust exterior coating, energy saving night curtain standard, plug-in installation, front air intake & rear air discharge, black exterior, R290 Hydrocarbon refrigerant, 115v/60/1-ph, (2) 3/4 HP, 15.5 amps, NEMA 5-20P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor Parts
