Turbo Air TIOM-20RSRS-N 48" Vertical Island Open Air Cooler w/ (4) Levels, 220v/1ph

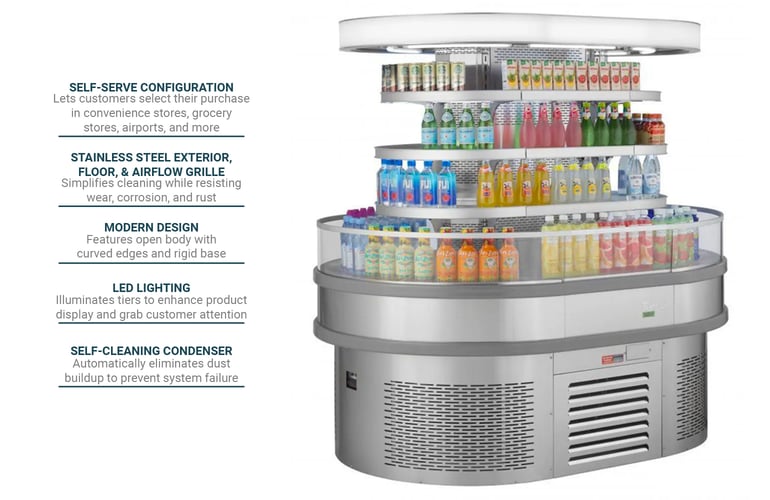

For placement in convenience shops, grocery stores, and airport stores, the Turbo Air TIOM-20RSRS-N island display merchandiser is a four-level, self-service unit that measures 48 inches wide by 67⁷⁄₈ inches deep by 65⁵⁄₈ inches tall. Its modern design features curved edges and a rigid stainless steel base, complementing most decorative themes and providing lasting durability through high-volume, front-of-house use.

The tiers' elongated shapes are ideal for displaying bottled beverages, packaged sandwiches and snacks, or boxed salads. A glass front shield provides a full view of the bottom level while protecting products from falling. Each level is built with 5-millimemeter-thick durable, clear polycarbonate product stoppers and ABS bump-guard liners that secure items in place. Customers can quickly discern product costs with the front-mounted price tag rails, and to illuminate the display, LED lighting is integrated into the top panel and canopy.

The Turbo Air TIOM-20RSRS-N self-serve refrigerated merchandiser is equipped with a self-contained system that doesn't require plumbing. To maintain desired temperatures, this system operates with eco-friendly R-290 hydrocarbon refrigerant. Operators can set temperatures with the digital electronic thermostat, which features defrost control. Its self-cleaning condenser automatically removes dust buildup to prevent system failure. To protect the air curtain from disrupted airflow, this unit shouldn't be installed near fans, doorways, or HVAC vents, and should be placed in environments that don't exceed 55 percent humidity and 75 degrees Fahrenheit.

Product Details

• Interior capacity: 19.2 cu. ft.
• Self-service design
• 4 levels with 3 shelving tiers
• Modern design with stainless steel exterior
• LED interior lighting on canopy and top panel
• Glass front shield
• ABS bump-guard liners
• 5-mm.-thick clear polycarbonate product stoppers
• Price tag rails
• ⁵⁄₈-in.-tall bolts can be adjusted to 2³⁄₄ in.
• Digital electronic thermostat with defrost control
• Simple plug-in installation
• Should not be installed in settings exceeding 75 degrees F and 55 percent humidity
• Should not be installed near HVAC vents, fans, or doorways

Refrigeration System

• Self-contained configuration
• Environmentally friendly R-290 hydrocarbon refrigerant
• Self-cleaning condenser

Dimensions & Utilities

• 48 in. W x 67⁷⁄₈ in. D x 65⁵⁄₈ in. H
• 20.14 A, (5) ³⁄₄ HP
• 220 V/60 Hz/1 ph, 9⁷⁄₈-ft. cord with NEMA 6-30P plug

Product Features

*Free shipping on Turbo Air TIOM-20RSRS-N within the 48 contiguous states.

From The Manufacturer

Island Display Self-Serve Refrigerated Merchandiser, 19.2 cu. ft. capacity, 48”W x 67-7/8”D x 65-5/8”H, self-contained, plug-in installation, self-cleaning condenser equipped, (3) tiers, LED interior lighting, solar powered digital thermometer, digital electronic thermostat with defrost control, ABS bump guard liners, price tag rails, stainless steel exterior, R290 Hydrocarbon refrigerant, (5) 3/4 HP, 220v/60/1-ph, 20.14 amps, NEMA L6-30P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor Parts

Turbo Air TIOM-20RSRS-N Specifications

Documents

Spec Sheet

Warranty

Catalog
