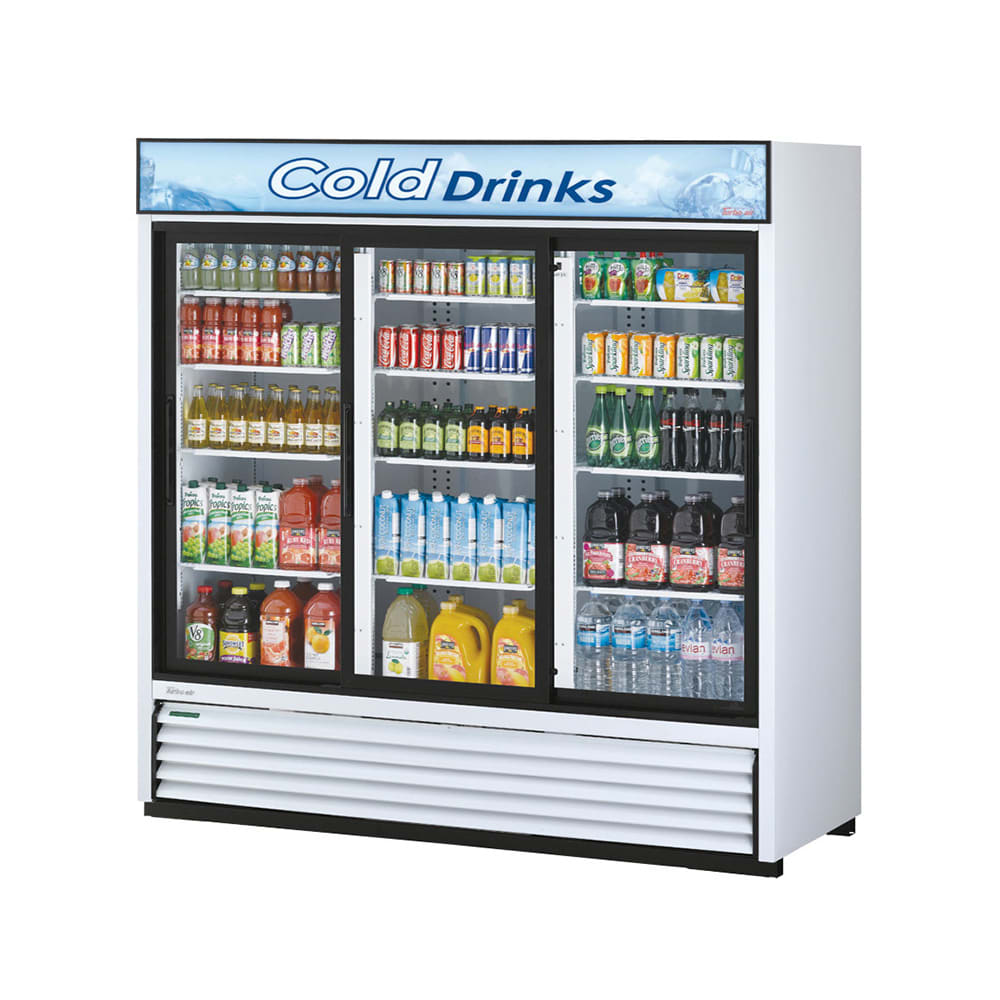

Turbo Air TGM-69R 78" Three-Section Glass Door Merchandiser w/ Sliding Doors, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 083-TGM69R • MPN: TGM-69R

Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $10,588.00
$3,573.45 / Each

Image may not depict product color, inclusions or accessories.

Turbo Air TGM-69R Description

Turbo Air

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TGM-69R-N. Here are details about that model:

Refrigerated Merchandiser, three-section, 57.6 cu. ft., self-contained, WHITE cabinet exterior with white trim, standard depth, double pane Low-E self-closing sliding glass doors, LED interior, LED advertising panel, energy conserving fan control, hot gas condensate system, (12) adjustable PE coated wire shelves, bottom mount compressor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 6.8 amps, NEMA 5-15P, ETL-Sanitation, cETLus

The Turbo Air TGM-69R three-section glass door merchandiser is foamed in place with polyurethane insulation to have stability and retain cold air. Double pane glass doors slide for easy access in tight spaces and reduce heat gain, retain cold air, and decrease the consumption of energy. Their lightweight construction eliminates a lot of maintenance, while its easy-to-grip handles make loading products or grabbing one item easy. A magnetic gasket on the door prevents cold air from escaping.

Adjustable, polyethylene coated wire shelves hold products and are heavy duty to hold your packaged product safely. LED interior lights make products more visible, while the LED exterior panel advertises what you are selling. A hot gas condensate system prevents condensate water from overflowing and refrigerant from leaking since it has been specially treated to resist corrosion. Up to 15 percent of energy is conserved with the fan control system that uses air circulation for ideal temperature levels. The Turbo Air TGM-69R three-section glass door merchandiser has a balanced, oversized refrigeration system that comes with an evaporator and condenser that cool quickly and efficiently.

Product Details

  • 12 adjustable, polyethylene coated wire shelves are heavy duty to hold products
  • LED advertising panel draws customers to the refrigerator
  • LED interior lights brighten the cabinet and make products more visible
  • White cabinet exterior with black trim fits into almost any theme
  • 115 v/60 Hz/1 ph, 34 HP, 12 A, 7-ft. cord with a NEMA 5-15P plug
  • Overall Dimensions: 78 in. W x 3018 in. D x 7958 in. H
  • cETLus listed; NSF and Energy Star certified

Refrigeration System

  • Balanced, oversized refrigeration system uses R-134A refrigerant to keep temperatures cool
  • 33-38 degrees F temperature range
  • Energy is conserved by 15 percent with the fan control system that uses air circulation for ideal temperature levels
  • Overflow of condensate water and refrigerant leaks are prevented since the surface of the hot gas condensate system has been treated to resist corrosion
  • Compressor unit is mounted on the bottom for easy maintenance

Construction

  • Foamed-in-place, polyurethane insulation gives the cabinet stability and retains cold air
  • Double pane glass doors reduce heat gain and decrease the consumption of energy
  • Lightweight door construction requires little maintenance
  • Sliding doors and easy-to-grip handles make loading or unloading product easy
  • Magnetic door gasket keeps cold air from escaping the cabinet

Refrigerated Merchandiser, three-section, 57.6 cu. ft., self-contained, white cabinet exterior with black trim, standard depth, double pane Low-E self-closing sliding glass doors, LED interior, LED advertising panel, energy conserving fan control, hot gas condensate system, (12) adjustable PE coated wire shelves, bottom mount compressor, 3/4 HP, 115v/60/1-ph, 12.0 amps, NEMA 5-15P, NSF 7, cETLus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Turbo Air TGM-69R Specifications

PDF Spec Sheet
Manufacturer Turbo Air
Compressor Location Bottom
Cubic Feet 69
Door Design Sliding
Exterior Finish White
Height (in) 80
Sections 3
Shelving Type Wire
Specialty Options LED Lighting
Specialty Options Lit Signage Area
Warranty 2 year part and labor warranty / 5 years on compressor
Width (in) 78
Width (in) Range 57 - 81 in
Hertz 60
Voltage 115
Phase 1
Weight 681.00
Turbo Air TGM-69R Certifications
  • ETL
