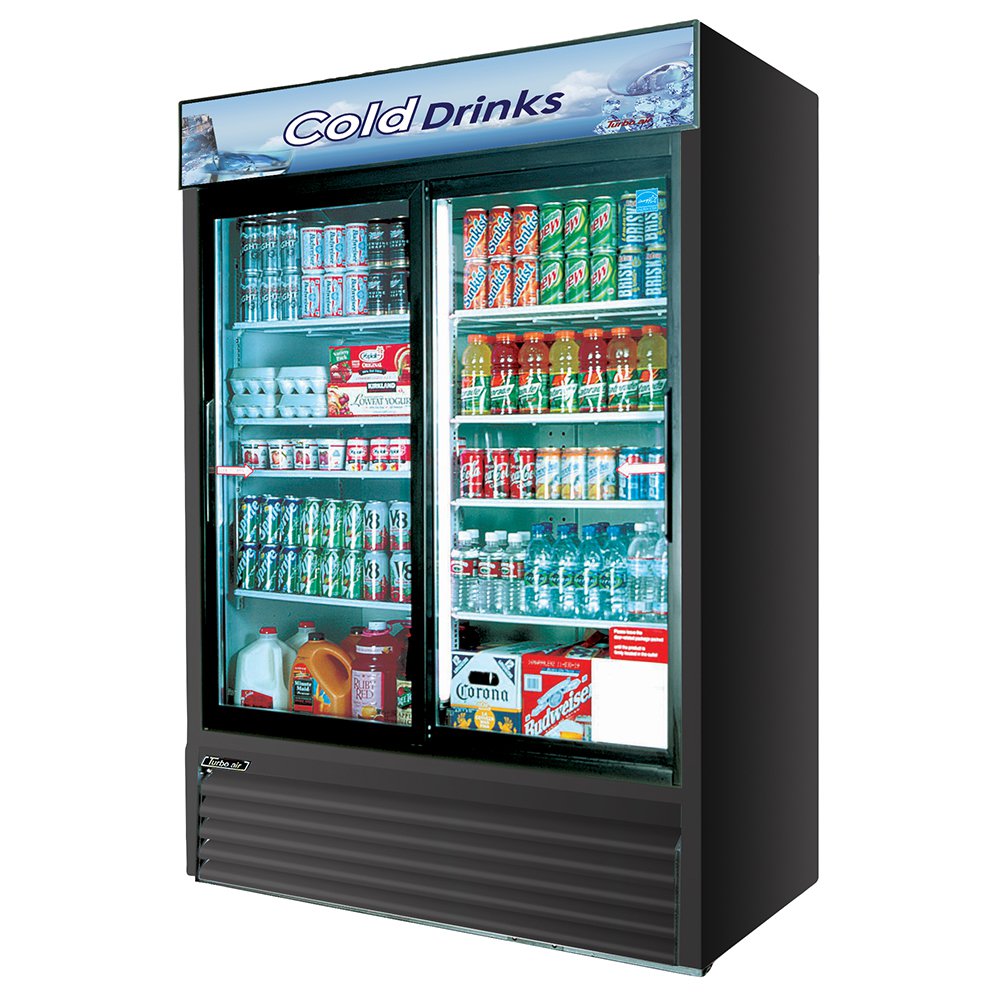

Turbo Air TGM-48RB Description
In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TGM-48RB-N. Here are details about that model:
Refrigerated Merchandiser, two-section, 44.0 cu. ft., self-contained, double pane Low-E self-closing sliding glass doors, LED interior & canopy lighting, energy conserving fan control, hot gas condensate system, (8) adjustable PE coated wire shelves, black cabinet with black trim, bottom mount compressor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 5.7 amps, NEMA 5-15P, cETLus, ETL-Sanitation
The Turbo Air TGM-48RB two-section glass door merchandiser has a bottom mounted compressor unit, making it easy to maintain. The oversized, balanced refrigeration system cools faster and is efficiency. For the best temperature levels, the fan control system conserves 15 percent more energy than the previous model and increases the life of the compressor. The corrosion resistant condensate system surfaces prevent refrigerant from leaking and condensate water from overflowing.
LED interior lighting brightens the cabinet and makes products more visible. Double pane glass doors retain cold air and are sliding so grabbing and loading products is easy. Since the glass has low-emissivity, condensation formation is minimized and energy efficiency is increased. A magnetic door gasket keeps cold air inside the cabinet, while the handles are easy to grab and open the door. Polyethylene coated wire shelves are adjustable, and the Turbo Air TGM-48RB two-section glass door merchandiser is insulated with foamed in place polyurethane to keep cold air inside and give the cabinet structure.
Product Details
- Fan control system saves energy and increases the lift of the compressor
- Condensate system surfaces resist corrosion and helps prevent condensate water from overflowing and refrigerant from leaking
- LED lights illuminate the cabinet interior
- Oversized and balanced refrigeration system cools faster and has more efficiency
- Compressor is mounted on the bottom of the unit for convenient servicing
- 2 sliding doors make loading and grabbing merchandise easy
- Handles on the doors make opening them simple
- Double pan glass doors keep cold air inside and prevent condensation
- Magnetic door gasket keeps cold air inside
- 8 polyethylene coated wire shelves are adjustable
- 33-38 degrees F temperature range for the best beverage preservation
- High-density, polyurethane insulation is foamed in place to give the cabinet structure
- Black cabinet with black frame blends in any establishment
- 115 V/60 Hz/1 ph, 1⁄2 HP, 10.9 A, 6-ft. cord with a NEMA 5-15P plug
- Overall Dimensions: 557⁄28 in. W x 30 in. D x 791⁄8 in. H
- cETLus listed; NSF certified
Refrigerated Merchandiser, two-section, 48 cu. ft., self-contained, double pane self-closing sliding glass doors, LED interior & canopy lighting, (8) adjustable PE coated wire shelves, black cabinet with black trim, bottom mount compressor, 1/2 HP, 115v/60/1, 10.9 amps, cord with NEMA 5-15P, NSF,UL cUL, ETL, cETL
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Turbo Air TGM-48RB Specifications
PDF Spec Sheet| Manufacturer | Turbo Air |
| Compressor Location | Bottom |
| Cubic Feet | 48 |
| Door Design | Sliding |
| Exterior Finish | Black |
| Height (in) | 79 |
| Sections | 2 |
| Shelving Type | Wire |
| Specialty Options | LED Lighting |
| Specialty Options | Lit Signage Area |
| Warranty | 2 year part and labor warranty / 5 years on compressor |
| Width (in) | 56 |
| Width (in) Range | 31 - 56 in |
| Hertz | 60 |
| Voltage | 115 |
| Phase | 1 |
| Weight | 486.00 |
