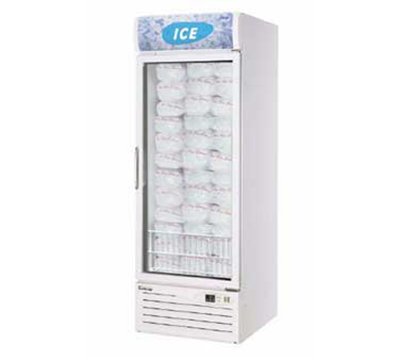

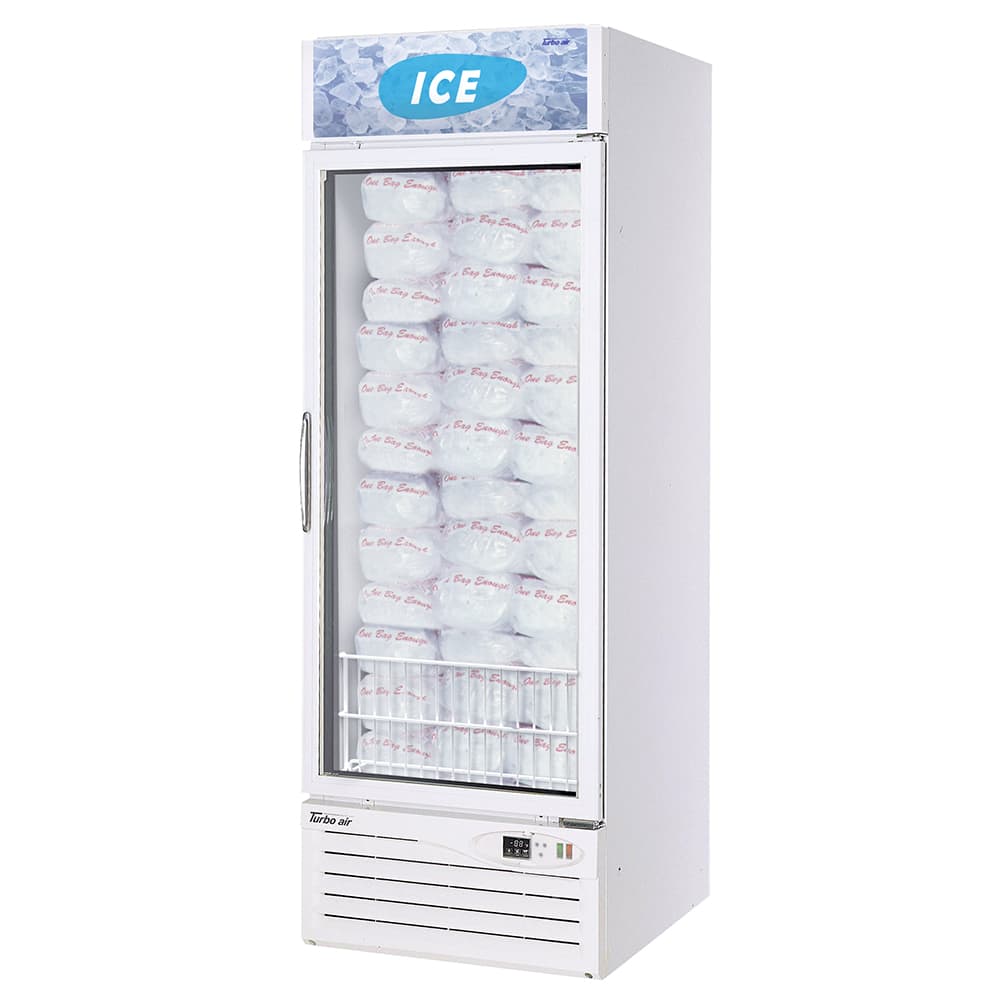

Turbo Air TGIM-23 Ice Merchandiser w/ 1 Section, Bottom Mount & Wire Shelves, 21.1 cu ft

Image may not depict product color, inclusions or accessories.

KaTom #: 083-TGIM23 • MPN: TGIM-23

Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $5,961.00
$2,011.84 / Each

Image may not depict product color, inclusions or accessories.

Turbo Air TGIM-23 Description

Turbo Air

The Turbo Air TGIM-23 one-section ice merchandiser holds ice at 10 to 15 degrees Fahrenheit to prevent cubes from completely freezing together. Temperatures can be monitored using the external digital display. By automatically delaying whenever the door is opened, the evaporator fan prevents warm air from being sucked into the cabinet.

The Turbo Air TGIM-23 one-section ice merchandiser is built with foamed-in-place polyurethane insulation to keep cold air in the cabinet and provide structure. The door features heated triple-pane glass to retain cold temperatures and prevent condensation from forming. The interior is lit by LED lights for added visibility, and the advertising panel also uses LED lights to ensure the sign grabs customers' attention.

Product Details

  • Foamed-in-place polyurethane insulation seals in cold temperatures and adds structure to the unit
  • Heated triple-pane glass door prevents condensation from forming on the glass
  • Alarm indicates when door is not properly closed, preventing temperature loss and product spoilage
  • Magnetic gaskets can be removed for cleaning or replacing
  • Advertising panel features LED lighting for an eye-catching presentation
  • LED lights in the interior make product easy to see
  • White cabinet matches almost any establishment theme
  • 115 V/60 Hz/1 ph, 6.5 A, 13 HP, 9.8-ft. cord with a NEMA 5-15P plug
  • Interior dimensions: 23 in. L x 2418 in. W x 6038 in. H
  • Overall dimensions: 27 in. L x 3118 in. W x 7814 in. H
  • cETLus and ETL Sanitation listed; ISO 9001:2008 certified

Heavy-duty Refrigeration System

  • Ice cubes will not melt together
  • Temperature range: 10-15 degrees F
  • R-134A refrigerant maintains cold temperatures
  • External digital display helps user monitor internal temperatures
  • Self-diagnostic feature identifies system issues
  • Built-up ice on the condenser coil is melted with the smart defrost system
  • Evaporator fan has an automatic delay to avoid bringing in warm air when door is open
  • Refrigeration system is mounted in the bottom for convenient access

Ice merchandiser, one section, bottom mount, 21.1 cu.ft., door open alarm, LED interior lighting & canopy, (1) triple pane heated glass door with handle, exterior digital thermometer/controls, door opening alarm, self-diagnostic monitoring system, automatic fan motor delays, Turbo freezing, smart fuzzy defrosting, LED sign panel, LED interior lighting, 1/3 HP, 6.5 amps, 115/60/1-ph, NEMA-5-15P, cETLus, ETL-Sanitation

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Turbo Air TGIM-23 Specifications

PDF Spec Sheet
Manufacturer Turbo Air
Exterior Width 27
Sections 1
Door Design Swing
Air Intake Front
Compressor Location Bottom
Warranty 2 year parts & labor/5 year compressor
Cubic Feet 21
Specialty Options LED Lighting
Hertz 60
Voltage 115
Phase 1
Weight 356.00
Turbo Air TGIM-23 Certifications
  • NSF
  • ETL
