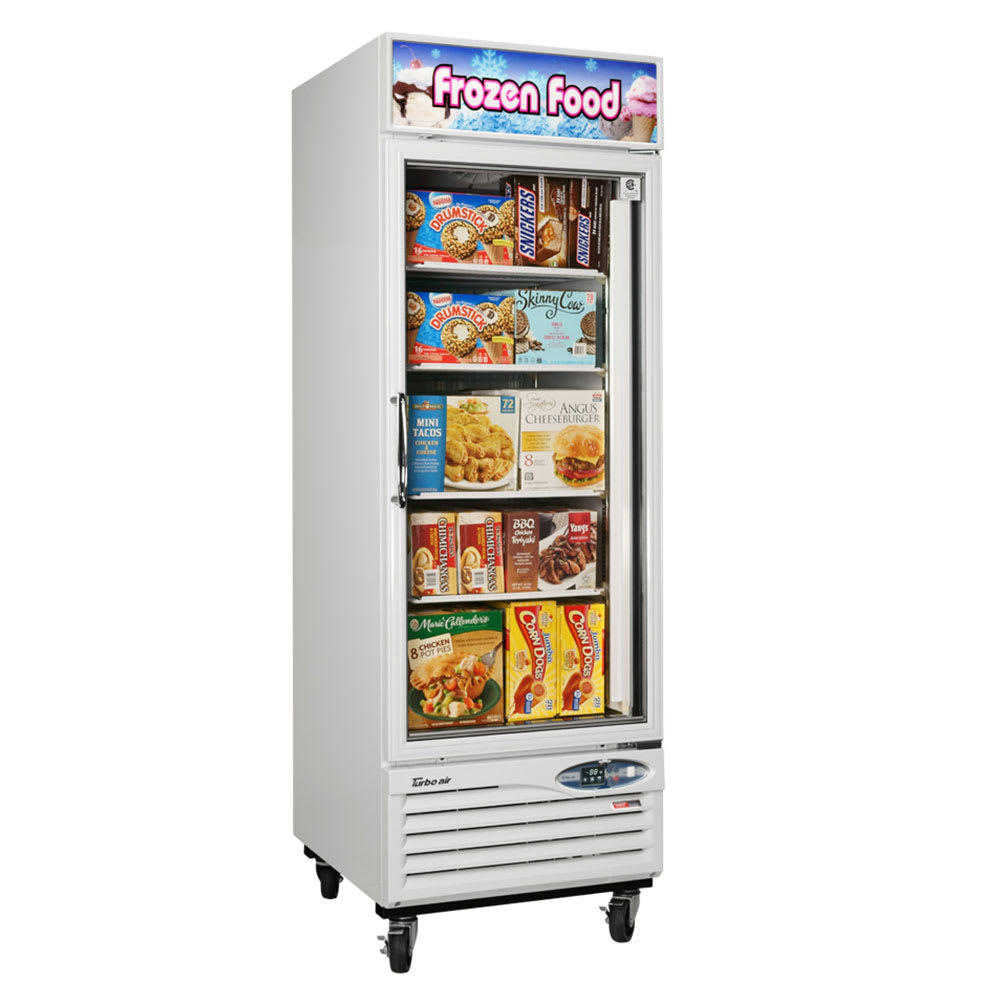

Turbo Air TGF-23F 27" One-Section Display Freezer w/ Swinging Door - Bottom Mount Compressor, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 083-TGF23F • MPN: TGF-23F

Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $10,677.00
$3,603.49 / Each

Image may not depict product color, inclusions or accessories.

Turbo Air TGF-23F Description

Turbo Air

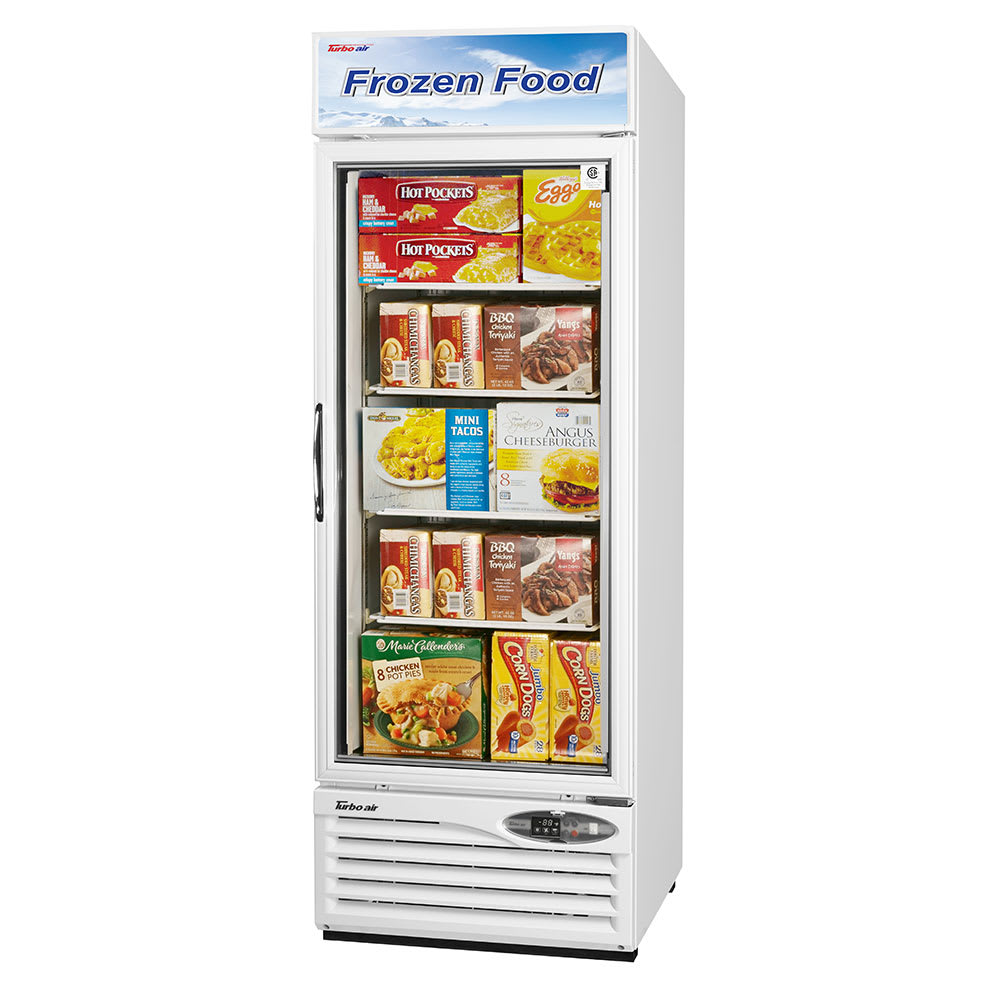

The Turbo Air TGF-23F one-section display freezer features a triple-pane, heated glass door that prevents condensation and obstructed visibility. It has lightweight construction and an ergonomic handle on the door. Inside the cabinet, the wire shelving is coated with polyethylene to resist corrosion. Visibility of products is provided by interior LED lighting. LED lights in the advertising panel draw customers' eyes to the unit to increase sales. The white exterior fits into virtually any theme.

The Turbo Air TGF-23F swing door freezer maintains temperatures from -5 to 10 degrees Fahrenheit. A digital display on the exterior of the cabinet helps the user monitor temperatures. The refrigeration system uses R-404A refrigerant to keep temperatures in the safe zone. Cold air retention and structure are provided by foamed-in-place polyurethane insulation. A defrost system quickly thaws the condenser coils when necessary to ensure the unit runs properly. The evaporator fan delays automatically when the door is opened to prevent taking in hot air.

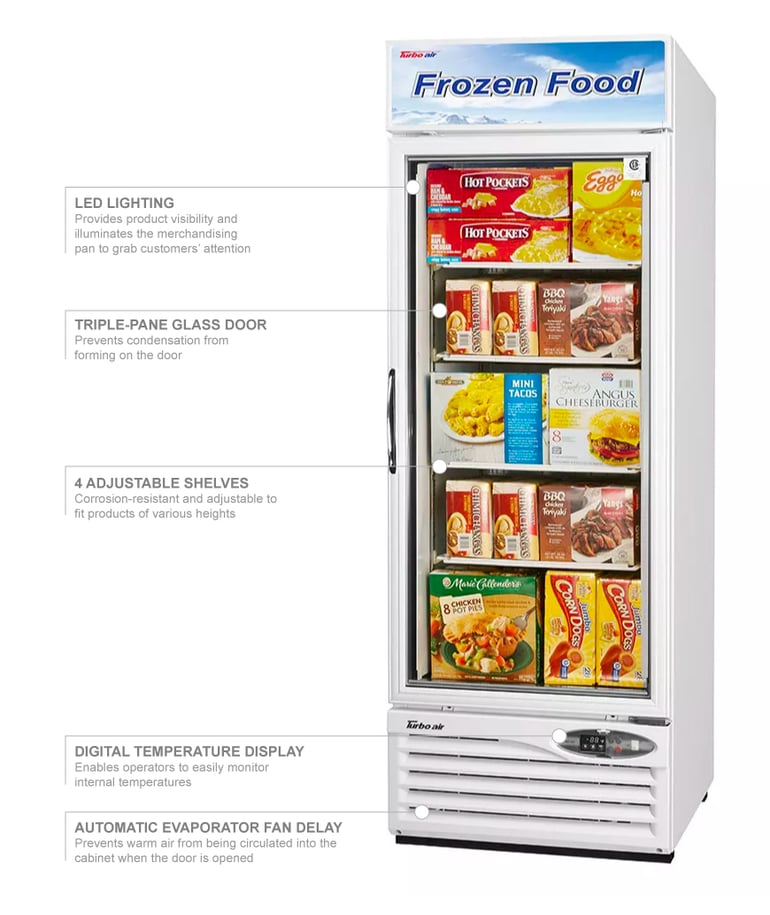

Product Details

  • 4 polyethylene-coated wire shelves are corrosion resistant
  • Adjustable shelving can store a wide variety of products
  • Insulated with foamed-in-place polyurethane to maintain cold temperatures and add structure to the cabinet
  • LED interior lights provide product visibility
  • Advertising panel uses LED lighting to grab the attention of customers and boost sales
  • White exterior
  • 115 V/60 Hz/1 ph, 8.2 A, 23 HP, 9.8-ft. cord with a NEMA 5-15P plug
  • Shelf dimensions: 2112 in. W x 2212 in. D
  • Interior dimensions: 23 in. L x 2418 in. W x 6038 in. H
  • Overall dimensions: 27 in. L x 3118 in. W x 7814 in. H
  • cETLus listed; ISO 9001:2008 and NSF certified

Self-contained Refrigeration System

  • Temperature range: -10 to 5 degrees F
  • R-404A refrigerant maintains temperatures

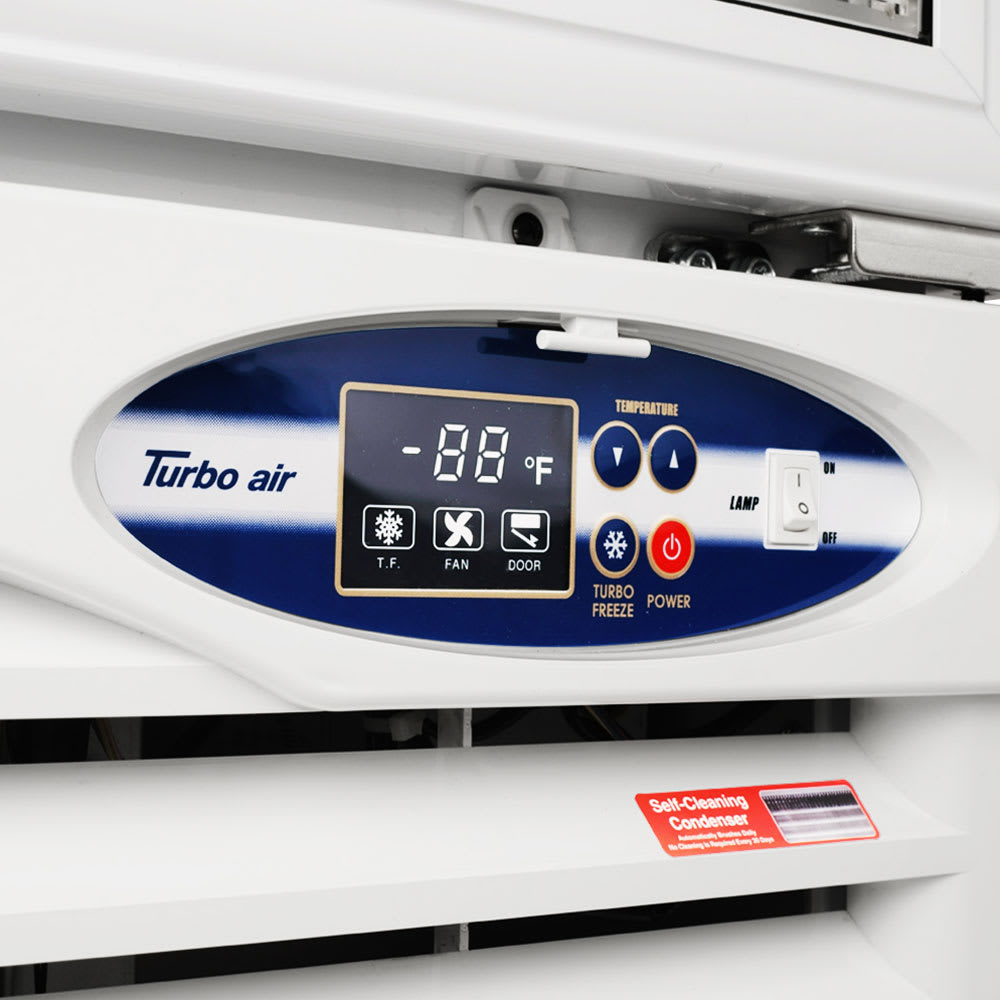

  • Digital display shows temperatures
  • Self-diagnostic program assists maintenance by recognizing issues with system to prevent failures
  • Smart defrost system thaws the condenser coils as needed to ensure the system runs properly
  • Warm air is kept from being sucked into the cabinet since the evaporator fan delays automatically

Lightweight Glass Door

  • Triple-pane heated glass prevents condensation from forming so products are visible
  • Door is lightweight, enabling it to open smoothly
  • Door opens with ergonomically-designed handle
  • Alarm sounds when door is not properly shut to alert the operator and prevent food spoilage
  • Self-closing door helps keep cold air in the cabinet
  • Magnetic gaskets can be removed easily for cleanup

Freezer Merchandiser, one-section, 17.7 cu. ft., self-contained, (1) triple pane heated glass door, LED lighting, (4) adjustable PE coated wire shelves, digital temperature controller, door opening alarm, self-diagnostic monitoring system, automatic fan motor delays, Turbo freezing, smart fuzzy defrosting, LED sign panel, solenoid valve, white exterior, bottom mount compressor, 2/3 HP, 115v/60/1-ph, 8.2 amps, NEMA 5-15P, NSF 7, cETLus

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Turbo Air TGF-23F Specifications

PDF Spec Sheet
Manufacturer Turbo Air
Exterior Width 27
Sections 1
Door Design Swing
Air Intake Front
Compressor Location Bottom
Warranty 3 year parts & labor/5 year compressor
Cubic Feet 23
Specialty Options LED Lighting
Hertz 60
Voltage 115
Phase 1
Weight 376.00
Turbo Air TGF-23F Certifications
  • NSF
  • ETL
