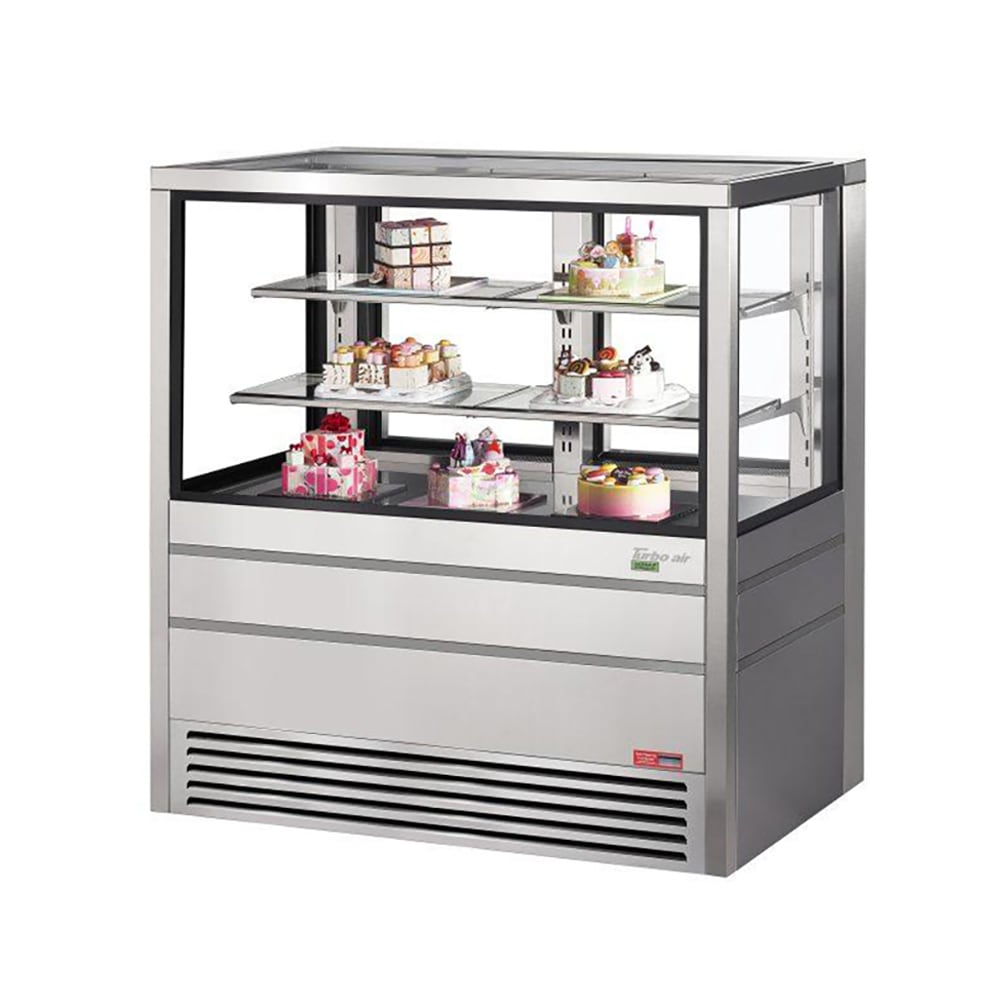

Turbo Air TCGBF-50S-N 49 5/8" Full Service Bakery Display Case w/ Straight Glass - (3) Levels, 220v/1ph

Designed for holding ice cream cakes at ideal temperatures, the Turbo Air TCGBF-50S-N freezer display cases maintains an average temperature of -15 degrees Fahrenheit. Its self-contained refrigeration system operates with eco-friendly R-290 hydrocarbon refrigerant. For efficiency, its condenser automatically cleans itself of dust that could affect performance or even result in system failure. However, if maintenance issues occur, the compressor compartment is simple to access from the rear. Employees can monitor case temperature with the solar-powered digital thermometer and make adjustments with the digital electronic thermostat. To uphold unit efficiency, it shouldn't be installed in areas that exceed 80 degrees Fahrenheit or 55 percent Fahrenheit, and it should also be placed away from HVAC vents, doorways, or fans.

So customers have a full view of product offerings, this dessert case sports a straight, European-style front glass with a minimal case frame. The front, side, and rear panels are made of low-E, coated, triple-pane glass that's tempered for user safety. Inside the case, the three display levels are comprised of two tempered glass shelves with front and rear stainless steel edges and a stainless steel floor. The shelves can be raised or lowered to accommodate various cake sizes and are lined with LED lighting to illuminate the showcased food.

The Turbo Air TCGBF-50S-N freezer dessert case measures 49⁵⁄₈ inches wide by 33¹⁄₂ inches deep by 52⁷⁄₈ inches tall and is positioned on ⁵⁄₈-inch bolts that can be raised to 2³⁄₄ inches for stability on uneven surfaces. Its stainless steel exterior, floor, and airflow grille resist rust, corrosion, and wear to prolong service life and maintain a clean, front-of-house appearance. This full-service unit requires staff to retrieve products from the two swing rear doors, and to ease product insertion and removal, these doors can remain open or self-close.

Product Details

• Interior capacity: 16.88 cu. ft.
• Full-service unit
• 3 display levels
• Stainless steel display deck
• 2 adjustable tempered glass shelves with stainless steel front and back edges
• LED lights located beneath each shelf
• Minimal-style frame enhances product visibility
• Low-E, coated, triple-panel, and tempered glass panels
• Straight front glass
• 2 rear swing-out doors self-close
• Rugged stainless steel airflow grille and exterior
• Cabinet foamed in place with CFC-free, high-density polyurethane insulation
• Bolt height can be raised from ⁵⁄₈ in. to 2³⁄₄ in.
• Solar-powered digital thermometer
• Digital electronic thermostat with defrost control
• Rear-accessible compressor compartment
• Should not be installed in settings exceeding 80 degrees F and 55 percent humidity
• Should not be installed near HVAC vents, fans, or doorways

Refrigeration System

• Self-contained configuration
• Environmentally friendly R-290 hydrocarbon refrigerant
• Average operating temperature: -15 degrees F
• Patented, automatic self-cleaning condenser

Dimensions & Utilities

• Shelves: (2) 43¹⁄₄ in. W x 13 in. D
• Interior: 45³⁄₄ in. W x 22³⁄₄ in. D x 23¹⁄₈ in. H
• Overall: 49⁵⁄₈ in. W x 33¹⁄₂ in. D x 52⁷⁄₈ in. H
• 13 A, (2) 1 HP
• 220 V/60 Hz/1 ph, 9⁷⁄₈-ft. cord with NEMA 6-20P plug

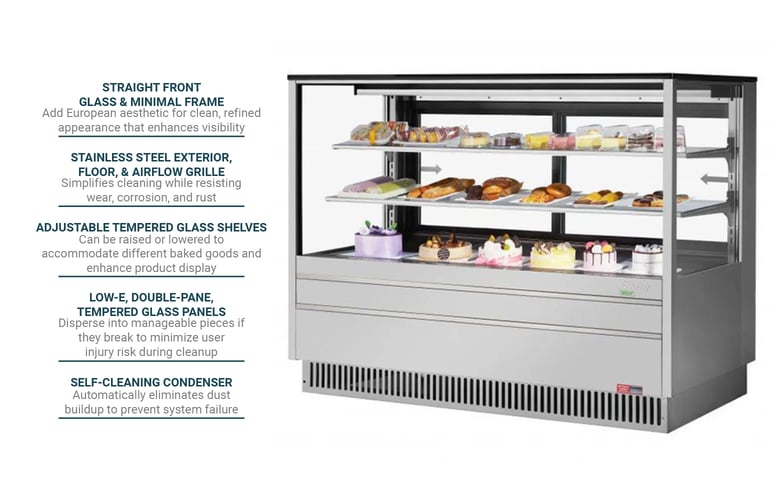

Product Features

*Free shipping on Turbo Air TCGBF-50S-N within the 48 contiguous states.

From The Manufacturer

Display Case, freezer, 16.88 cu.ft. capacity, 49-5/8"W x 33-1/2"D x 52-1/4"H, self-contained refrigeration with self-cleaning condenser, straight front tempered glass, swing rear doors, electronic thermostat with defrost control, LED interior lighting, (2) adjustable tempered glass shelves, stainless steel floor & air flow grille, stainless steel exterior, rear access compressor compartment, R290 Hydrocarbon refrigerant, (2) 1 HP, 220v/60/1-ph, 13 amps, cord with NEMA 6-20P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

2-year Limited Parts & Labor; 5-year Compressor Parts
