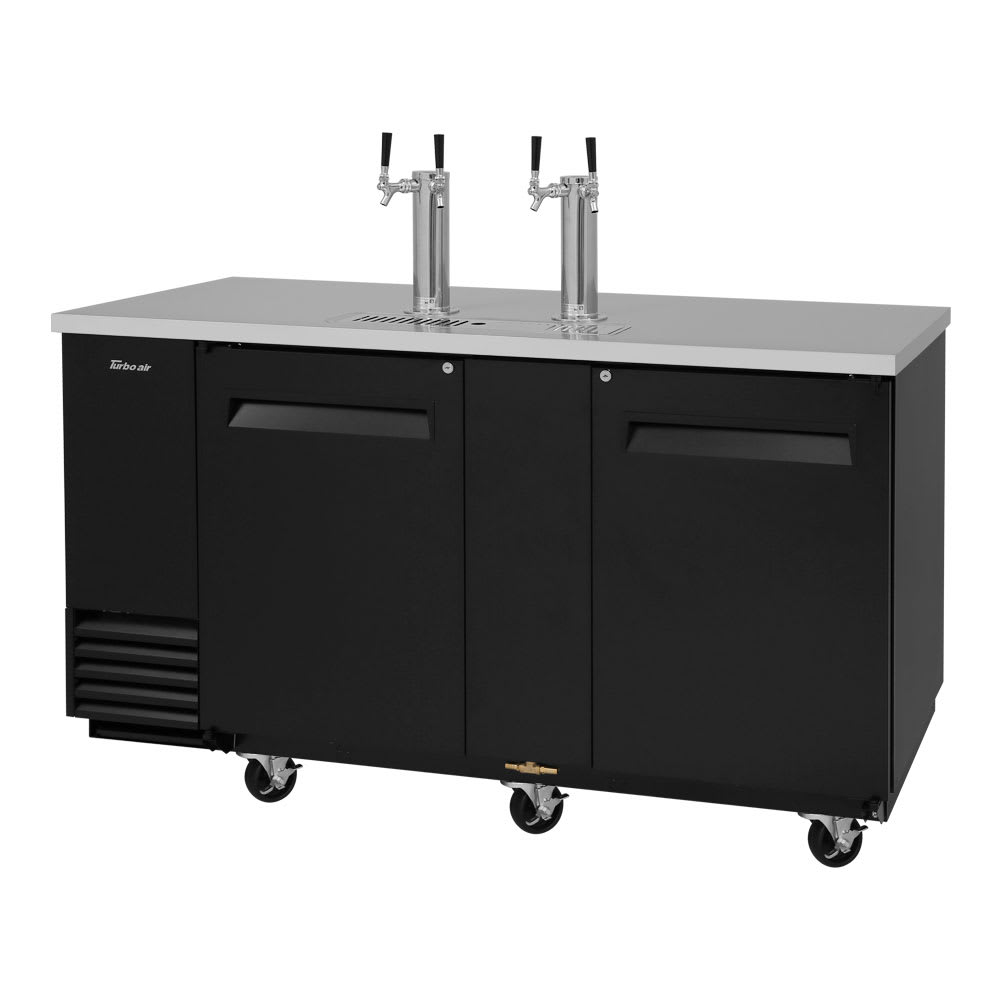

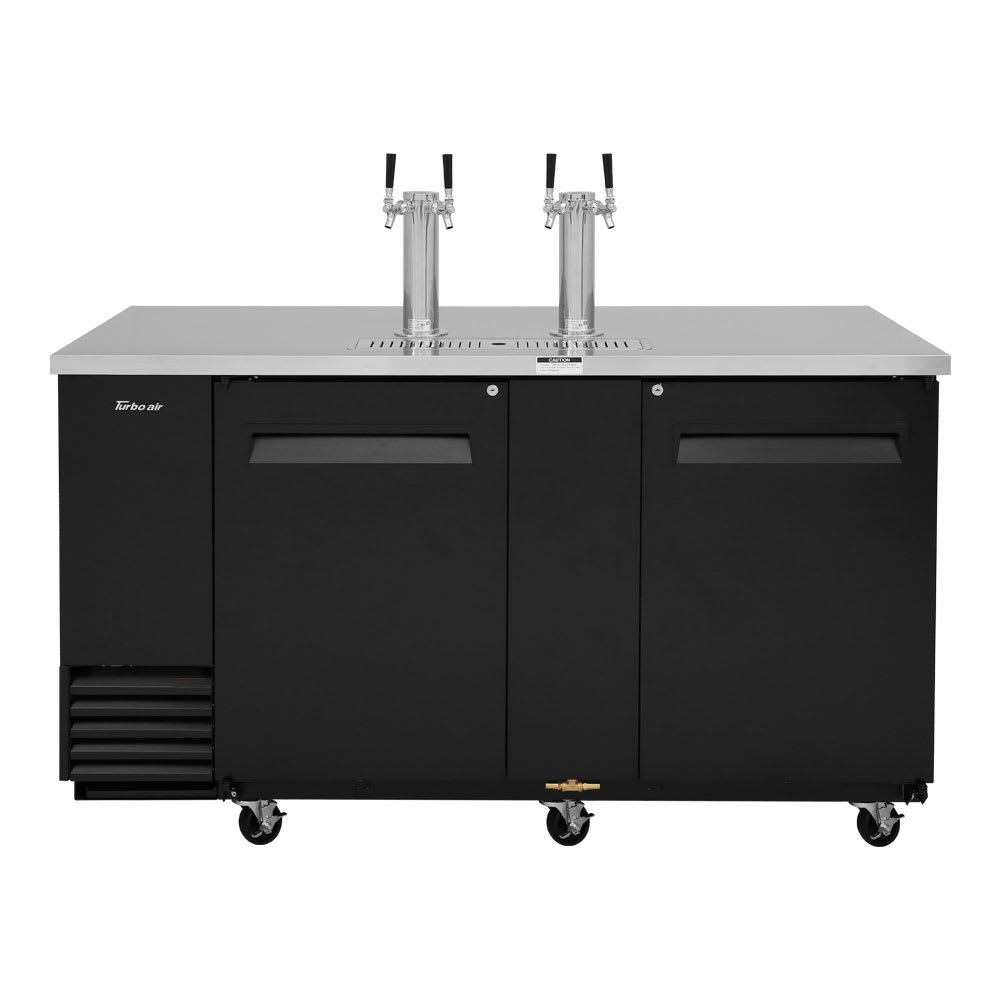

Turbo Air TBD-3SB 69" Draft Beer System w/ (3) Keg Capacity - (2) Columns, Black, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 083-TBD3SB • MPN: TBD-3SB
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $7,921.00
$2,744.63 / Each

Image may not depict product color, inclusions or accessories.

Turbo Air TBD-3SB Description

Turbo Air

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TBD-3SB-N. Here are details about that model:

Super Deluxe Beer Dispenser, 69-1/8"W, self-cleaning condenser equipped, (2) swing doors with locks, stainless steel countertop & black exterior, stainless steel inside walls & floor, galvanized steel interior top, (3) 1/2 barrel capacity, (2) 3" dia. stainless steel insulated beer columns with double faucet, door locks, recessed handles, side mount, front breathing, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 2.5 amps, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®

The Turbo Air TBD-3SB beer dispenser holds up to three half-barrel kegs and dispenses beer through two insulated towers. To save space in the cabinet, a four-way manifold is used to connect to a single carbon dioxide line for each of the four lines. Temperatures ranging from 33 to 38 degrees Fahrenheit are maintained by the R-290 hydrocarbon refrigerant.

The countertop is constructed of stainless steel for strength and durability. Its wear-resistant black vinyl exterior matches virtually any theme. High-density polyurethane foam insulation gives the cabinet structure and retains cold temperatures for efficiency. The Turbo Air TBD-3SB draft beer system has a self-cleaning condenser that removes dust to prevent overheating that can lead to system failure.

Product Details

  • 3 half-barrel keg capacity
  • Foamed-in-place, high-density polyurethane insulation seals in cold air and provides structure
  • Durable stainless steel countertop is easy to clean and sanitize
  • Black vinyl exterior withstands scratches and dents

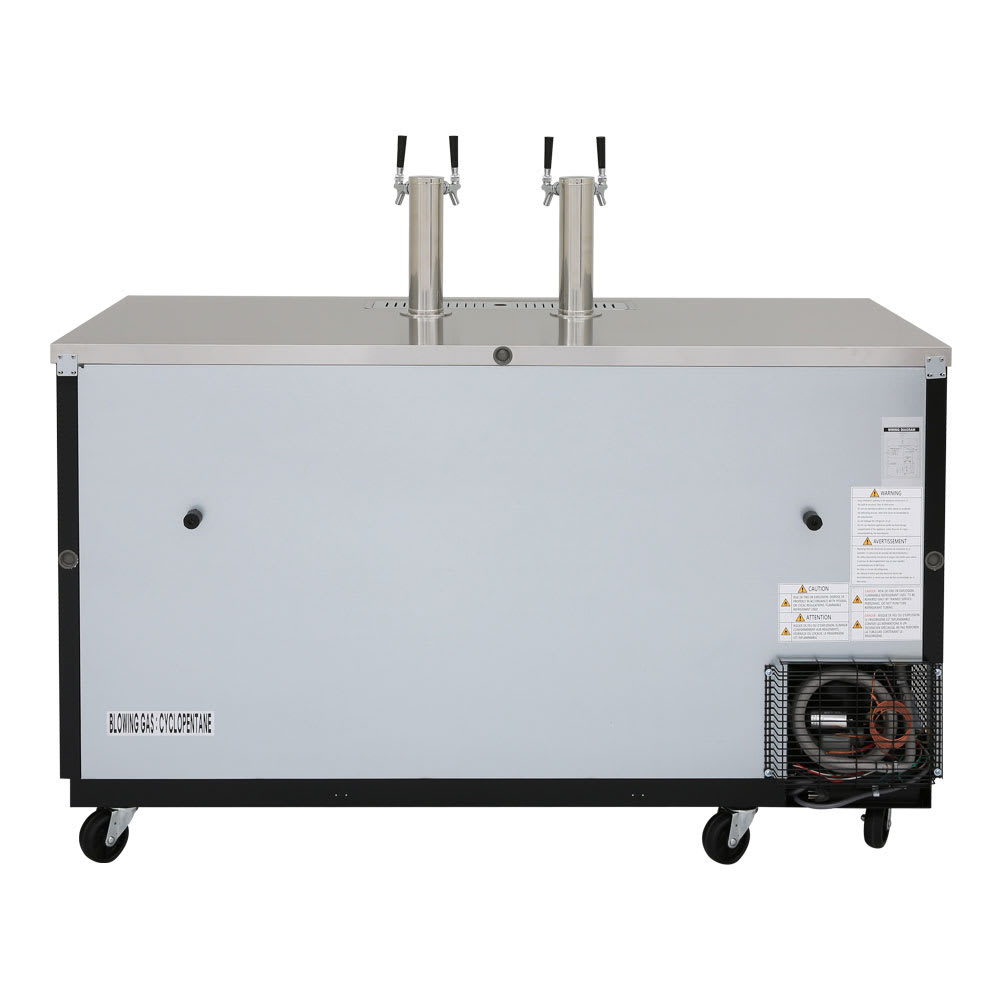

  • Side-mounted compressor is accessible for maintenance

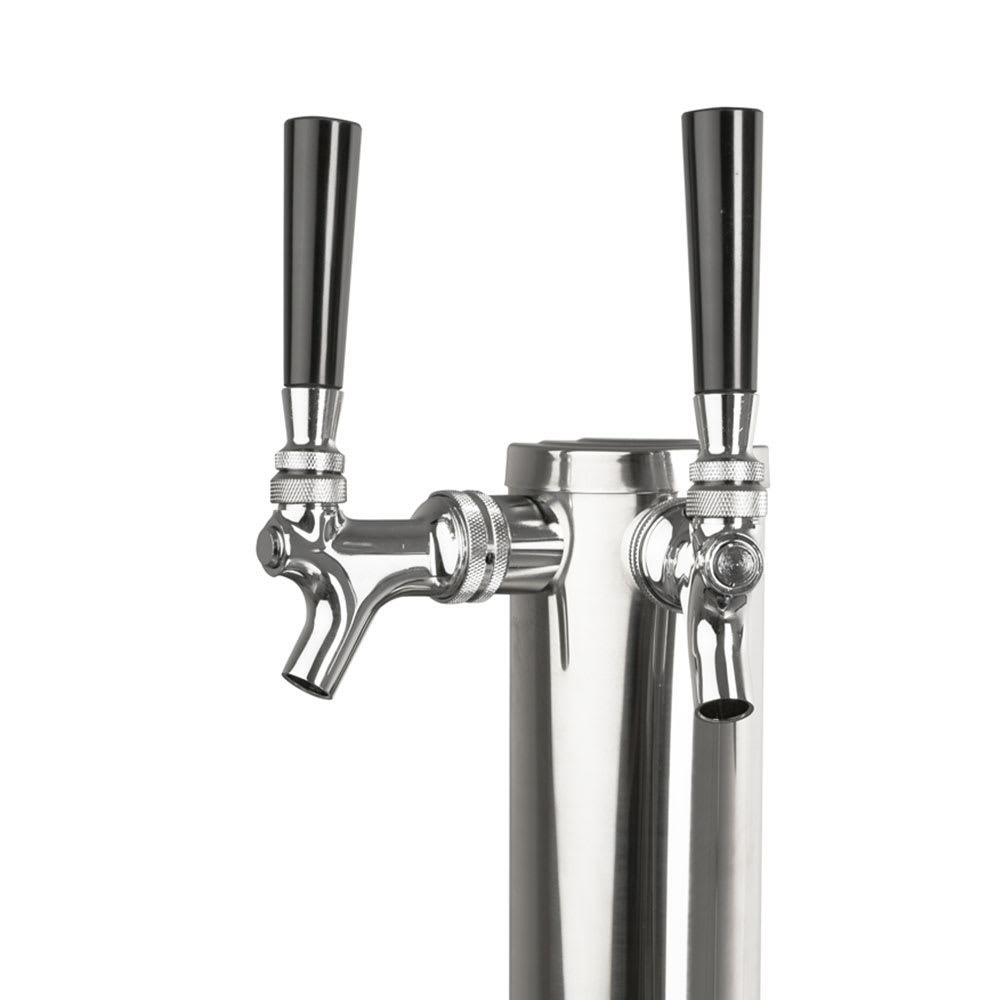

  • 2 insulated stainless steel beer towers dispense beer from 2 faucets on each tower
  • 4-way manifold enables a single CO2 line to run to all 4 beer lines
  • 2 self-closing doors help retain cold air
  • Doors lock to deter tampering and theft
  • (6) 4-in.-dia. swivel casters provide maneuverability
  • 115 V/60 Hz/1 ph, 7 A, 13 HP, 9.8-ft. cord with a NEMA 5-15P plug
  • Overall dimensions: 6918 in. L x 2918 in. W x 5678 in. H
  • cETLus listed; ISO 9001:2008 and NSF certified

Heavy-duty Refrigeration System

  • Condenser is equipped with a self-cleaning device that removes dust and debris to prevent the unit from overheating
  • Corrosion-resistant coating on evaporator
  • Forced air cooling system evenly distributes air throughout the cabinet
  • Temperature range: 33-38 degrees F
  • R-134 hydrocarbon refrigerant

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TBD-3SB-N. Here are details about that model:

Super Deluxe Beer Dispenser, 69-1/8" L, self-cleaning condenser equipped, (2) swing doors, stainless steel countertop & black exterior, stainless steel inside walls & floor, galvanized steel interior top, (3) 1/2 barrel capacity, (2) 3" dia. stainless steel insulated beer columns with double faucet, door locks, recessed handles, side mount, front breathing, 4" casters, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 2.5 amps, NEMA 5-15P, ETL-Sanitation, cETLus, ENERGY STAR®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Turbo Air TBD-3SB Specifications

PDF Spec Sheet
Manufacturer Turbo Air
Base Casters
Compressor Location Left
Exterior Finish Black Laminate
Keg Capacity 3
Number of Columns 2
Number of Taps 4
Warranty 3 year parts & labor/5 year compressor
Width (in) 69
Width (in) Range 59 - 96 in
Hertz 60
Voltage 115
Phase 1
Weight 348.00
Turbo Air TBD-3SB Certifications
  • ETL
