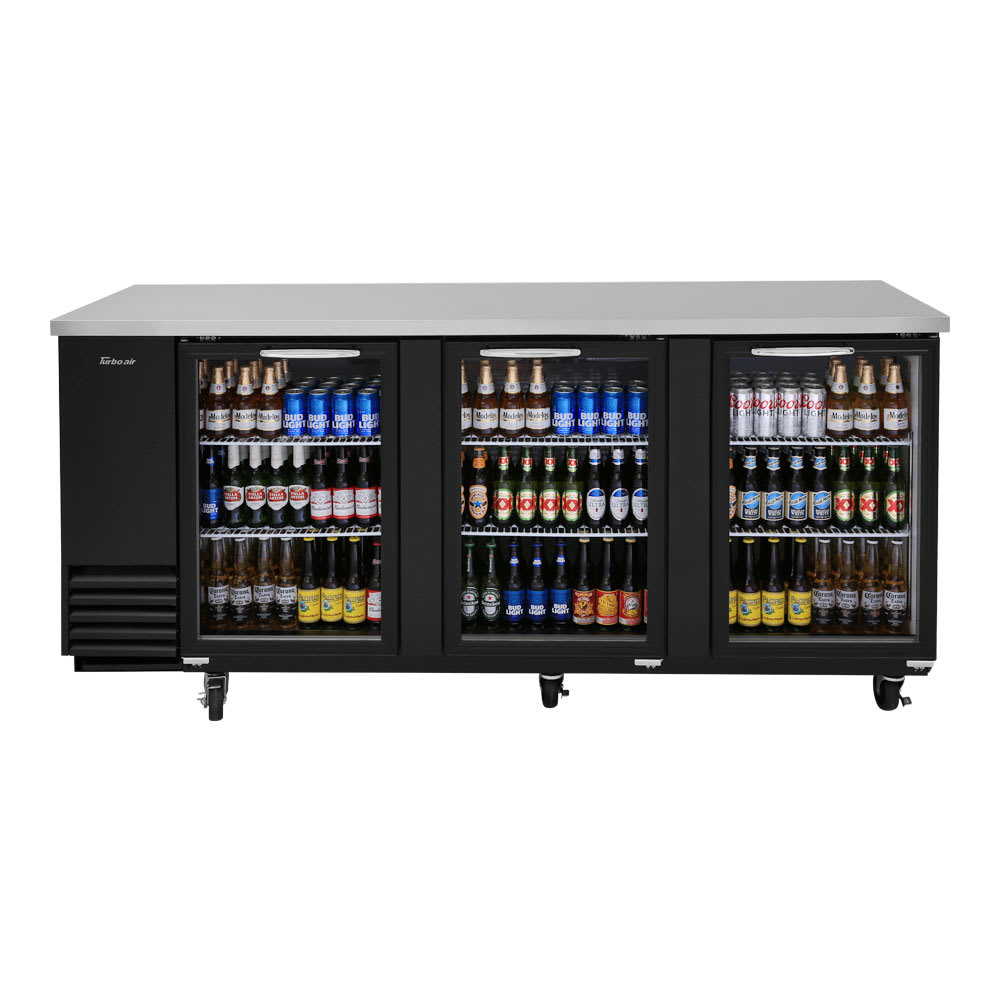

Turbo Air TBB-4SG 90" (3) Section Bar Refrigerator - Swinging Glass Doors, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 083-TBB4SG • MPN: TBB-4SG
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $8,796.00
$3,047.81 / Each

Image may not depict product color, inclusions or accessories.

Turbo Air TBB-4SG Description

Turbo Air

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the TBB-4SG-N. Here are details about that model:

Back Bar Cooler, three-section, Glass Doors, 90.38" W x 27.25" D x 37.13" H, 30 cu.ft., self-contained, side mount, front breathing, (8) PE coated adjustable shelves, LED interior light, black laminated exterior & stainless steel countertop, stainless steel interior floor, white powder coated galvanized steel interior top & walls, (3) glass doors-double pane, Low-E glass, 4" swivel casters (standard), R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 3.3 amps, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®

The Turbo Air TBB-4SG-N Super Deluxe back bar refrigerator adds product visibility with the Low-E, double pane glass doors. The three easy-grip doors have ergonomic handles. LED lighting in the interior enhances the display so staff can see the contents. Since the countertop is made of stainless steel, it can be used for prepping garnishes and straightforward cleanup. The exterior is finished with a black vinyl material that adds durability.

With R-290 hydrocarbon refrigerant, temperatures in the refrigerator stay between 33 and 38 degrees Fahrenheit. Foamed-in-place, high-density polyurethane insulation retains cold temperatures and creates structure in the cabinet. Using a forced air cooling system, the interior is cooled quickly and the temperatures are balanced. The self-cleaning device brushes dust off the condenser daily to prevent a premature system failure. Mounted on the side of the unit, the compressor is accessible when servicing is needed. The Turbo Air TBB-4SG-N Super Deluxe back bar cooler can be moved for cleaning and servicing with six 4-inch casters.

Product Features

Turbo Air tbb4sg Features

Product Details

  • Glass doors provide a view of the stored product
  • Low-emissivity, double pane glass seals in cold air
  • Doors have easy-grip, ergonomic handles
  • Durable stainless steel countertop is easy to clean and corrosion resistant
  • Black vinyl exterior provides durability
  • Galvanized steel construction is built for commercial applications
  • 8 corrosion-resistant, polyethylene-coated wire shelves can be adjusted for accommodating various products
  • CFC-free, foamed-in-place polyurethane insulation adds structure and maintains cold temperatures
  • LED-illuminated interior makes products noticeable
  • Mobile with (6) 4-in.-dia. swivel casters
  • 115 V/60 Hz/1 ph, 3.3 A, 13 HP, 9-ft. cord with a NEMA 5-15P plug
  • Right shelf dimensions: 2214 in. W x 1938 in. D
  • Left shelf dimensions: 2612 in. W x 1938 in. D
  • Middle shelf dimensions: 2534 in. W x 1938 in. D
  • Overall dimensions: 9038 in. W x 3014 in. D x 4218 in. H
  • cETLus and ETL Sanitation listed; ISO 9001:2008 and ENERGY STAR certified

Self-contained Refrigeration System

  • Temperature range: 33-38 degrees F
  • R-290 hydrocarbon refrigerant maintains the cold temperatures
  • Forced air system offers quick, balanced cooling
  • Self-cleaning condenser device prevents a premature system failure by removing dust 2-3 times daily
  • Coated evaporator is resistant to corrosion
  • All components are built together with the self-contained system
  • Side-mounted compressor is accessible for servicing

Back Bar Cooler, three-section, Glass Doors, 90.37" W x 27.25" D x 37.1" H, self-contained, (8) PE coated adjustable shelves, fluorescent interior light, stainless steel countertop & black laminated exterior, galvanized steel interior top & inside walls, (3) glass doors, 4" swivel casters (standard), 1/3 HP, 115v/60/1, 7.5 amps, cord with NEMA 5-15P, ETL-Sanitation, ETL, cETL

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Turbo Air TBB-4SG Specifications

PDF Spec Sheet
Manufacturer Turbo Air
Base Casters
Compressor Location Right
Door Design Swinging
Door Type Glass
Exterior Finish Black Laminate
Number of Levels 4
Sections 3
Specialty Options Door Locks
Width (in) 90
Warranty 3 year P&L / 5 year compressor
Width (in) Range 80 - 110 in
Hertz 60
Voltage 115
Phase 1
Weight 485.00
Turbo Air TBB-4SG Certifications
  • Energy Star
  • ETL
