Turbo Air PRO-26H-GS-PT Full Height Insulated Pass Thru Mobile Heated Cabinet w/ (3) Shelves, 115v

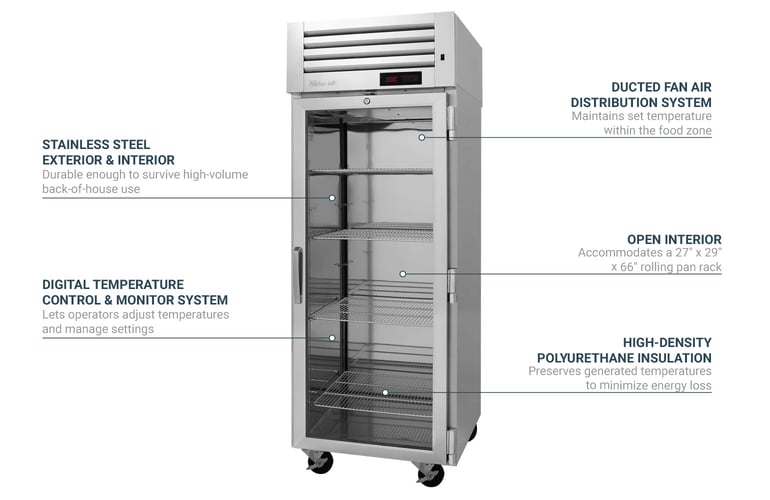

Because the Turbo Air PRO-26H-GS-PT heated cabinet sports a pass-thru design, users can load pans into the glass door and retrieve them from the solid door on the other side. This configuration is great for connecting a food prep station to a serving area, and to ease pan insertion and removal, the doors stay open past 120 degrees. This 28³⁄₄-inch-wide by 38³⁄₄-inch-deep by 83-inch-high cabinet features three 23¹⁄₂-inch-wide by 26³⁄₈-inch-deep stainless steel wire shelves. To ease cleaning and prolong service life through high-volume back-of-house applications, the interior and exterior are made of stainless steel, while the exterior's top and bottom are galvanized steel.

For enhanced preservation until precooked dishes are served, the Turbo Air PRO-26H-GS-PT pass-thru cabinet maintains temperatures from 140 and 180 degrees Fahrenheit. Staff can modify and manage temperatures with the digital temperature control and monitoring system, while the ducted fan air distribution system retains heat near the food zone to preserve flavor and moisture. To minimize energy loss, the cabinet is insulated with high-density polyurethane, and an alarm beeps when the doors remain open for extended periods of time. This unit also features an early warning program that notifies operators of issues before malfunctions occur.

Product Details

• Part of the PRO series
• 26.2-cu.-ft. interior volume
• Full-height, 1-section unit
• Pass-thru design
• 22-ga. stainless steel exterior
• Galvanized steel exterior top and bottom
• Stainless steel interior
• 3 stainless steel wire shelves
• Sturdy, solid grille configuration
• Foamed-in-place, CFC-free, high-density polyurethane insulation
• 2 lockable, right-hinged front and back glass doors
• Self-closing doors stay open past 120 degrees
• 1-piece magnetic door gaskets are replaceable
• LED interior lighting
• 4-in.-diameter swivel casters with locks on front set
• Operating temperature range: 140-180 degrees F
• Ducted fan air distribution system
• Digital temperature control and monitor system
• Alarm beeps if doors aren't sealed
• Early warning program detects issues to reduce risk of malfunction
• Digital display
• Sensitive-touch display
• On/off switch located on control panel

Dimensions & Utilities

• Shelves: (3) 23¹⁄₂ in. W x 26³⁄₈ in. D
• Interior: 23¹⁄₂ in. W x 27⁵⁄₈ in. D x 58³⁄₄ in. H
• Overall: 28³⁄₄ in. W x 38³⁄₄ in. D x 83 in. H
• 13.5 A, 1550 W
• 115 V/60 Hz/1 ph, 8-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Turbo Air PRO-26H-GS-PT within the 48 contiguous states.

From The Manufacturer

PRO Series Heated Cabinet, pass-thru, one-section, 26.2 cu. ft.,(1) hinged front glass door & (1) right hinged rear solid door with locks & stay open feature, lifetime guaranteed heavy duty hinges & handles, digital temperature control, LED interior lighting, (3) stainless steel wire shelves, stainless steel interior, 22 gauge stainless steel exterior (galvanized steel top & bottom), 1550 watts, 115v/60/1-ph, 13.5 amps, cord with NEMA 5-15P, ETLus, ETL-Sanitation, Energy Star®, Made in USA

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor
