Winston RTV5-05UV-ST Half Size CVap® Rethermalizer Oven - Right Hinge, 240v/1ph
Selected Voltage: 240V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Winston RTV5-05UV-ST Description

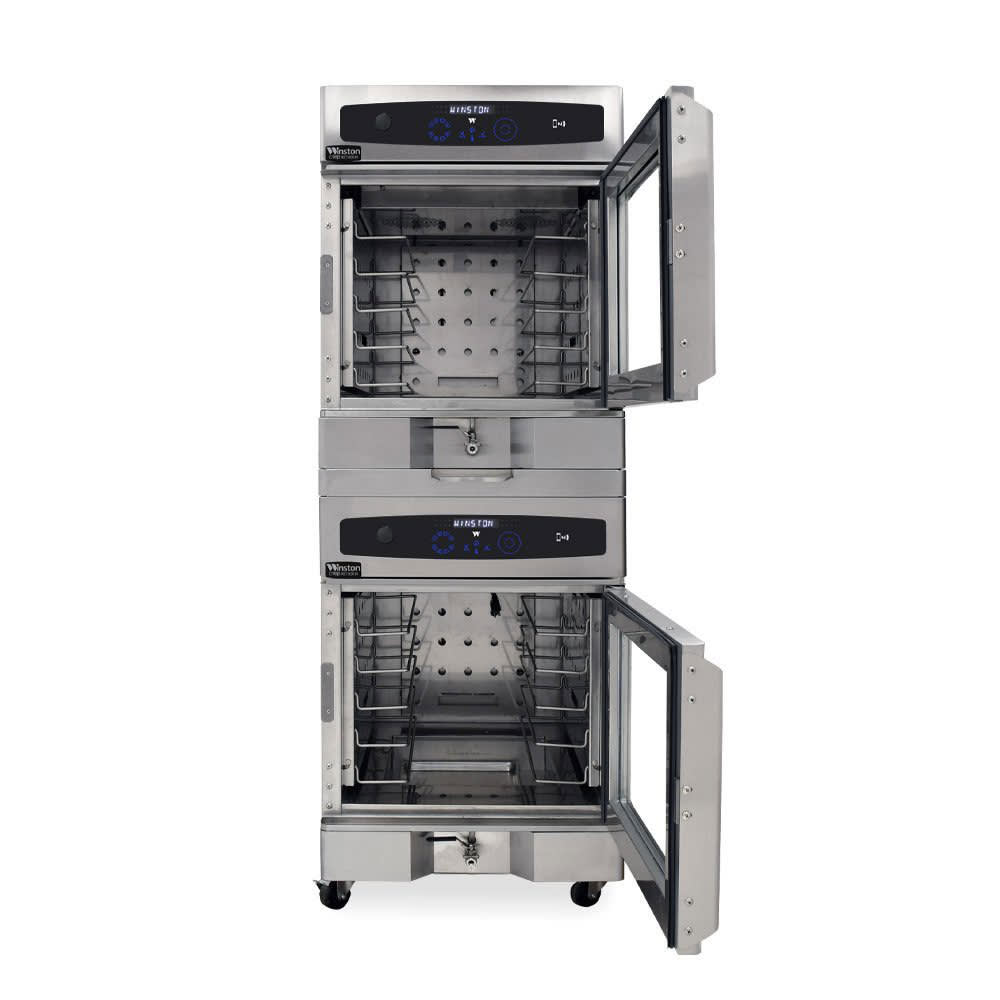

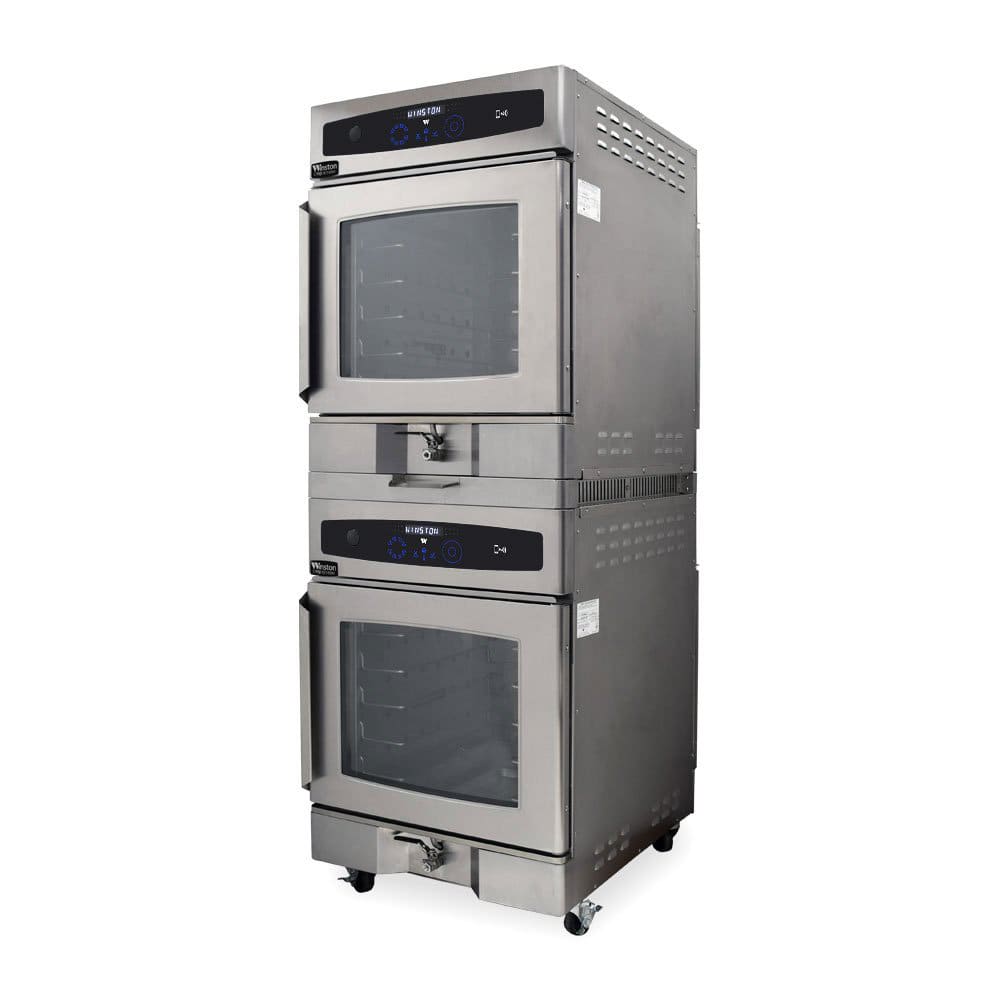

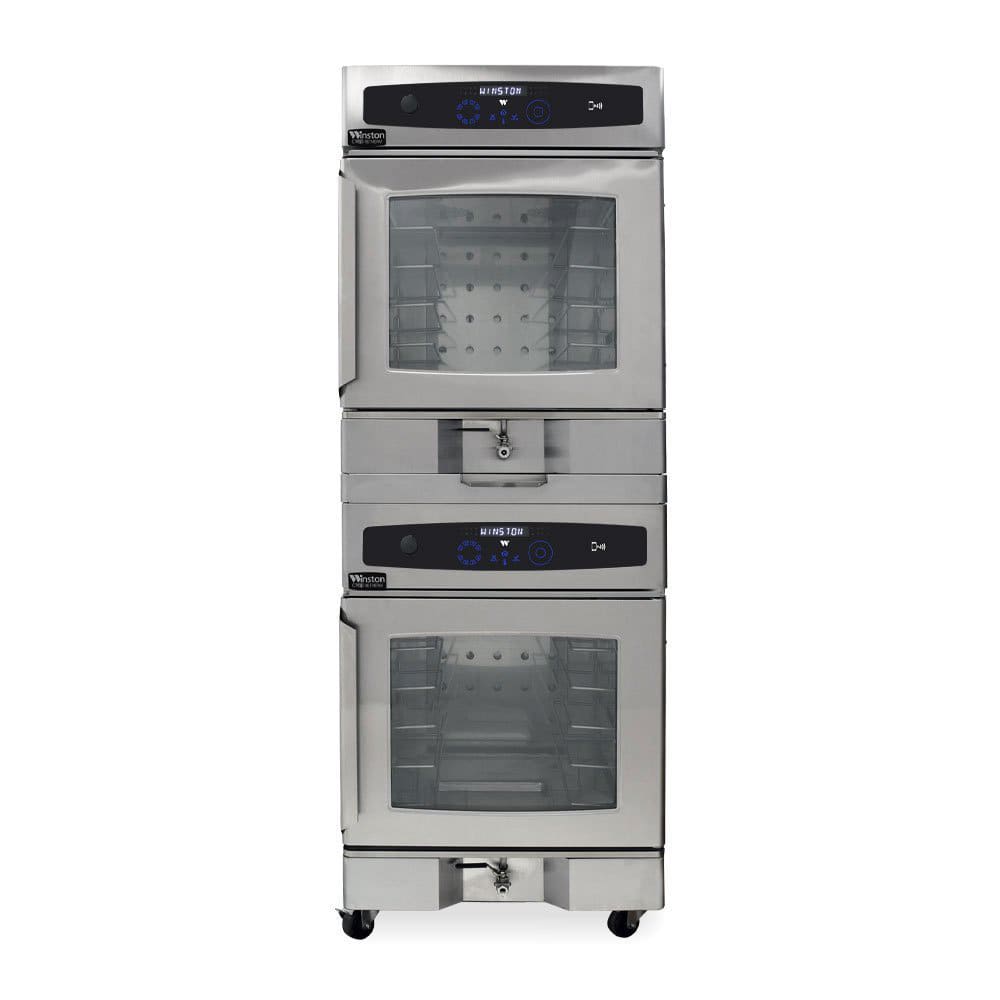

The Winston RTV5-05UV-ST half-size oven is ideal for mid- and high-volume operations. Featuring a stackable design, this oven has 9 cubic feet of interior space that can store (10) 18-inch by 26-inch sheet pans, (20) 13-inch by 18-inch sheet pans, or (20) 12-inch by 20-inch hotel pans on racks that can support 65 pounds each. Fitted to the body are two solid doors with magnetic handles, while the automatic-water fill utilizes 1/4-inch National Pipe Thread. The unit measures 277/10 inches wide by 341/4 inches deep by 764/5 inches high and requires a 2-inch clearance at the sides.

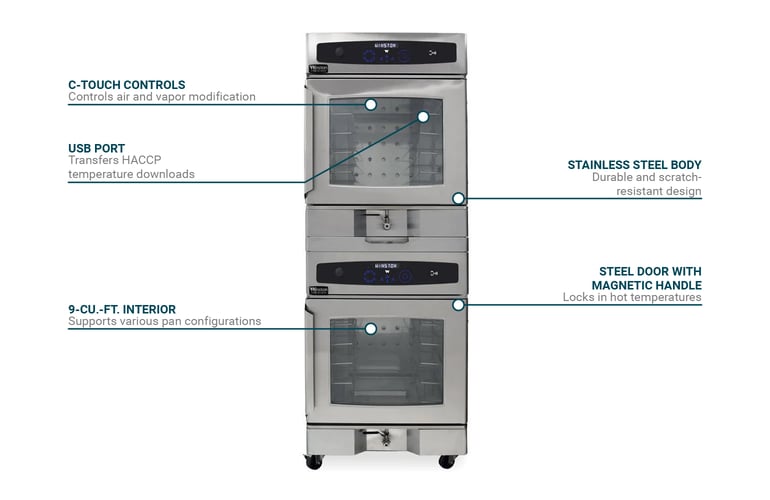

The interior and exterior of the Winston RTV5-05UV-ST half-size oven are made of heavy-duty stainless steel. A C-Touch control panel at the front features eight total channels including moist bake, bake, retherm, crispy bake, gentle steam, beef roasting, max cook, and all-purpose hold options. Users can easily change the pre-set settings and adjust vapor and air temperature in 1-degree Fahrenheit increments. For maneuverability, the unit is mounted on 3-inch casters.
Product Details
- From the CVap® series
- 9-cu.-ft. interior space
- Holds (10) 18 in. x 26 in. sheet pans, (20) 13 in. x 18 in. sheet pans, or (20) 12 in. x 20 in. hotel pans
- Can support 65 lb. per rack
- 2 hinged, solid doors are field reversible
- Magnetic handle
- C-touch control with processor
- HACCP temperature downloads
- USB and audio ports
- Automatic-water fill technology
- Interior and exterior made of stainless steel
- 3-in. casters
Dimensions & Utilities
- 277/10 in. W x 341/4 in. D x 764/5 in. H
- 32.65 A, 7838 W
- 240 V/60 Hz/1 ph, with 84-in. NEMA 6-50P plug
Product Features
*Winston RTV5-05UV-ST is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
CVap® Thermalizer Oven, electric, stacked, half-size, two compartment, insulated, convection cooking, 9.0 cu. ft., accommodates (10) 18" x 26" sheet pans or (20) 13" x 18" sheet pans or (20) 12" x 20" hotel pans, load limit 65 lbs (29.25 kg) per rack, (2) field reversible hinged solid doors, magnetic door handle, C-Touch control with processor, HACCP temperature downloads, CVap technology, USB & audio ports, auto water fill, stainless steel interior & exterior, CE, UL EPH ANSI/NSF4, cUL, UL-Sanitation
*Image may not depict product color, inclusions or accessories.
Winston RTV5-05UV-ST Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Winston |
| Base | Casters |
| Cavities | 2 |
| Controls | Digital |
| Depth (in) | 34.23 |
| Door Construction | Solid Only |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 76.82 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Construction | Stainless Steel |
| kW | 7.84 |
| NEMA | 6-50P |
| Number of Ovens | Double |
| Pan Capacity | 10 |
| Phase | 1 |
| Product | Rethermalizers |
| Product Type | Food Warming Equipment |
| Series | CVap® |
| Size | Half Size |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 27.7 |
| Weight | 500.00 |
