Winston LP46 64 lb Electric Pressure Chicken Fryer - 240v/1ph
Selected Voltage: 240V, 1 Phase
| 208V, 3 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability

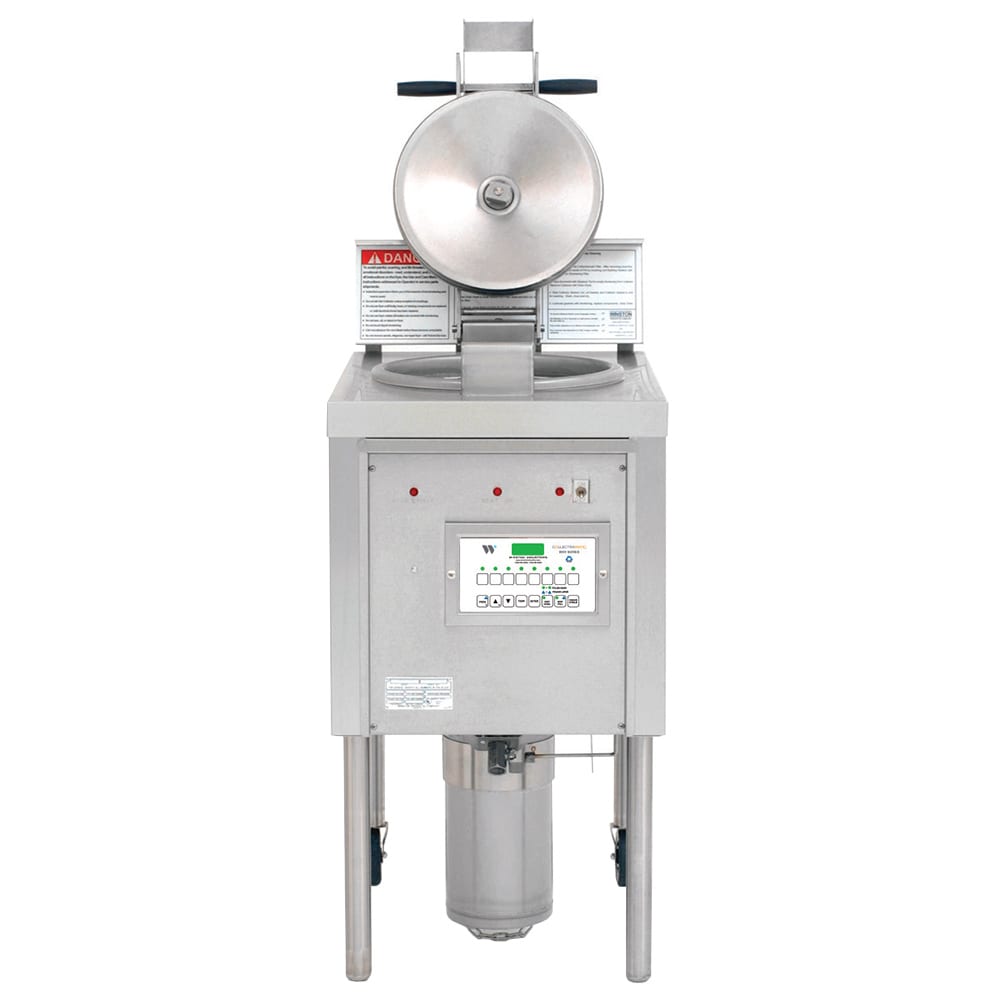

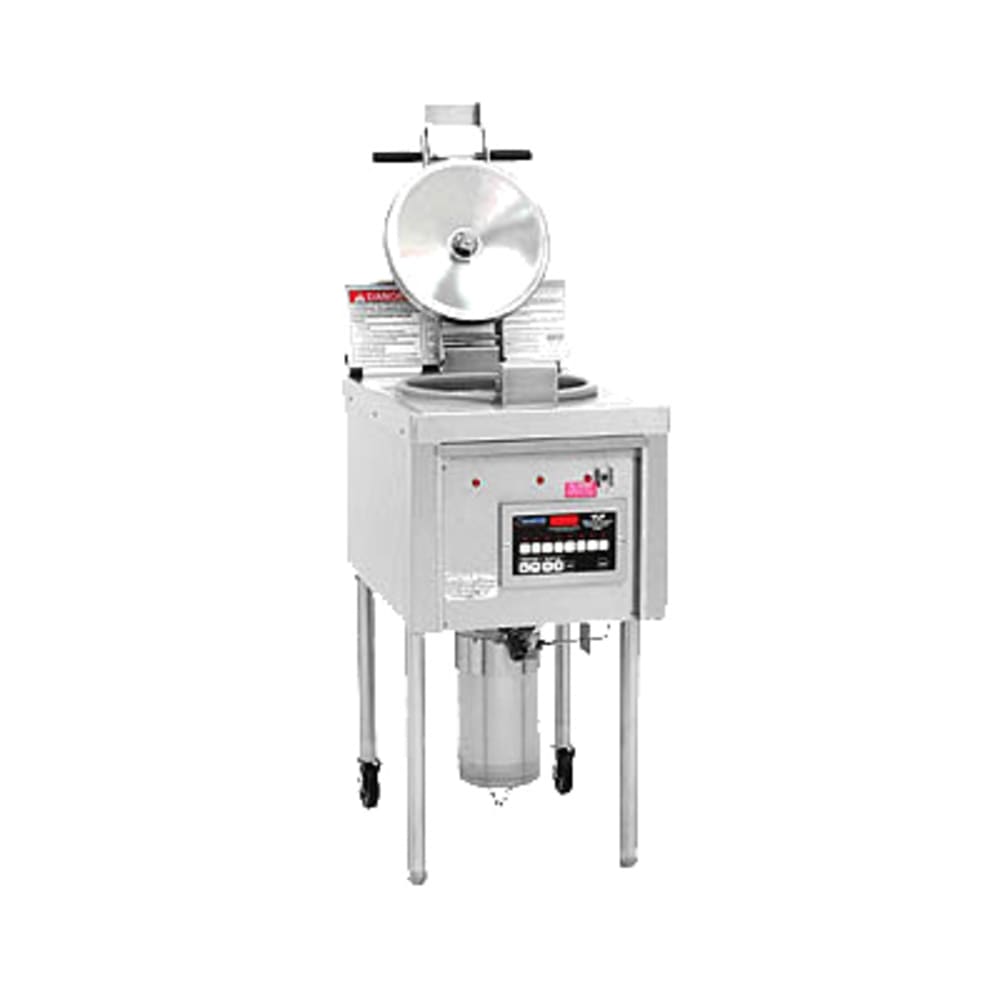

Winston LP46 Description
Designed to minimize user maintenance, the Winston LP46 Collectramatic® pressure fryer cooks roughly 20 to 30 cook cycles without the need to manually filter product or empty the 13-inch-deep collector. This unit's microprocessor control is equipped with eight channels, enabling programming of as many as six temperatures and several time settings for each cooking cycle, streamlining food preparation. For time-specific needs, settings can be modified to cook as many as 18 pounds of chicken in 10 minutes. The versatile Flex-Time mechanism is also integrated into the controller to accommodate product with different sizes. Overall, this four-head unit has a maximum capacity of 14 pounds of frozen or refrigerated products and 64 pounds of cooking oil.
Made of durable stainless steel, the Winston LP46 commercial pressure fryer is geared to endure common wear from loading product and cooking foods at high temperatures. To reduce risk of user injury, the cooking chamber fully includes a 11⁄2-inch layer of insulation. It's mounted on four adjustable legs to account for uneven surfaces, and it measures 201/5 inches wide by 30 inches deep by 50 inches high. This unit includes various accessories, such as a clamshell basket, a drain hook, a heat plate, a Teflon® brush, a long collector, a spatula, two collector gaskets, and two lid gaskets.
Product Details

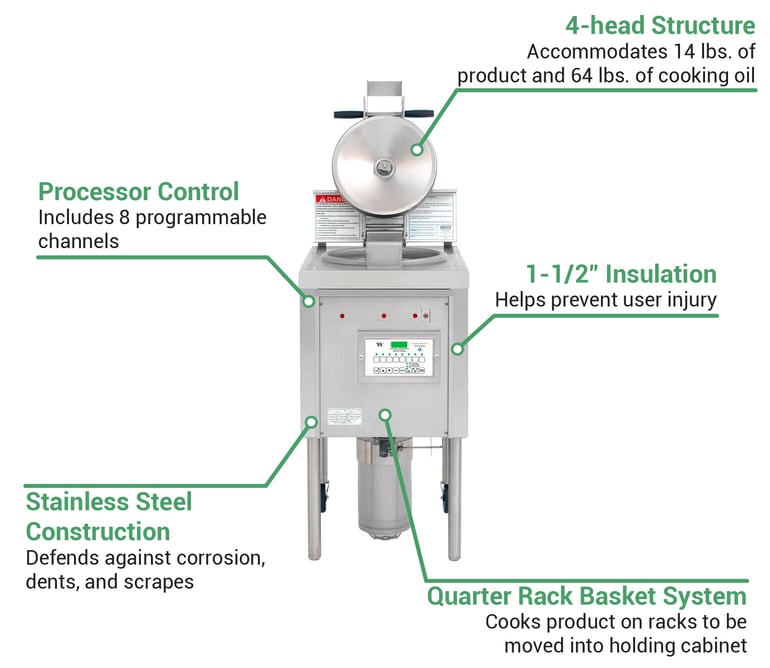

- Part of the Collectramatic series
- 4-head structure
- Product capacity: 14 lbs.
- Cooking oil capacity: 64 lbs.
- Processor control with 8 programmable channels
- Flex-Time mechanism supports varying product size
- Stainless steel construction
- 13-in.-deep collector
- Quarter Rack basket system
- Adjustable stainless steel legs
- 11⁄2-in. insulation
- Includes clamshell basket, drain hook, heat plate, Teflon brush, long collector, spatula, 2 collector gaskets, and 2 lid gaskets
- Ventilation required
Dimensions & Utilities
- 201/5 in. W x 30 in. D x 50 in. H
- 43.7 A, 10500 W
- 240 V/60 Hz/1 ph, cord and plug not included
Product Features
From The Manufacturer
Collectramatic® Pressure Fryer, compact, (4) head (12 lbs. product/64 lbs. cooking oil capacity), processor control with 8 programmable channels, full 1-1/2" insulation, mounted, includes (1) clamshell basket, (2) collector gaskets, (2) lid gaskets, (1) spatula, (1) drain hook, (1) pair gloves, (1) Teflon® brush, (1) long collector, (1) plugging tool, (1) displacer tool, (1) heat plate, & (4) adjustable legs, stainless steel construction, UL, cUL, UL-Sanitation, NSF, 240v/60/1ph
*Image may not depict product color, inclusions or accessories.
Winston LP46 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Winston |
| Base | Legs |
| Capacity (lbs) | 12 |
| Chicken Piece Capacity | 36 |
| Controls | Digital |
| Depth (in) | 30 |
| Heat | Electric |
| Height (in) | 50 |
| Hertz | 60 |
| kW | 10.5 |
| Oil Capacity/Fryer (lb) | 64 |
| Phase | 1 |
| Product | Pressure Fryers |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Collectramatic® |
| Special Features | Programmable Controls |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 20.2 |
| Weight | 165.00 |
Important Prop 65 information for California residents.
