Winston HC4009 Undercounter Insulated Mobile Heated Cabinet w/ (6) Pan Capacity, 120v
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Winholt NHPL-1825-UNC-DGT
Full Height Non-Insulated Mobile Heated Cabinet w/ (28) Pan Capacity, 120v

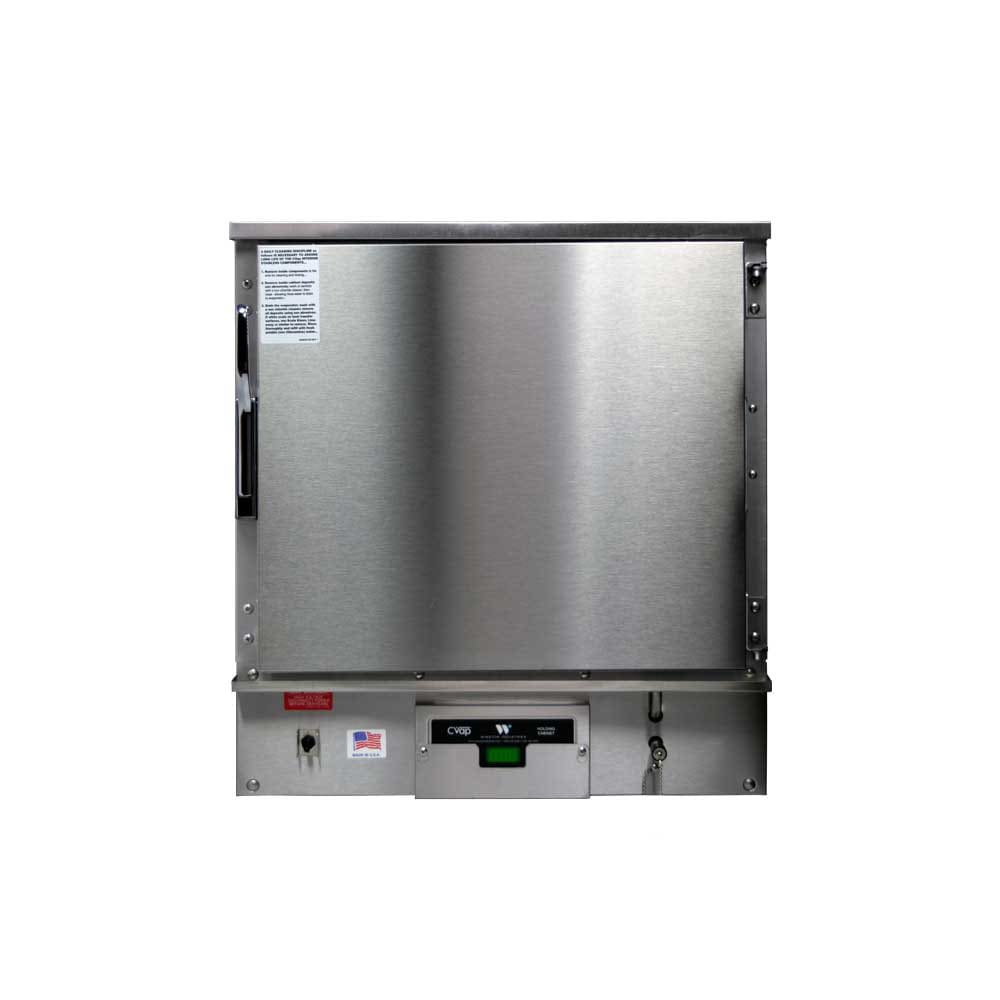

Winston HC4009 Description
The Winston HC4009 undercounter insulated mobile heated cabinet measures 273/5 inches wide by 341/2 inches deep by 314/5 inches high. Multiple pans can fit in this space in various configurations: six 18-inch by 26-inch pans, six half-sized gastronorm pans, and (12) 12-inch by 20-inch pans. Interior insulation keeps food warm, while the secure lock of the front door's magnetic latch securely keeps the heat in. The undercounter mobile heated cabinet is made of stainless steel for additional longevity.
Electronic controls at the bottom of the Winston HC4009 insulated mobile heated cabinet maintain set temperatures between 90 and 180 degrees Fahrenheit. Chicken legs and wings, rotisseries, and other meats are kept at safe serving temperatures with the aid of the digital display that monitors internal conditions. Users must manually refill the water reservoir for efficient heating throughout the day.

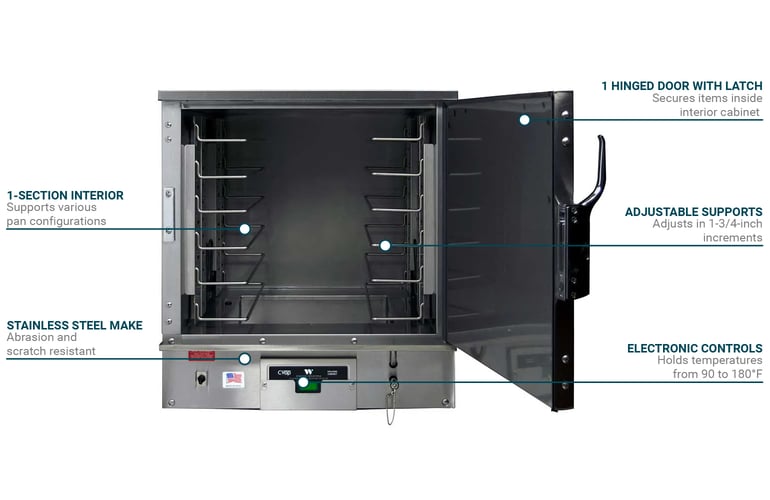

Product Details
- CVap® series

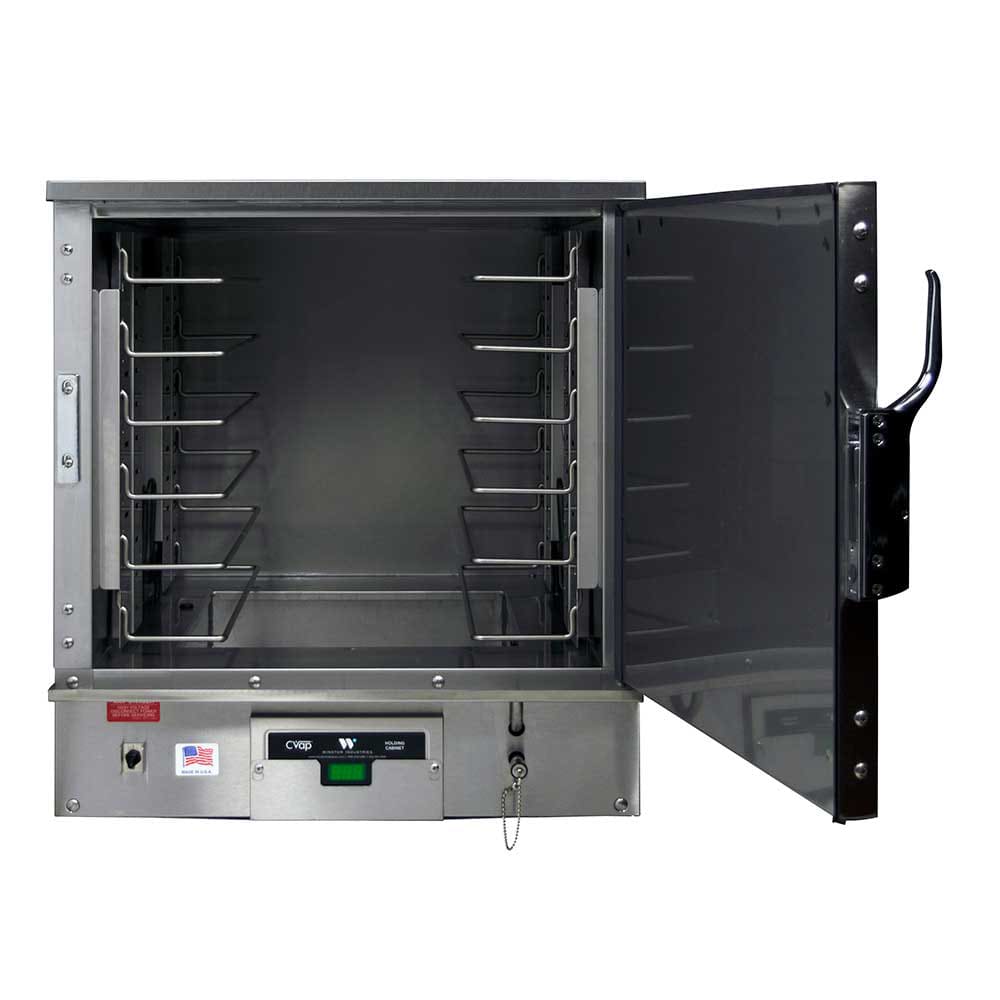

- 1-section interior capable of holding (6) 18 in. x 26 in., (12) 12 in. x 20 in., (6) 2/1 gastronorm pans
- Adjustable universal wire slides 31/2-in. OC
- Adjustable in 13/4-in. increments
- 1 hinged door with magnetic latch
- Electronic differential controls
- Temperature holding range: 90-180 degrees F
- Digital display
- Manual water fill
- Stainless steel construction
Dimensions & Utilities
- 273/5 in. W x 341/2 in. D x 314/5 in. H
- 18.3 A, 2200 W
- 120 V/60 Hz/1 ph, NEMA 5-20P plug
Product Features
*Winston HC4009 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
CVap® Holding Cabinet, half-size, undercounter, without fan, insulated, adjustable universal wire slides, 3-1/2" OC, adjustable on 1-3/4" increments, accommodates (6) 18" x 26" or (12) 12" x 20" or (6) 2/1 GN pans, (1) hinged solid door with magnetic latch, 90°F to 180°F temperature range, electronic differential controls, digital display, manual water fill, stainless steel construction, CE, UL EPH ANSI/NSF4, cUL, UL-Sanitation
*Image may not depict product color, inclusions or accessories.
Winston HC4009 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Winston |
| Application | Heat & Humidity |
| Control Location | Bottom |
| Construction | Stainless Steel |
| Controls | Digital |
| Door Design | Full |
| Depth (in) | 34.5 |
| Door Type | Solid |
| Heat | Electric |
| Hertz | 60 |
| Height (in) | 31.8 |
| kW | 2.2 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 1 |
| Pan Capacity | 6 |
| Phase | 1 |
| Sections | 1 |
| Size | Undercounter |
| Product | Proofing Cabinets |
| Product Type | Food Warming Equipment |
| Slide Type | Universal |
| Voltage | 120 |
| Type | Insulated |
| Width (in) | 27.6 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 235.00 |
