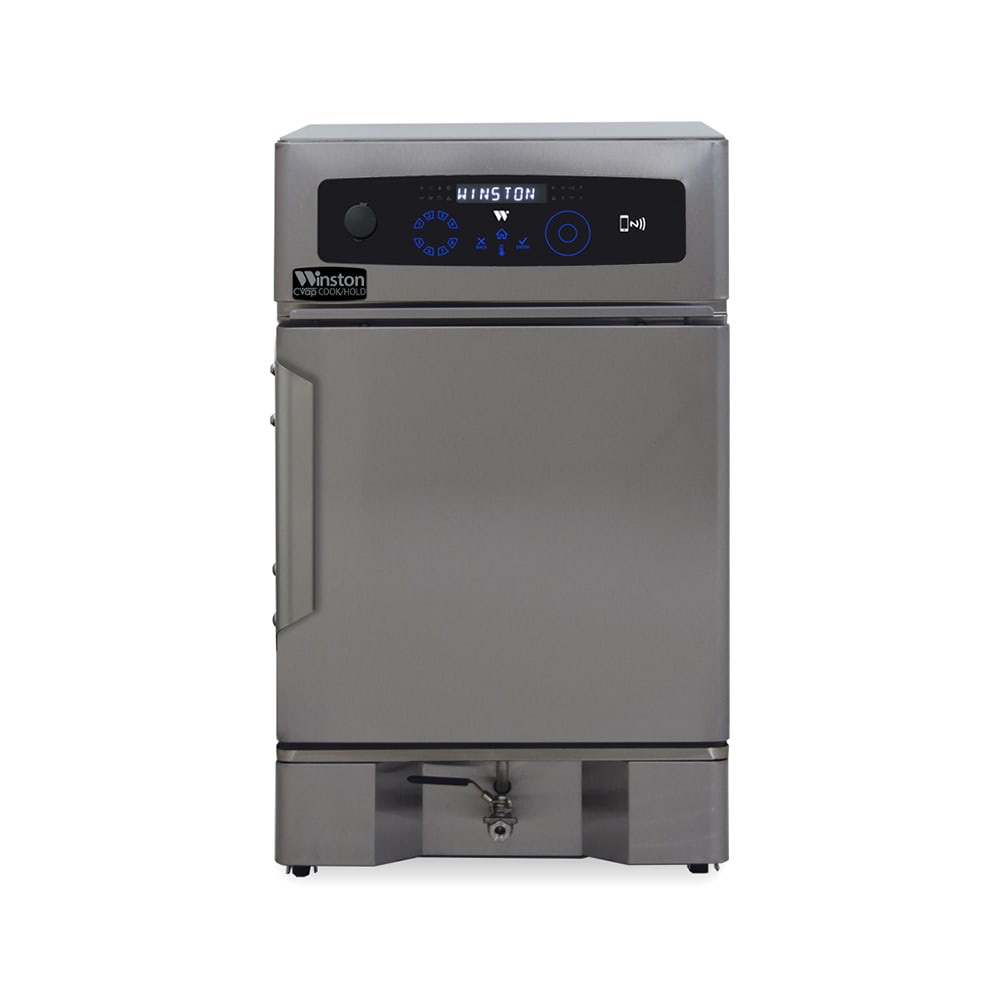

Winston CHV5-04HP Undercounter CVap® Cook and Hold Oven - Right Hinge, 208v/1ph

From the CVap® series, the Winston CHV5-04HP cook-and-hold oven provides kitchens with a layered heating and evaporating element that rests beneath countertops. Its stainless steel structure resists rust and corrosion and features four levels that can support 65 pounds each. These shelves can hold four 13-inch by 18-inch or 12-inch by 20-inch pans, and the unit as a whole is situated on four 3-inch casters that enable smooth mobility. Considering this appliance’s compact size, it features one compartment fitted with a single field-reversible door and magnetic handle. The oven is insulated to ensure accurate temperatures are met with energy efficiency, though temperatures can be altered in 1-degree intervals or picked from one of the eight programmable channels.

To assist in time crunches, the Winston CHV5-04HP cooking equipment includes an automatic fill function, a drain, and discernible controls. These control keys—in addition to others, USB connectors, and audio ports—are found on the C-Touch panel. After the water reaches the desired level, users can select their temperature and time settings, both of which are dependent on the type of convection cooking executed, before placing food items inside. As they cook, evaporators and heaters work to achieve positive results while staff members monitor their temperatures recorded through the HACCP downloads.

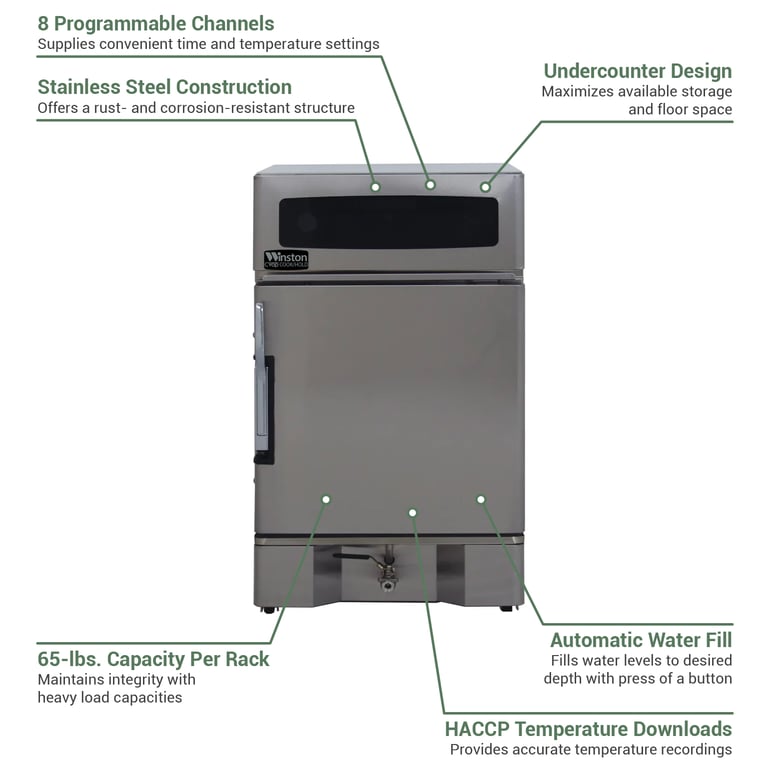

Product Details

• Cvap series
• 65-lb. capacity per rack
• Stainless steel construction
• Holds (4) 13 in. x 18 in. or (4) 12 in. x 20 in. pans
• Undercounter design
• Single compartment
• Convection mode
• 1 field-reversible door and magnetic handle
• 8 programmable channels
• Automatic water fill with drain
• Evaporators, heaters, and insulation maintain temperatures
• Trough reduces accumulated moisture
• C-Touch control and processor
• HACCP temperature downloads
• Includes USB and audio ports
• (4) 3-in. casters
• Stackable

Dimensions & Utilities

• 20 in. W x 26¹/₂ in. D x 36¹/₂ in. H
• 13.53 A, 2814 W
• 208 V/60 Hz/1 ph, 7-ft. cord with 6-20P NEMA plug

Product Features

*Winston CHV5-04HP is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

CVap® Cook & Hold Oven, electric, half-size, undercounter, one compartment, insulated, convection cooking, accommodates (4) 13" x 18" sheet pans or (4) 12" x 20" hotel pans, load limit 65 lbs (29.25 kg) per rack, (1) field reversible hinged solid door, magnetic door handle, C-Touch control with processor, HACCP temperature downloads, USB & audio ports, auto water fill, stainless steel interior & exterior, CE, UL EPH ANSI/NSF4, cUL, UL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Winston CHV5-04HP Specifications

Documents

Spec Sheet

Use & Care Guide

Manual
