Duke 613-E1V Single Full Size Electric Convection Oven - 11kW, 208v/3ph
Retail Price: $17,626.00
$6,759.57 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability

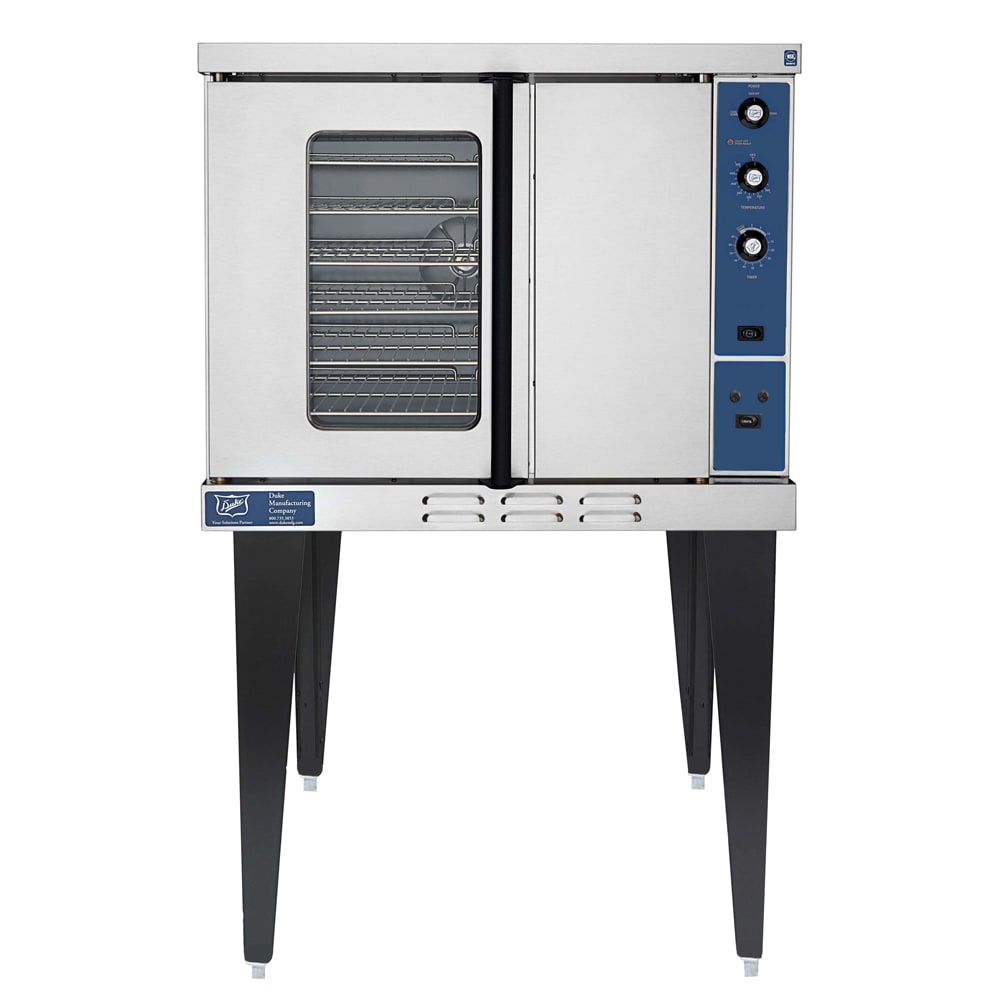

Duke 613-E1V Description
This Duke 613-E1V full-size convection oven's top, front, and sides are made of stainless steel, while the interior is made of porcelain. Its 65/35 stainless steel doors are chain driven and open simultaneously, enabling one-handed operation. A double-pane glass window on the larger door helps the user view the interior, and to accommodate various products, six racks are inside and can be adjusted on 13 rack positions.
To trap heat and prevent ambient air from getting inside, the Duke 613-E1V convection oven has insulation on the top, bottom, sides, and back. Its snap-action thermostat has a temperature range of 200 to 500 degrees Fahrenheit, and a two-speed blower motor provides even heat distribution throughout the unit. When cooking times run out, a 60-minute dial timer continuously buzzes.
Product Details
- Top, front, and sides are made of durable stainless steel
- Interior has porcelain finish for corrosion resistance
- 65/35 stainless steel doors are chain driven
- Dependent doors open with 1 hand
- Double-pane glass window on the larger door for visibility
- 6 racks are adjustable and removable
- 13 rack positions
- Insulation on bottom, sides, and back is 11⁄2 in. thick
- 3-in.-thick top insulation
- 2-speed motor
- Snap-action thermostat
- Temperature cooking range: 200-500 degrees F
- 60-min. electric dial timer continuously buzzes when time is up
- On/off/cooldown switch
Dimensions & Utilities
- Cavity: 29 in. W x 24 in. D x 24 in. H
- Overall: 381⁄8 in. W x 391⁄2 in. D x 60 in. H (depth does not include handle)
- 30.5 A, 10 kW
- 208 V/60 Hz/3 ph
*Free shipping on Duke 613-E1V within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, single-deck, standard depth, with 27" legs & adjustable feet, 65/35 stainless steel dependent doors, (1) window, (6) racks, (13) rack positions, porcelain interior, mech. snap action thermostat (200°-500°F), 60 minute dial timer with buzzer & (2) speed fan, NSF, cETLus
*Image may not depict product color, inclusions or accessories.
Duke 613-E1V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Duke |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 39.5 |
| Door Construction | Solid/Glass |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 59.44 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 10 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 6 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor; 10-year Door Parts |
| Width (in) | 38.13 |
| Weight | 540.00 |
