T&S S-0133-BY 33 5/16"H Wall Mount Pre Rinse Faucet - 1.15 GPM, Base with Nozzle
$398.99 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
T&S S-0133-BY Description

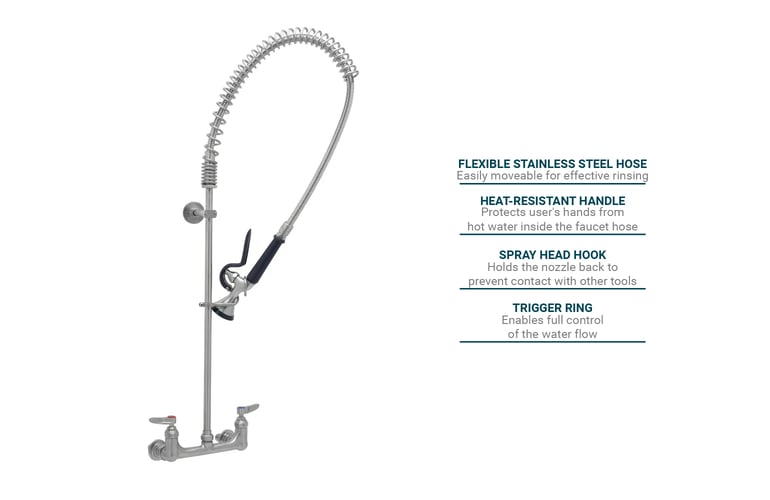

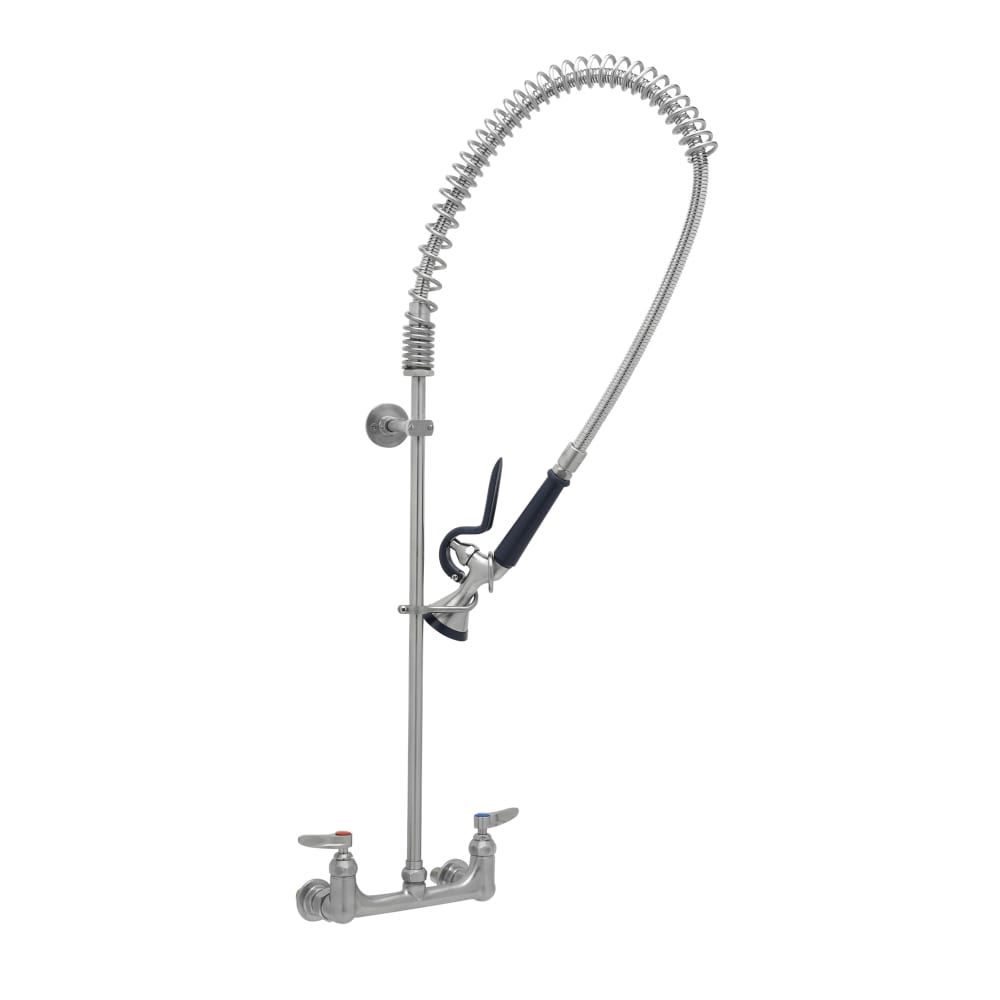

This T&S S-0133-BY pre-rinse faucet is made entirely of durable stainless steel with a brushed finish; it's made to mount on the backsplash above a sink and is compatible with 8-inch centers. The base of the faucet is equipped with lever handles that control incoming water. These handles are color coded to indicate cold or hot water use. The 18-inch stainless steel riser, which takes the water up to the hose, is anchored by a 6-inch wall bracket for stability.
The flexible hose on the T&S S-0133-BY pre-rinse faucet is supported by a large, overhead stainless steel spring that keeps the hose from tangling or falling while supporting a wide range of motion. The spray valve on the faucet is held back by a finger hook when not in use and has a trigger ring for simple operation and full control. Its heat-resistant handle ensures user safety. Water flows from the valve at a rate of 11/6 gallons per minute, minimizing water waste for efficiency and cost effectiveness.
Product Details
- Part of the EverSteel series
- Pre-rinse faucet
- 8-in. wall-mount design
- Low lead
- Trigger ring
- Made of stainless steel featuring a brushed finish
- 18-in. stainless steel riser
- 44-in. flexible stainless steel hose
- 6-in. stainless steel adjustable wall bracket
- Heat-resistant handle
- 11/6 GPM stainless steel spray valve
- Stainless steel quarter-turn compression cartridges with spring checks
- Color-coded stainless steel lever handles
- Stainless steel 1/2 NPT female eccentric inlets
- Stainless steel spray valve holder
- Stainless steel overhead spring
- Adjustable centers from 73/4 in. to 81/4 in.
- Water temperature range: 40-140 degrees F
- Pressure range: 20-125 psi
- Overall dimensions: 141/8 in. W x 335/16 in. H
Product Features
*Free shipping on T&S S-0133-BY within the 48 contiguous states.
From The Manufacturer
EverSteel Pre-Rinse Unit: 8” wall mount mixing faucet with stainless steel body, stainless steel 18” riser, 44” flexible stainless steel hose with heat resistant handle, stainless steel 1.15 GPM style spray valve (S-0107-Y), stainless steel compression cartridges with spring checks, stainless steel lever handles, stainless steel 1/2" NPT female inlets, stainless steel 6” adjustable wall bracket, stainless steel spray valve holder and stainless steel overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 & NSF 372. 2019 DOE PRSV - Class II compliant.
*Image may not depict product color, inclusions or accessories.
T&S S-0133-BY Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Cartridge | Eterna |
| Faucet Centers (in) | 8 |
| GPM | 1.15 |
| Height (in) | 33.31 |
| Hose Length (in) | 44 |
| Inlets | 1/2" Female |
| Mounting Location | Wall |
| Product | Pre-Rinse Faucets |
| Product Type | Commercial Sinks |
| Rating | Best |
| Series | EverSteel |
| Special Features | Low Lead |
| Special Features | Spray Head Hook |
| Special Features | Trigger Ring |
| Type | Base with Nozzle |
| Warranty | Limited Lifetime Against Defects in Material & Workmanship |
| Weight | 11.82 |
