T&S HG-2D-36 Description

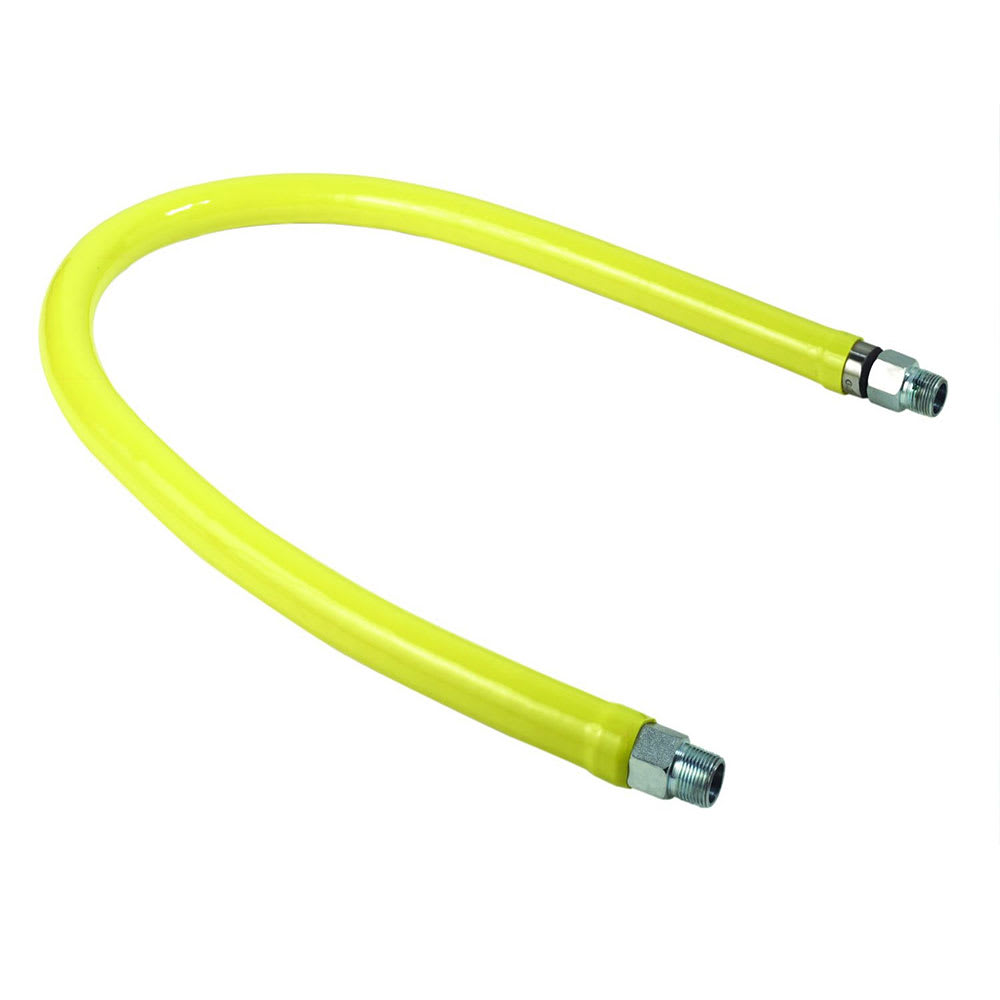

Model 064-HG2D36 - Gas Appliance Connector - HG-2 Series
The ultimate in efficiency and safety.
- FreeSpin rotating fittings
- Welded fitting connections
- Safe stainless braid
- Extruded coating
- 1/2" N.P.T. Male to Male Thread
- 36" long hose
Minimum BTU Capacity (In Thousands): Without Swivelink Connectors:250
With Swivelink Connectors*: 250
*Note:
- Add an S to the end of the Model number to add Swivelink Fitting to both ends of hose assembly.
- Add a K to the end of the Model number to add K-Model Installation Kit. Installation Kit includes: ball valve, necessary hardware, with Surelink restraining cable adjustable for 3' to 5'.
Welded Fittings
A gas connector is only as good as its weakest link. Trust our welded fittings to remain gas-tight long after a competitor's crimped assembly begins to loosen.
Extruded Coating
Strong does not have to mean less flexible. Our extruded coating stays out of the braid and keeps a constant wall thickness, providing strength and flexibility. Dipped coatings invade the stainless steel braid and stress the wires while reducing flexibility.
Safest Stainless Braid
Stainless braids protect the thin inner hose from pressure and stress. Trust our tight braid pattern to prevent punctures or dents more than a gapped braid.
Safe-T-Link Gas Connector Hose, 3/4" connection, 36"L, stainless steel braid with extruded coating, 3/4" male x 3/4" male, (2) 90-¦ elbows
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
**Important Prop 65 information for California residents.
T&S HG-2D-36 Specifications
PDF Spec Sheet| Manufacturer | T&S |
| Coupling Size | 3/4" |
| Length (in) | 36" |
| Connection Type | Quick Disconnect |
| Couplings | Male/Male |
| Warranty | 5 Years |
| Weight | 4.00 |
