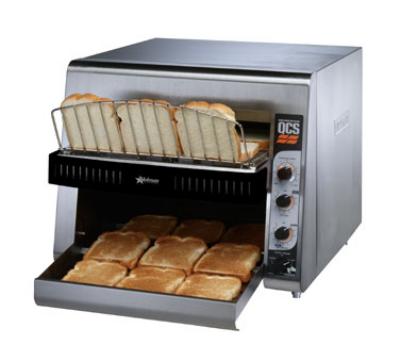

Star QCS3-1000 Conveyor Toaster - 1000 Slices/hr w/ 14"W Belt, 240v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-QCS31000A240 • MPN: QCS3-1000 240 (B)
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Web Price: $1,752.00

Selected Voltage: 240V, 1 Phase

240V, 1 Phase
208V, 1 Phase

Image may not depict product color, inclusions or accessories.

Star QCS3-1000 Description


The Star QCS3-1000 QCS® conveyor toaster makes as many as 1,000 slices in an hour. Its 14-inch-wide belt holds three slices of bread side by side and operates quietly. Users loading product onto the belt are aided by its extended design, front burn guard, and cool-to-the-touch components. Quartz infrared elements in the Star QCS3-1000 QCS conveyor oven quickly and consistently heat product, which is then held ready to serve in the warming area.

Product Details

  • Can toast 1,000 slices per hr.
  • Extended design helps staff load the conveyor through the 1.5-in. opening
  • Loading area includes a front burn guard and a cool-to-the-touch exterior
  • 14-in.-wide belt accommodates 3 slices side by side
  • Conveyor belt tension system provides smooth and quiet operation
  • Large warming area maintains toast's ideal temperature
  • Quartz infrared elements heat quickly and consistently
  • Forced convection system prevents the exterior from getting too hot
  • Variable belt speed, top heat level, and bottom heat level
  • Analog controls are adjustable with heavy-duty metal knobs
  • Power saver switch reduces energy consumption by 75 percent
  • High-limit switch eliminates overheating risks to protect the components
  • 1-in. adjustable legs elevate the unit on countertops
  • 3200 W, 13.8 A
  • 240 V/60 Hz/1 ph, NEMA 6-20P plug
  • Overall dimensions: 18.5 in. W x 22.38 in. D x 15.63 in. H (24.5 in. D with extended load-up rack)
  • cULus and UL-EPH listed
  • Made in the U.S.

Want to read more about Star conveyor toasters? Take a look at our Star toasters buyers' guide.

Star QCS® Conveyor Toaster, electric, 1000 slices/hr., horizontal conveyor, analog speed control, standby switch, independent controls for top & bottom quartz sheathed heater elements, 1-1/2" opening x 14" W belt (3 slices) with loading rack, stainless steel construction with smooth cool touch exterior, cULus, UL EPH, 240v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Star QCS3-1000 Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As QCS3-1000A
Warranty 1 year
Specialty Options Cool Touch Exterior
Specialty Options Separate Controls
Specialty Options Load-Up Tray
Type Conveyor
Slices/Hr 1000
Belt Width (in) 14
Controls Manual
Hertz 60
Voltage 240
Phase 1
Product Type Countertop Cooking Equipment
Product Conveyor Toaster
Weight 68.00
Star QCS3-1000 Certifications
  • UL
  • NSF
