Star QCS1-500B Conveyor Toaster - 500 Bagels/hr w/ 1 1/2" Product Opening, 120v

The Star QCS1-500B QCS® conveyor toaster can produce 500 bagels per hour. The opening is 1¹/₂ inches tall and can accommodate bagels. With an extended design that facilitates loading, the 10-inch conveyor holds two bagels side by side. The loading area has a burn guard and a cool-to-the-touch exterior that reduces the risk of injury. Quartz infrared heaters toast the product quickly and consistently. The heat levels for the top and bottom sections, along with the belt speed, can be adjusted to reach an ideal product color and texture. A power saver switch on this Star QCS1-500B QCS conveyor toaster reduces energy consumption, while its high-limit switch reduces the risk of overheating to protect integral components.

Product Details

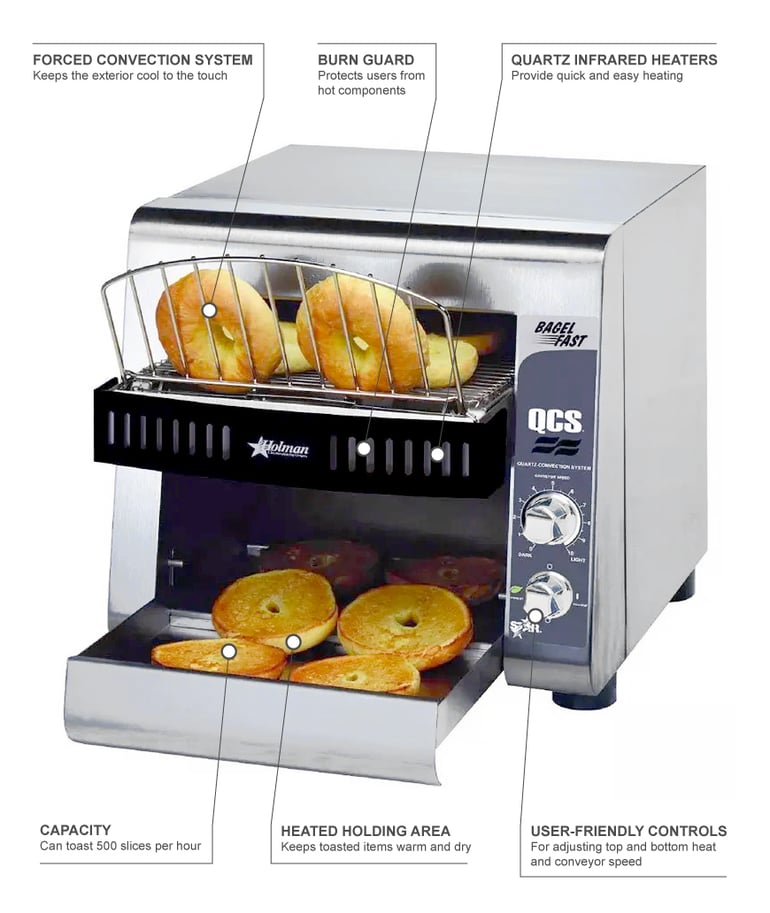

• Makes as many as 500 bagels per hr.
• 1¹/₂-in. opening accepts bagels
• Extended conveyor belt has a burn guard and cool exterior for safe loading
• 10-in.-wide belt accommodates 2 bagels side by side
• Large warming area keeps toasted products at serving temperatures
• Quartz infrared heaters toast quickly and consistently
• Forced convection system circulates preheated air into the chamber
• Convection system protects the components and keeps the exterior cool
• Belt speed and top and bottom heat controls ensure the ideal product color and texture
• Analog controls with heavy-duty metal knobs
• Power saver switch reduces energy consumption by as much as 75 percent
• High-limit switch protects the internal components by preventing overheating
• One-piece cover provides access to the components for cleanup and maintenance
• 1-in. adjustable legs elevate the unit off the counter

Dimensions & Utilities

• 13¹/₄ in. W x 18⁷/₈ in. D x 15⁵/₈ in. H (21 in. D with extended load-up rack)
• 1600 W, 12.2 A
• 120 V/60 Hz/1 ph, NEMA 5-15P plug

Product Features

*Free shipping on Star QCS1-500B within the 48 contiguous states.

From The Manufacturer

Star QCS® Conveyor Toaster, electric, 500 bagels/hr. bagel toaster, horizontal conveyor, analog speed control, standby switch, top only quartz sheathed heater elements, 1-1/2" opening x 10" W belt (2 slices) with loading rack, stainless steel construction with smooth cool touch exterior, cULus, UL EPH Classified, Made in USA, 120v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Star QCS1-500B Specifications

Founded in 1921, Star Manufacturing is known for its hot dog machines, fryers, popcorn makers, and toasters. It also creates a variety of heavy cooking equipment for every kind of operation. A Middleby company, Star is based out of its Tennessee factory.

Documents

Spec Sheet

Warranty

Manual
