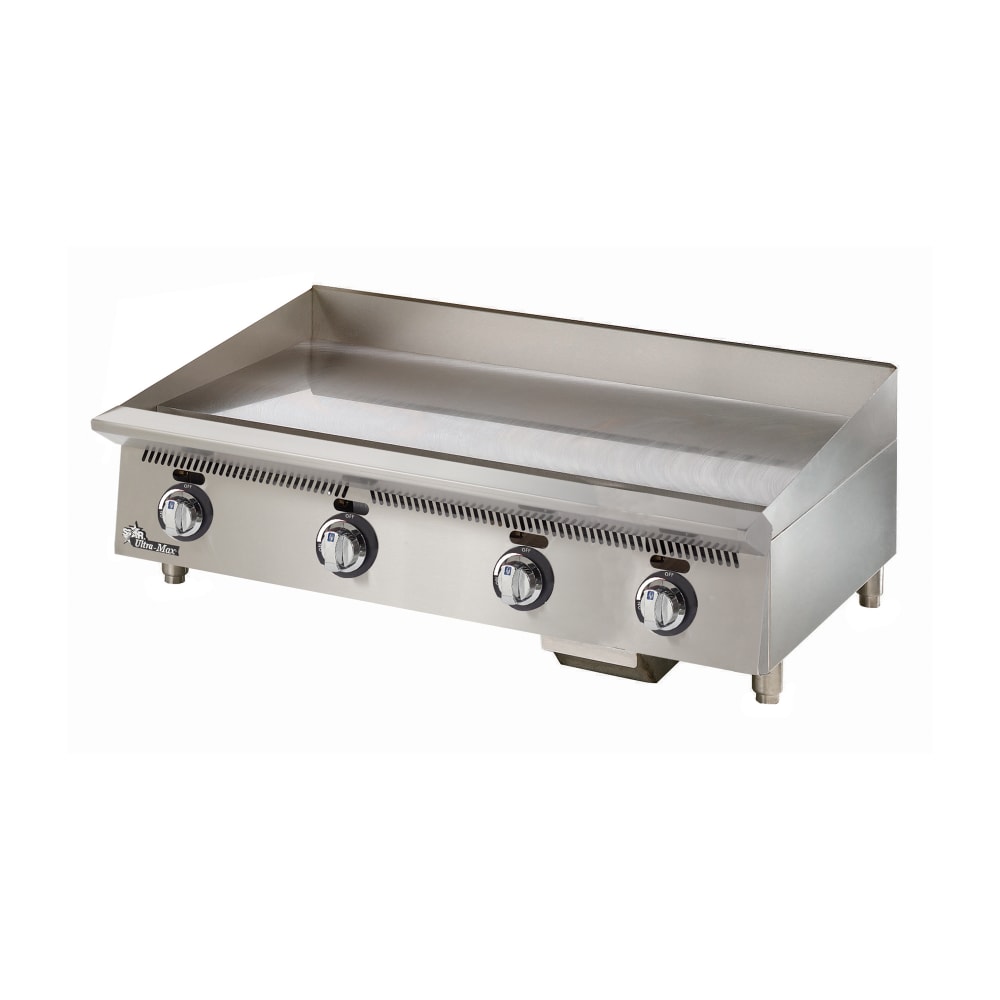

Star 872TCHSA 72" Ultra-Max® Gas Griddle w/ Thermostatic Controls - 1" Chrome Plate, Liquid Propane
Free Shipping Item
$23,843.00 /Each
Web price, call us!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Star 872TCHSA Description
Featuring a 1-inch-thick chrome-plated cooking surface, the Star 872TCHSA Ultra-Max® gas griddle delivers thermal stability and simplified cleanup for busy kitchens. The griddle zones each output 30,000 BTU using liquid propane, totaling 180,000 BTU across the 72-inch-wide by 24-inch-deep surface. Each section includes a standing pilot and is adjusted using front-mounted heavy-duty metal knobs. Designed for precision, mechanical snap-action thermostats are embedded every 12 inches, positioned 3⁄16 inch beneath the plate to regulate surface temperatures between 150 and 550 degrees Fahrenheit.
Built for commercial resilience, the Star 872TCHSA Ultra-Max gas griddle is constructed of corrosion-resistant stainless steel and supported by a welded steel frame. A 43⁄8-inch tapered wrap-around splash guard helps contain grease and debris, while a 31⁄2-inch-wide front trough directs runoff into a 6-quart grease drawer below the cook zone. The griddle sits on four stainless steel legs that measure 4 inches and adjust by 13⁄8 inches to accommodate uneven surfaces. It connects to a gas line via a 3⁄4-inch NPT male inlet.
Product Details
- Part of the Ultra-Max series
- 1-in.-thick T1 steel hexavalent chrome griddle plate
- Welded steel frame with corrosion-resistant stainless steel exterior
- 43⁄8-in. tapered rear and side splash guard
- 31⁄2-in. front grease trough
- 6-qt. grease drawer
- Heavy-duty metal knobs
- Includes (4) 4-in. stainless steel legs (adjustable by 13⁄8 in.)
Heating System
- Thermostatic controls
- Mechanical snap-action sensors embedded every 12 in.
- Temperature holding range: 150–550 degrees F
- Standing pilot ignition for each 12-in. section
Dimensions & Utilities
- Overall dimensions: 72 in. W x 323⁄8 in. D x 18 in. H
- Cooking surface: 72 in. W x 24 in. D
- Powered by liquid propane
- 30,000 BTU per section (180,000 total BTU)
- 3⁄4-in. NPT male gas connection
*Free shipping on Star 872TCHSA within the 48 contiguous states.
From The Manufacturer
Ultra-Max® Griddle, countertop, gas, 72"W x 24"D cooking surface, 1" thick T1 steel hexavalent chrome griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 180,000 BTU, cULus, UL EPH Classified
*Image may not depict product color, inclusions or accessories.
Resources
2-year Parts & Labor
Star 872TCHSA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Application | Medium Duty |
| BTU / Burner | 30000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 72 |
| Depth (in) | 32.38 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 18 |
| Plate Material | Chrome |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Best |
| Series | Ultra-Max® |
| Warranty | 2-year Parts & Labor |
| Width (in) | 72 |
| Weight | 787.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
