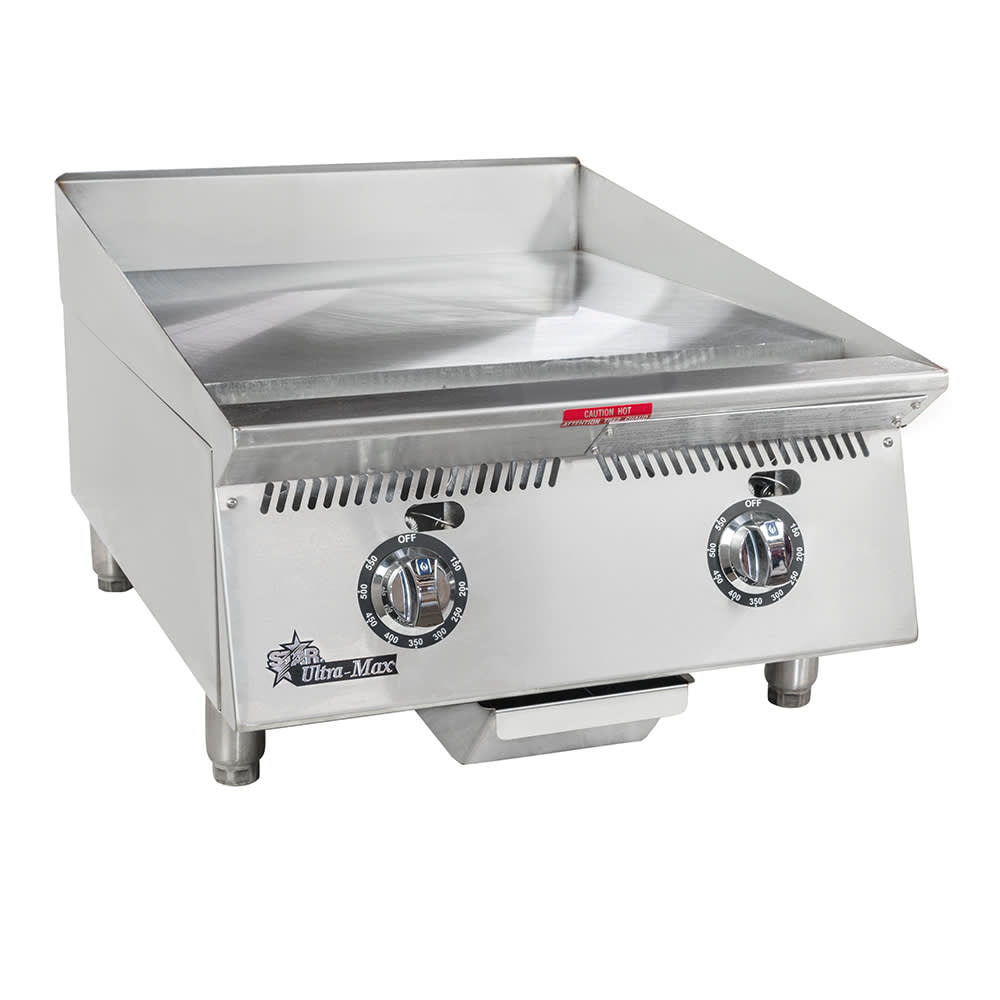

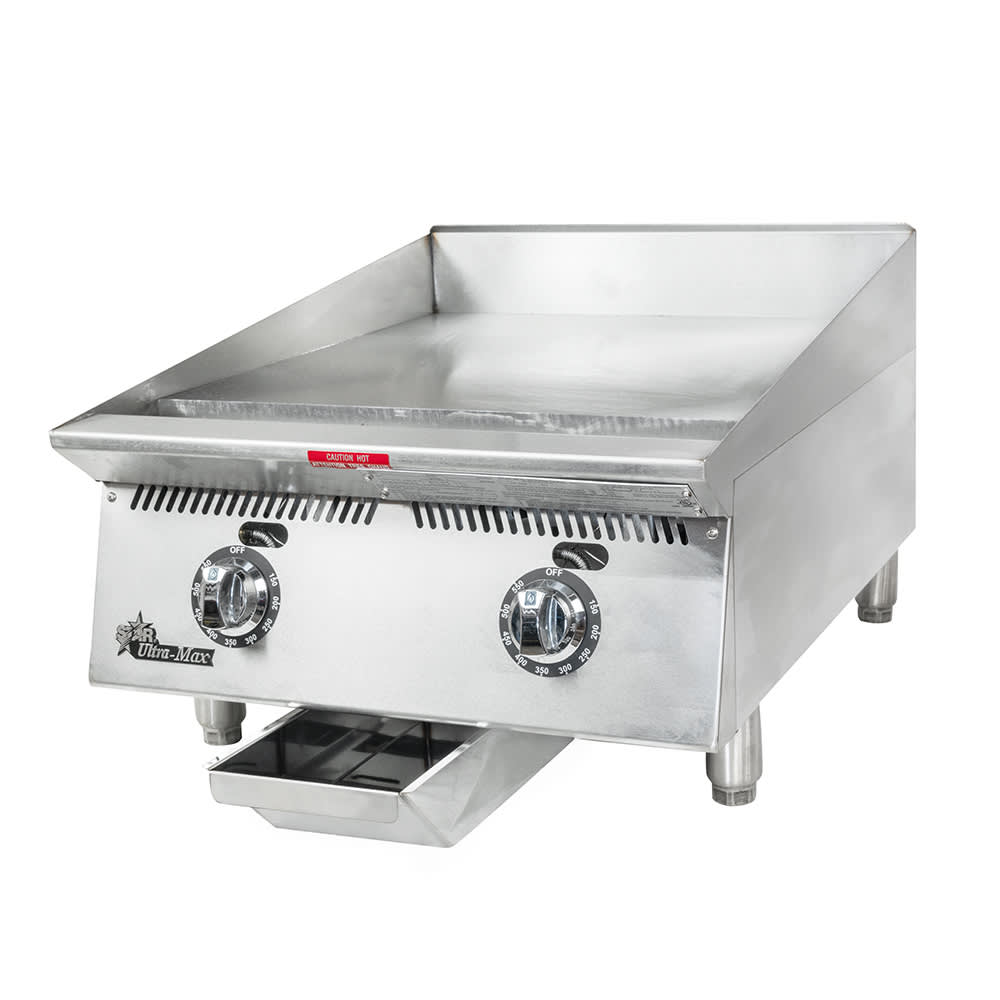

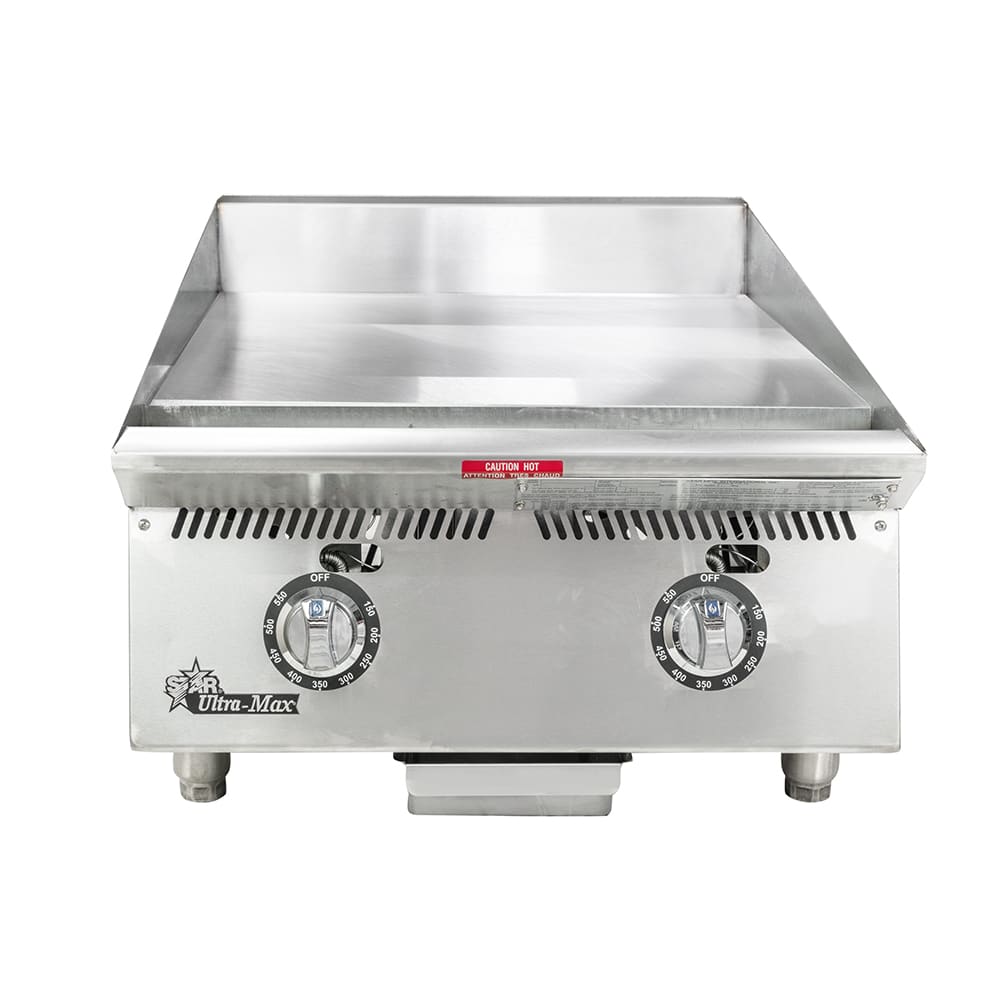

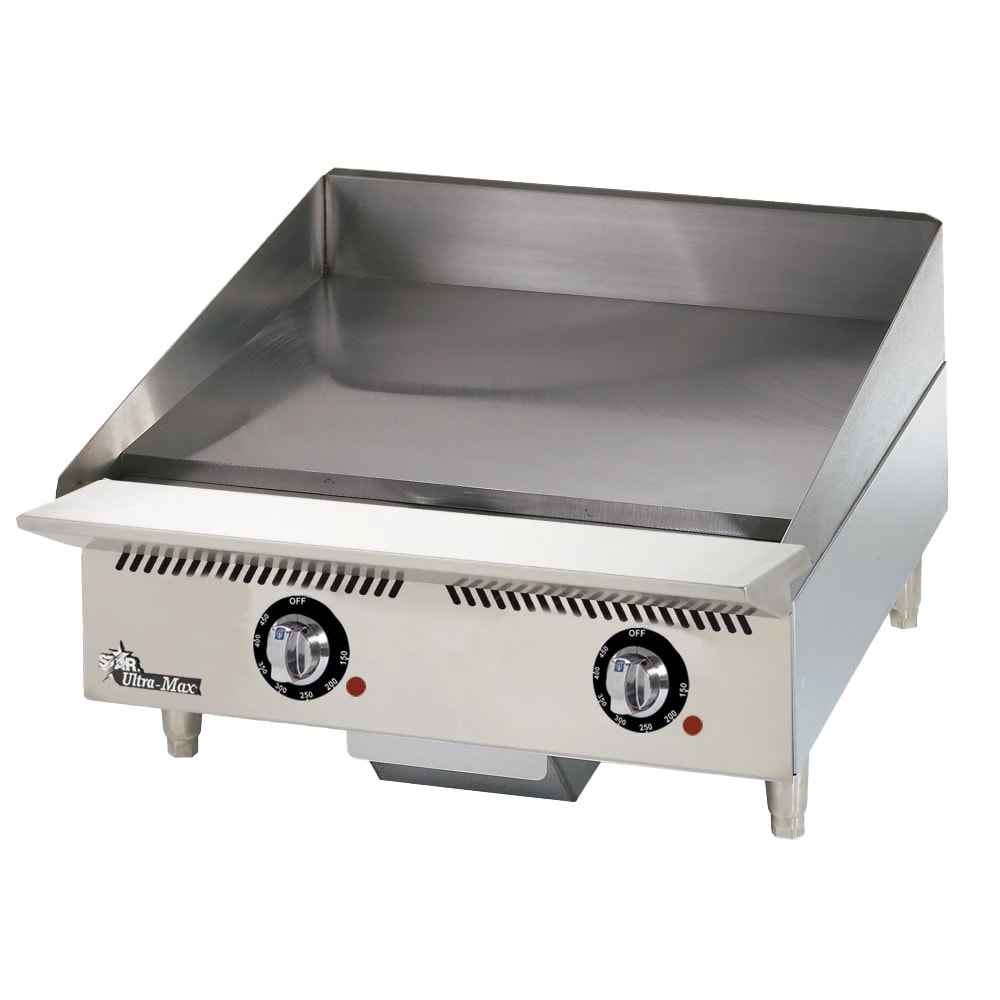

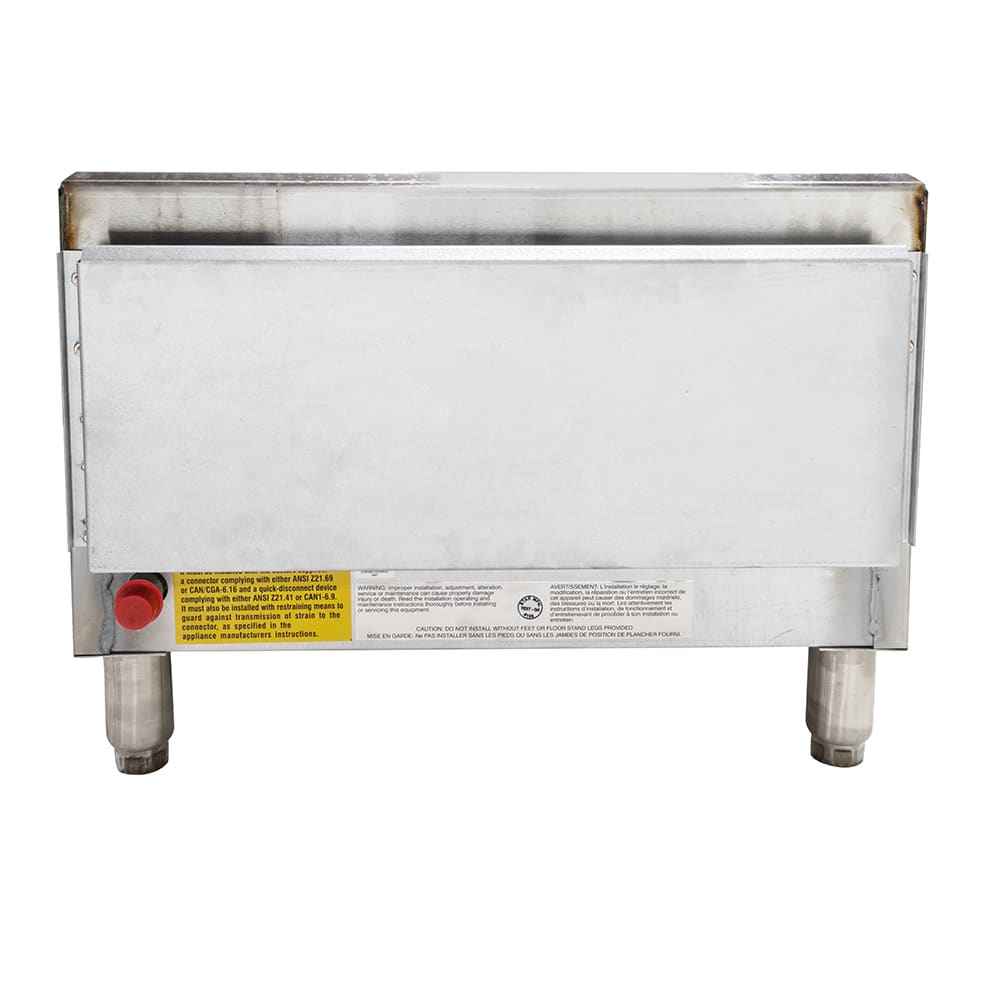

A burner is located every 12 inches on the Star 824TA Ultra-Max® griddle. Each section is controlled by a snap-action thermostat, using a sensor to precisely control the temperature from 150 to 550 degrees Fahrenheit. Since the griddle plate is 1 inch thick, it has durability to withstand warping as it repeatedly heats up and cools down. To simplify the cleanup process, the side and rear splash guards contain messes to the Star 824TA Ultra-Max griddle cooktop. It is raised to a comfortable working height by 4-inch adjustable legs.
- Heated by natural gas
- Burner for every 12 in. of the plate provides even heat distribution

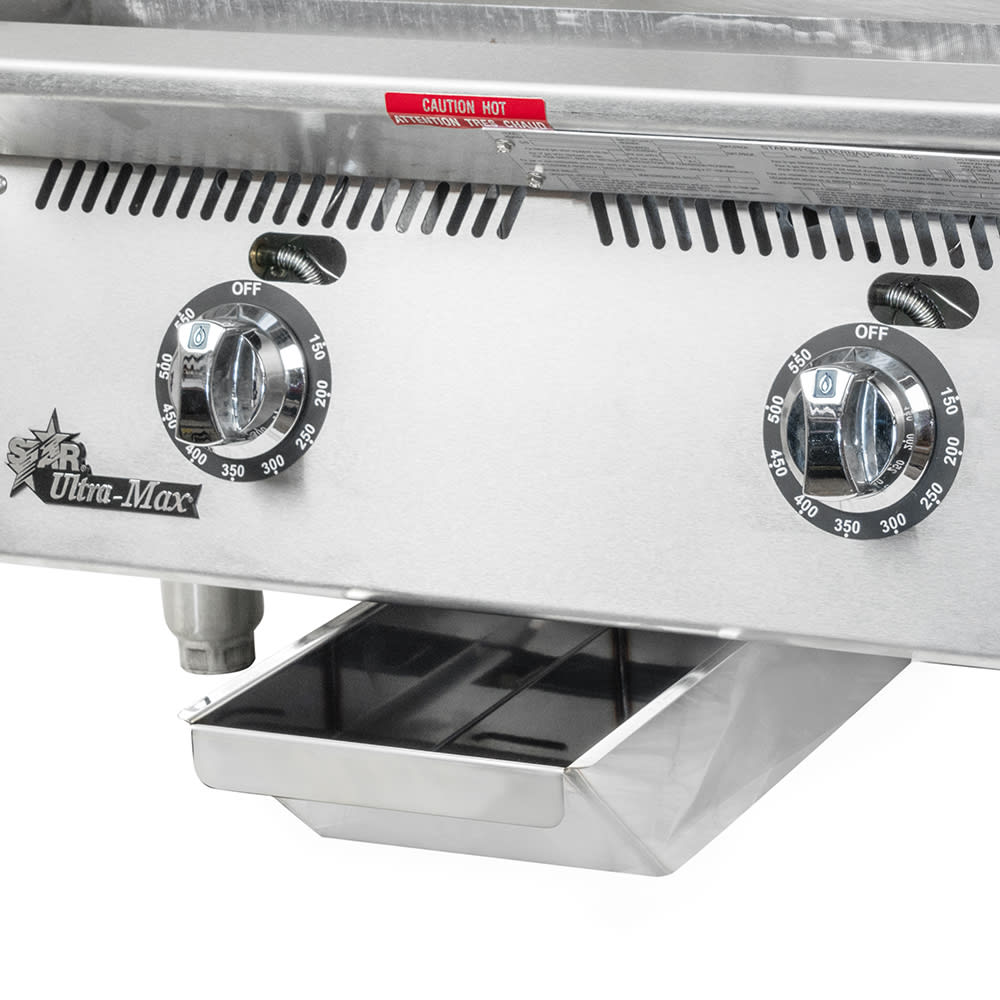

- Sensors with the mechanical, snap-action thermostats are placed in each 12-in. section so the user can prepare various dishes
- Temperature range: 150-550 degrees F
- 1-in.-thick polished steel griddle plate is durable and retains heat
- 4.375-in. side and rear splash guards contain liquids and crumbs to the cooking surface

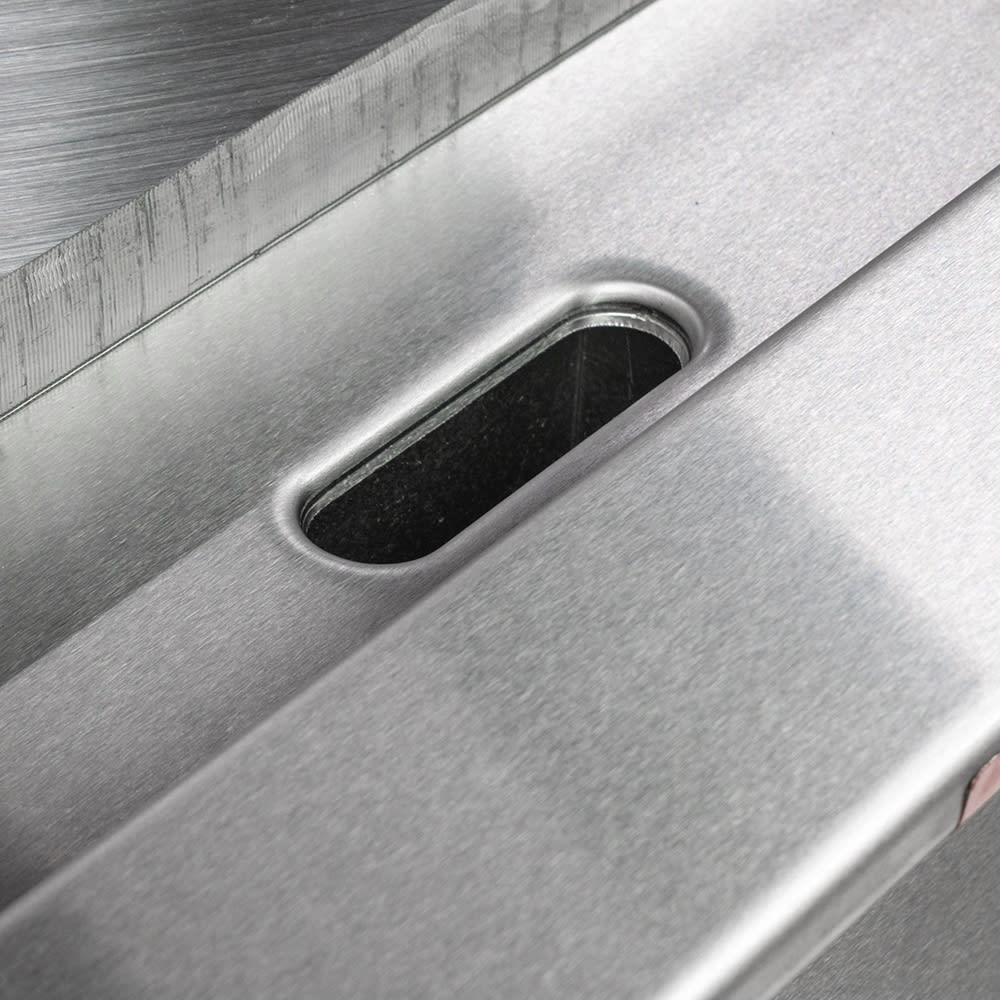

- 3.5-in. x 1-in. grease trough is made to move liquids into the drawer
- 4-in. legs stabilize on most uneven surfaces
- 60,000 BTU
- Overall dimensions: 24 in. W x 34.2 in. D x 18 in. H
- cULus Gas-Fired and UL-EPH listed
- Made in the U.S.
For additional information on commercial griddles, visit our griddles buyers' guide.
Ultra-Max® Griddle, countertop gas, 24" W x 24" D cooking surface, 1" thick steel griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 60,000 BTU, cULus, UL EPH Classified, Made in USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Star 824TA SpecificationsPDF Spec Sheet
|Also Known As||824T|
|BTU / Burner||30000|
|Overall Width (in)||24|
|Cooking Area Depth (in)||24|
|Plate Thickness (in)||1|
|Control Spacing (in)||12|
|Specialty Options||Snap Action|
|Specialty Options||Front Grease Trough|
|Warranty||3 years parts & labor|
|Overall Depth (in)||32.38|
|Product Type||Countertop Cooking Equipment|
