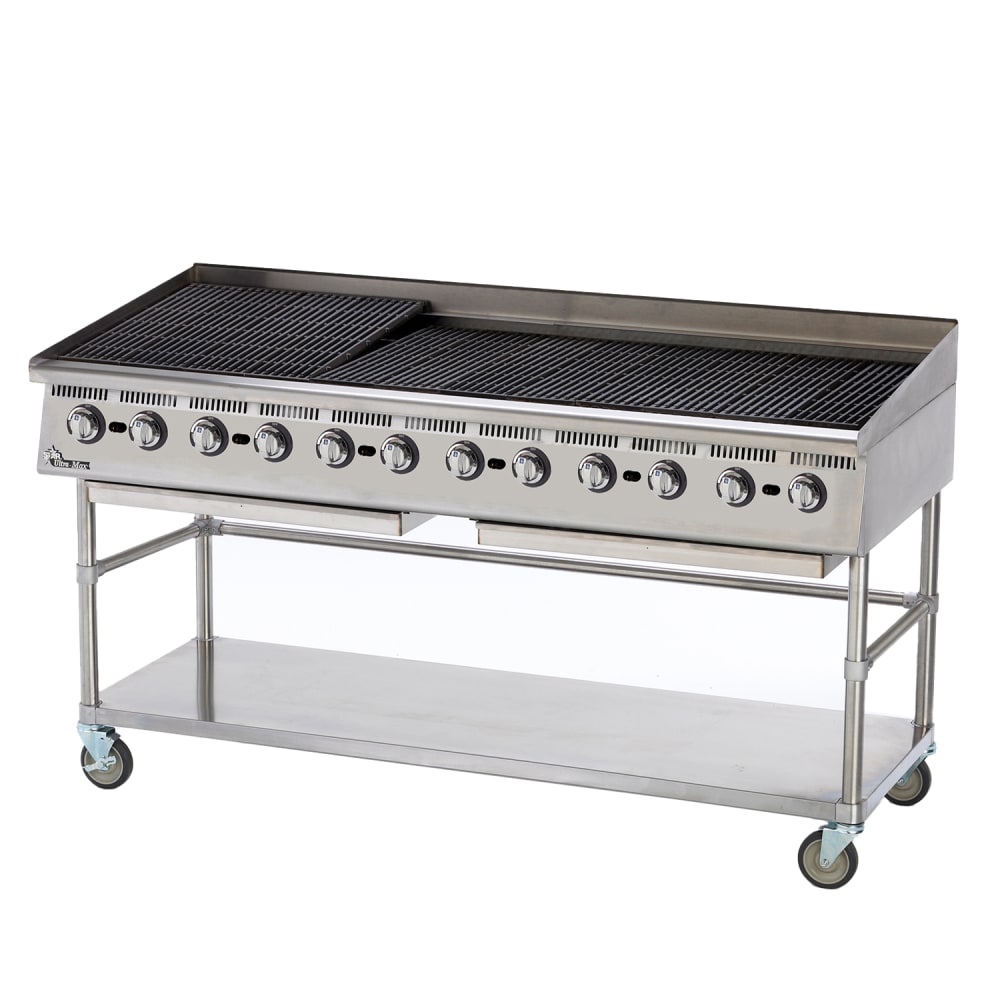

Star 8172RCBB 72" Charbroiler w/ Manual Controls & Steel Radiants, 240000 BTU, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 062-8172RCBANG • MPN: 8172RCBB NG (C)
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $6,301.00

Image may not depict product color, inclusions or accessories.

Star 8172RCBB Description


The Star 8172RCBB Ultra-Max® charbroiler has individual control knobs that control the cast iron burners. Heat is directed from the burners to the broiling area by radiants. To support high-volume operations, the grates are made to accommodate large capacities of product. They adjust to flat or inclined positions to provide different levels of heat to the product. Splash guards on this Star 8172RCBB Ultra-Max charbroiler minimize splatter on the countertop.

Product Details

  • Heated by natural gas
  • Independently-controlled, 6-in. sections offer heat control
  • Radiants direct heat absorbed from the cast iron burners to the surface
  • High-capacity grates are made to support large-volume operations
  • 6-in. adjustable grates can be placed in flat or inclined positions
  • 5-in. tapered splash guards prevent messes from reaching the counter
  • Stainless steel bull-nose front reduces the risk of burns by separating the operator from the hot components
  • Water pan has a large capacity
  • 4-in. legs elevate the unit to a comfortable working height
  • 240,000 BTU
  • Overall dimensions: 72 in. W x 35.2 in. D x 18 in. H
  • cULus Gas-Fired and UL-EPH listed
  • Made in the U.S.

For more information on commercial charbroilers, visit our charbroilers buyers' guide.

Ultra-Max® Charbroiler, NG gas, 72"L, 30-5/8"D, 18"H, steel radiants, adjustable manual controls every 6", welded steel frame with stainless steel exterior, cast iron broiling grates, drip pan, splash guard & grease trough, 4" legs, 240,000 BTU, cULus, UL EPH

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Star 8172RCBB Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 8172RCB
BTU 240,000
Cooking Surface Stainless Steel
Function Heavy Duty
Grid Area 1815
Heat Gas
Height (in) 18
Type Radiant
Width (in) 72
Warranty 3 year
Gas Type Convertible
Product Type Countertop Cooking Equipment
Product Charbroiler
Weight 617.00
