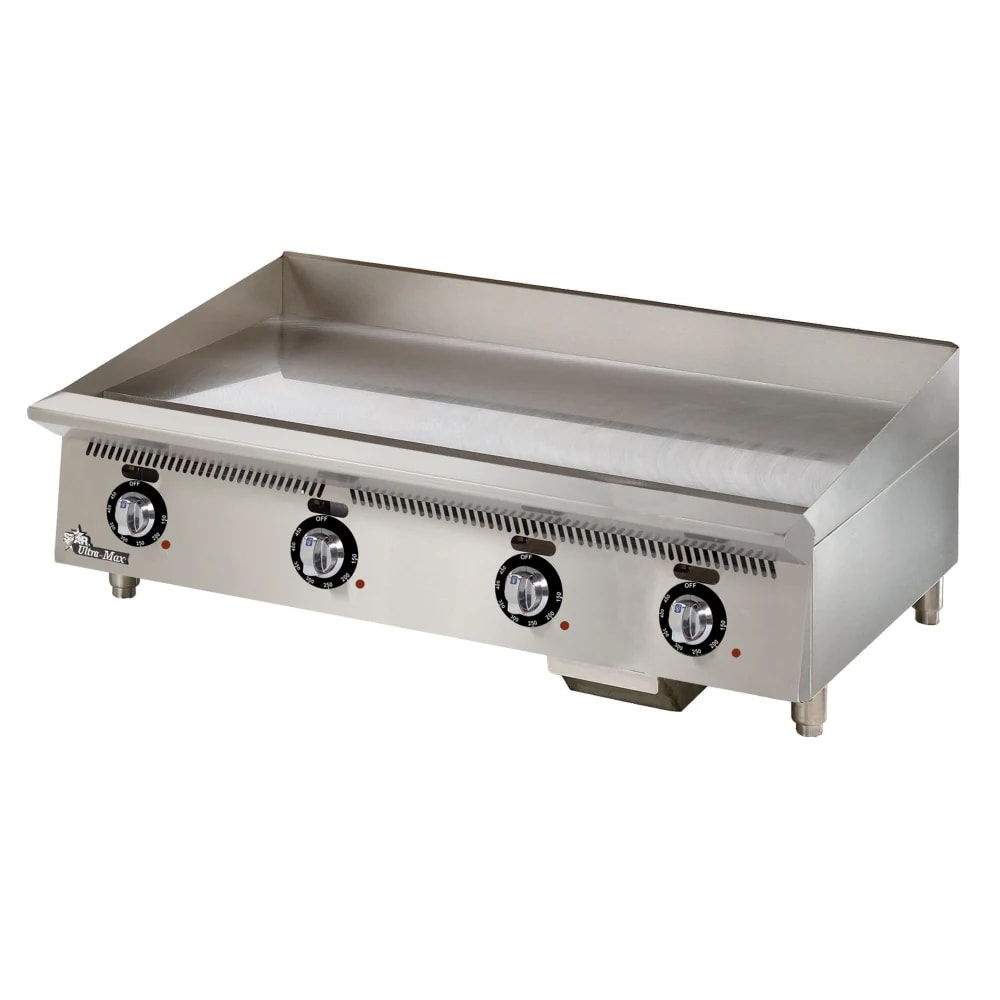

Star 736TCHSA 36" Ultra-Max® Electric Griddle w/ Thermostatic Controls - 1" Chrome Plate, 240v
Free Shipping Item
$12,558.00 /Each
Web price, call us!
Selected Voltage: 240V, 1/3 Phase
| 240V, 1/3 Phase |
| 208V, 1/3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Star 736TCHSA Description

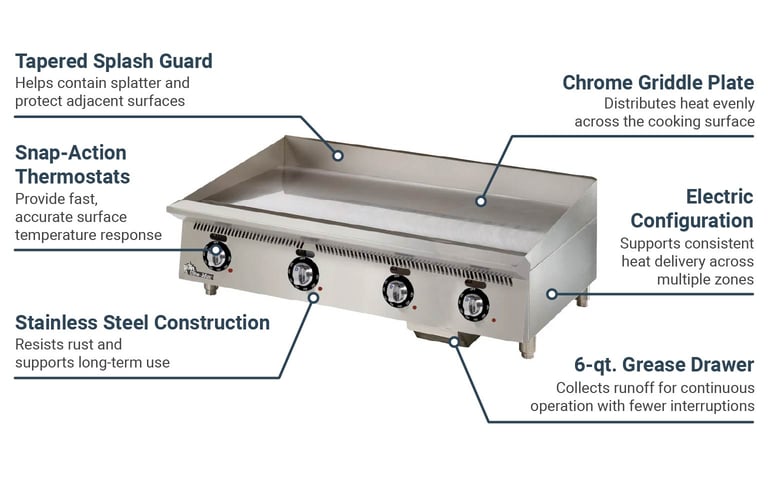

The Star 736TCHSA Ultra-Max® electric griddle offers precision, consistency, and efficiency in a compact footprint. This 36-inch wide model features three independent 12-inch zones, each powered by a 4,350-watt heating element and controlled by a snap-action thermostat for responsive, targeted temperature management from 150 to 450 degrees Fahrenheit. A chrome-plated T1 steel surface retains heat and reduces sticking, while the 6-quarts grease drawer and 31⁄2-inch front trough support extended operation with minimal interruption for cleaning.
Constructed with a welded steel frame and finished in corrosion-resistant stainless steel, the Star 736TCHSA Ultra-Max electric griddle withstands repeated use in demanding kitchens. A 51⁄2-inch wraparound splash guard helps contain grease and splatter, and the 31⁄2-inch front trough collects drippings efficiently. The 1-inch thick chrome plate delivers even heat across the entire cooking area, and the unit rests on four 4-inch stainless steel legs with 13⁄8-inch adjustment to level the frame on uneven surfaces.
Product Details
- Ultra-Max series
- Countertop application
- Stainless steel exterior with welded steel frame
- 1-in.-thick chrome griddle plate made of T1 steel
- (3) Snap-action thermostatic controls
- Heavy-duty metal control knobs
- 31⁄2-in. front grease trough
- 6-qt. grease drawer
- 51⁄2-in. wraparound splash guard
- 4-in. stainless steel legs with 13⁄8-in. adjustment
Product Features
*Free shipping on Star 736TCHSA within the 48 contiguous states.
From The Manufacturer
Ultra-Max® Griddle, countertop, electric, 36"W x 24"D cooking surface, 1" thick T1 steel hexavalent chrome griddle plate, 150° - 450° F snap-action thermostat and 4350 watt element every 12", 5-1/2" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 240v/60/1/3-ph, cULus, UL EPH Classified
*Image may not depict product color, inclusions or accessories.
Resources
2-year Parts & Labor
Star 736TCHSA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Application | Medium Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 36 |
| Depth (in) | 33.69 |
| Heat | Electric |
| Height (in) | 18 |
| Hertz | 60 |
| kW | 13.05 |
| Phase | 1 |
| Phase | 3 |
| Plate Material | Chrome |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Best |
| Series | Ultra-Max® |
| Voltage | 240 |
| Warranty | 2-year Parts & Labor |
| Width (in) | 36 |
| Weight | 389.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
Important Prop 65 information for California residents.
