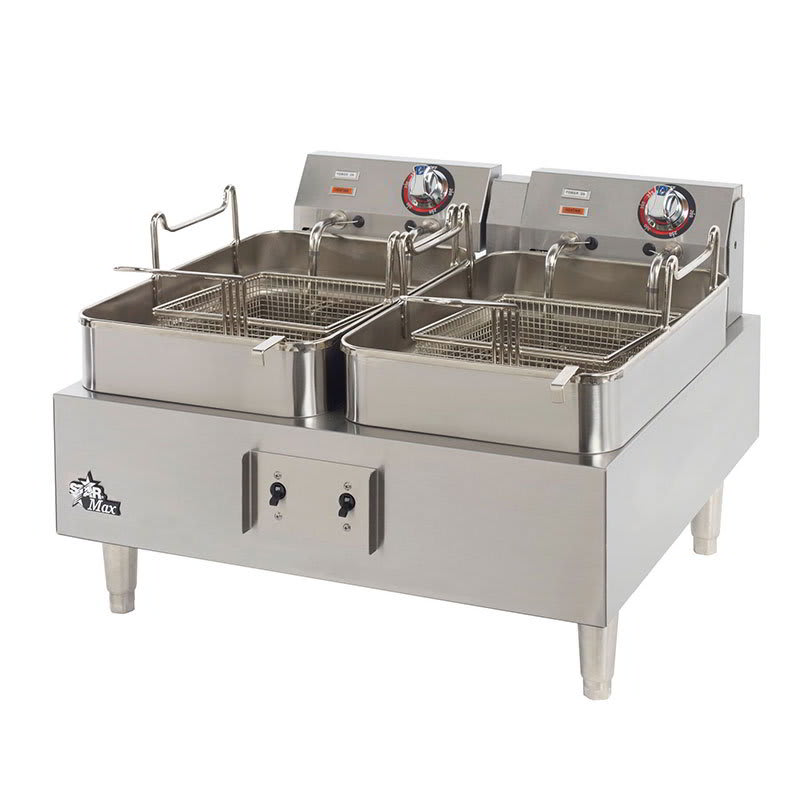

The Star-Max® electric fryer features two independently operated 15 pound kettles which can simultaneously cook two different products with no taste transfer. This fryer is rated at 9,200 watts and can fry up to 50 pounds of French fries in an hour. The entire unit is durable and easy to clean with stainless steel construction, removable kettles, and immersion-type elements which swing up out of the kettle.
- Star-Max® Series
- Replaces 530TED
- 2 independent 15-lb. kettles eliminate taste transfer and can be used separately
- Can fry 50-lb. French fries per hr.
- 30-lb. fat capacity
- Independent temperature control for each kettle
- Responsive snap-action thermostat keeps oil at a consistent temperature
- Temperature range of 200 - 375 degrees F
- All stainless steel construction is easy to clean and holds up to continuous use
- Kettles are removable for easy cleaning and straining oil
- 6-1/2 min. pre-heat to 350 degrees F
- Indicator lights signify when fryer has reached set temperature
- Nickel-plated steel mesh baskets allow oil to flow freely around food
- Tubular immersion-type heating elements provide uniform heat distribution
- Heating elements swing up for cleaning and maintenance
- High-limit safety thermostat
- 4-in. adjustable stainless steel legs
- 208-240 V/60 Hz/1-ph, 6.91/9.2 kw, 33.2/38.3 A
- Overall Dimensions: 24-in. W x 24-in. D x 16-3/4 in. H
- cULus and UL-EPH Listed; ISO 9001;2000, ANSI, and NSF Certified
- Each 15-lb. kettle can be operated independently and at different temperatures, allowing you to fry different foods with no taste transfer
- Fryer pre-heats to 350 degrees F in 6-1/2 min. and can fry up to 50-lb. of fries per hr.
- Immersion-type heating elements and mesh baskets ensure food is cooked thoroughly and uniformly
Star-Max Fryer, countertop, electric, dual fry pot, 15-lb capacity each fryer, single baskets, snap-action thermostats, heavy duty knobs, on-off switches, immersion type tubular heating elements, stainless steel construction, 4" legs, 208v/60/1ph
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Star Manufacturing 530TEF SpecificationsPDF Spec Sheet
|Also Known As||530TED|
|Category||Commercial Restaurant Fryers|
|Pot Size (lbs)||10 - 20|
|Pot Style||Tube Type|
