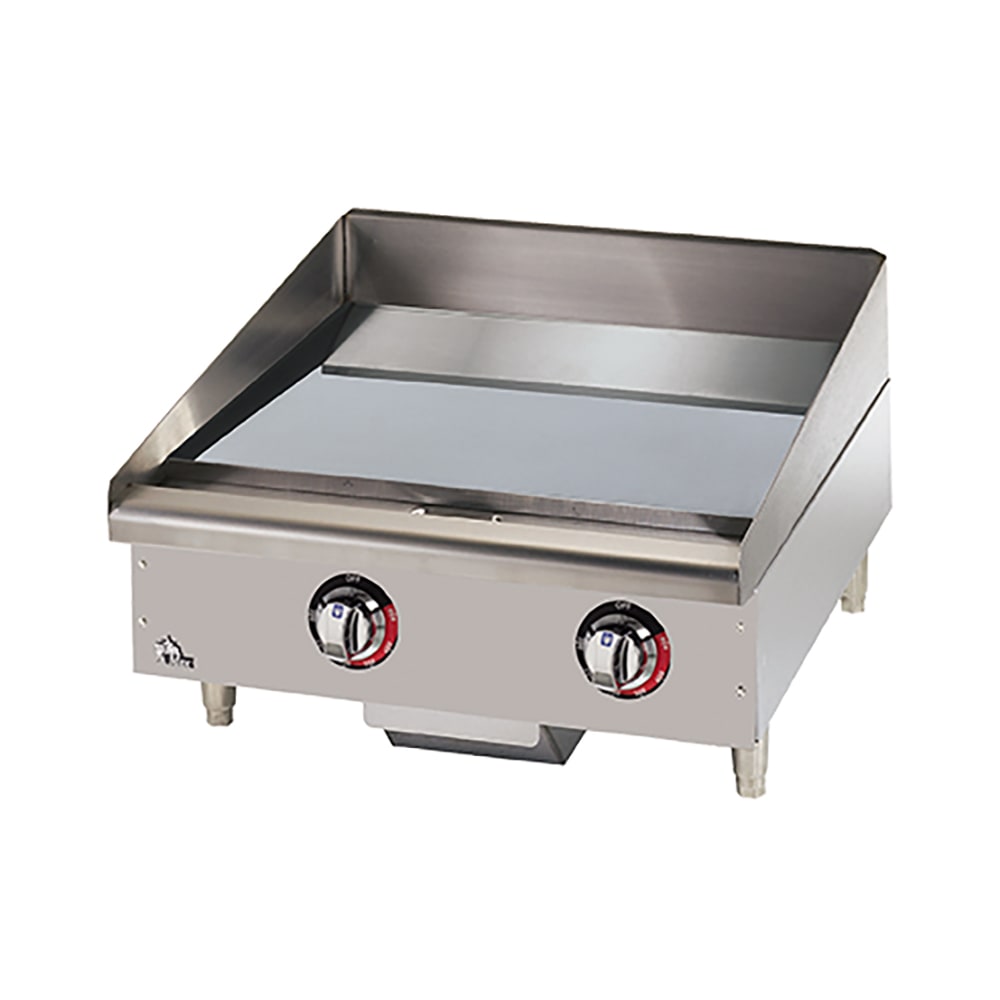

Star 524CHSF 24" Electric Griddle - Thermostatic, 1" Chrome Plate, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-524CHSF208 • MPN: 524CHSF 2081 (C)

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $2,612.50

Image may not depict product color, inclusions or accessories.

Star 524CHSF Description


This Star-Max® electric countertop griddle is constructed with a non-porous steel covered with chrome that eliminates flavor transfer between food items. With a thermostat that has a temperature range from 150 - 450 degrees F and 4000 watts of heat every 12 inches on the griddle plate, you can safely cook a wide variety of food items and never worry about uneven cooking or scorching. To minimize messes, this Star Manufacturing griddle has a wrap-around stainless steel splash guard. Note: this product replaces model 524CHSD.

Standard Features and Benefits:

  • Electric
  • Countertop
  • Non-porous 1-in. steel griddle plate with chrome surface evenly distributes heat to rapidly cook food without food flavor transfer
  • Chrome surface reduces labor costs up to 50% and energy costs by 30%, and helps seal the surface and eliminate food build-up
  • New heavy-duty metal knobs to withstand high temperatures
  • Snap-action thermostat is inserted 5/16-in. in the griddle plate and adjusts from 150 - 450 degrees F
  • 4000W of heat are evenly spaced every 12-in. for fast recovery
  • Cool-to-the-touch bull nose is made from stainless steel and provides knob protection and a comfortable work zone
  • Aluminum steel construction with a stainless steel front
  • Black trim
  • Wrap-around stainless steel splash guard minimizes mess
  • Grease trough is 3-1/4 in. W and the stainless steel drawer is designed for standard spatulas
  • 4-in. adjustable legs
  • 240 V/60 Hz/3-ph; 8000W; 33.3 A
  • 24-in. W x 27-7/8 in. D x 15-1/2 in. H
  • cULus and UL-EPH Listed; ISO 9001:2000 Certified
  • Note: this product replaces model 524CHSD

Star-Max® Heavy Duty Griddle, electric, countertop, 24" W x 20-3/4" D cooking surface, 1" thick chrome griddle plate, 150°-450°F snap-action thermostat and 4000 watt element every 12", welded steel frame with stainless steel top and front, splash guard & grease trough, aluminized steel sides, chrome metal knobs, grease drawer, 4" steel legs, cULus, UL EPH, 208v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star 524CHSF Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 524CHSD
Control Thermostatic
Application Heavy Duty
Plate Material Chrome
Heat Electric
Overall Width (in) 24
Cooking Area Depth (in) 20.75
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Chrome Plate
Specialty Options Front Grease Trough
Warranty 2 years parts & labor
Overall Depth (in) 27.88
Voltage 208/60/1
Weight 175.00
Star 524CHSF Certifications
  • UL
