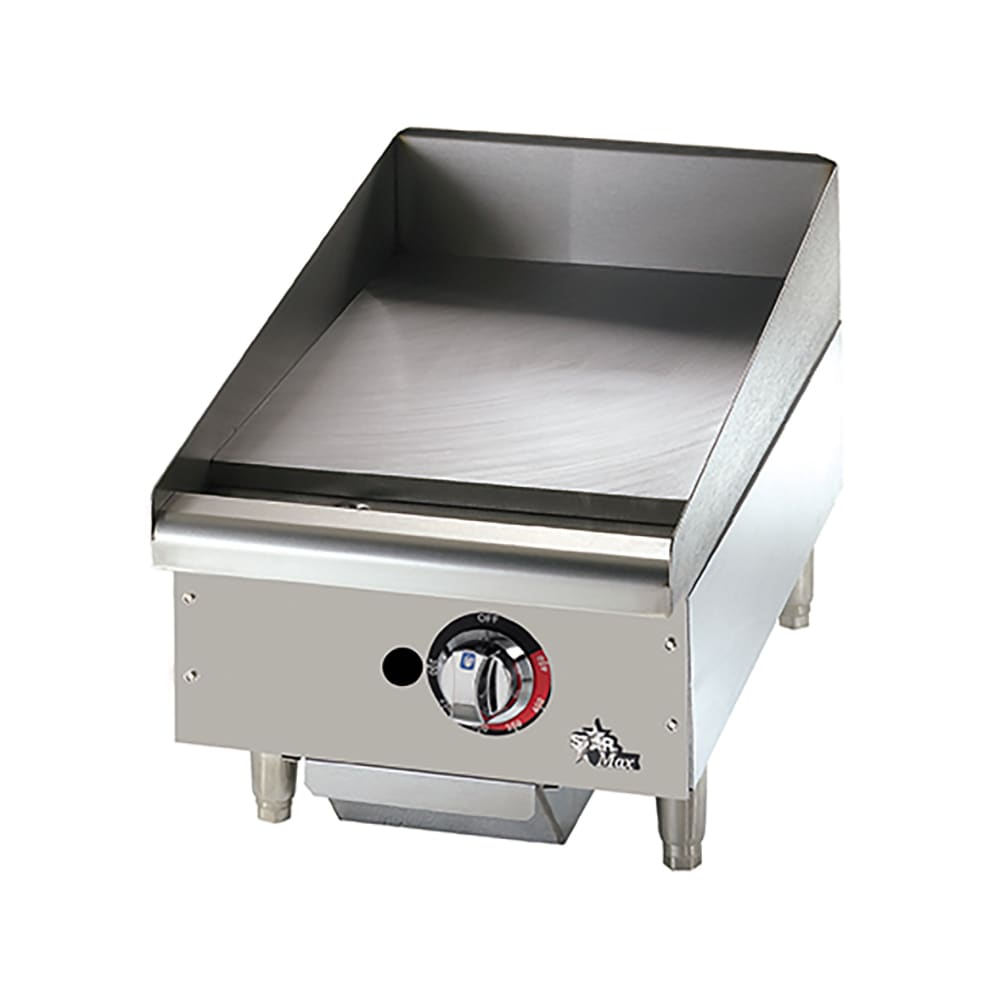

Star 515TGF 15" Electric Griddle - Thermostatic, 1" Steel Plate, 208v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-515TGF • MPN: 515TGF (C)

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $1,007.00

Image may not depict product color, inclusions or accessories.

Star 515TGF Description


Designed with a 4000 watt element every 12 inches on the cooking surface, this Star Manufacturing Star-Max® electric griddle has no hot spots and offers faster recovery times. The cool-to-the-touch stainless steel bull nose on this Star-Max® griddle has adequate knob protection and gives your employees a comfortable work zone. In addition, this Star Manufacturing griddle has a snap-action thermostat that can be adjusted from 150  to 450 degrees F and replaces model 515TGD with improvements including heavy-duty metal knobs that are heat resistant.

Standard Features and Benefits:

  • 1-in. thick polished steel plate offers superior heat distribution with fast recovery and energy efficiency
  • Made from stainless steel for easy cleaning
  • Snap-action thermostat is inserted into the griddle plate 5/16-in. from the cooking surface and can be adjusted from 150 - 450 degrees F
  • Thermostat offers quick response to surface temperature changes
  • Longer lasting, heavy-duty metal knobs are heat resistant
  • 4400W element every 12-in. on the cooking surface helps eliminate hot spots and helps with fast recovery
  • Double wall construction and enclosed bottom reduces heat loss
  • Stainless steel bull nose is made from stainless steel, is cool-to-the-touch, and provides knob protection and a comfortable work zone for the operator
  • 4-1/2 in. H tapered splash guard
  • 3-1/4 in. W grease trough is made to accommodate the common spatula and a grease chute is included as well
  • Grease drawer is made from stainless steel and has a large 4-1/2 qt. capacity
  • 4-in. legs
  • 208/240 V/60 Hz/3-ph; 3.0/4.0 kW; 14.44/16.66 A
  • Total Dimensions: 15-in. W x 27-7/8 in. D x 15-1/2 in. H; 12-3/4 in. leg width
  • UL-EPH and cULus Listed; ISO 9001:2000 Certified
  • Note: this product replaces model 515TGD

Star-Max® Heavy Duty Griddle, electric, countertop, 15" W x 20-3/4" D cooking surface, 1" thick polished griddle plate, 150°-450°F snap-action thermostat and 4000 watt element every 12", welded steel frame with stainless steel top and front, splash guard & grease trough, aluminized steel sides, chrome metal knobs, grease drawer, 4" steel legs, cULus, UL EPH, 208v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Star 515TGF Specifications

PDF Spec Sheet
Manufacturer Star
Also Known As 515TGD
Control Thermostatic
Application Heavy Duty
Plate Material Steel
Heat Electric
Overall Width (in) 15
Cooking Area Depth (in) 20.75
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Snap Action
Specialty Options Front Grease Trough
Warranty 2 years parts & labor
Overall Depth (in) 27.88
Hertz 60
Voltage 208
Phase 1
Weight 125.00
Star 515TGF Certifications
  • UL
