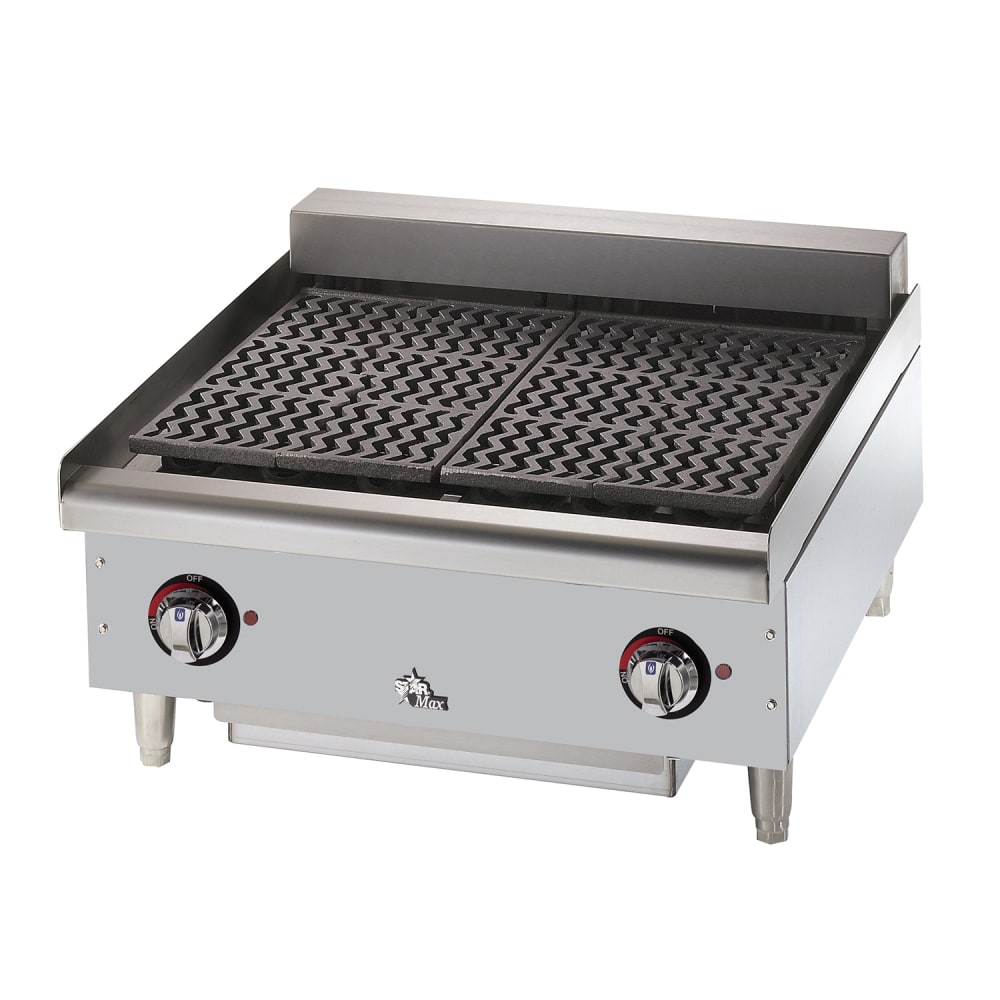

Star 5124CF 24" Charbroiler w/ Removable Cast Iron Grids & Water Pan, 240v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-5124CF2401 • MPN: 5124CF 2401 (C)

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Web Price: $2,196.00

Selected Voltage: 240V, 1 Phase

Image may not depict product color, inclusions or accessories.

Star 5124CF Description

Star

The Star 5124CF Star-Max charbroiler has two 12-inch sections that are separately controlled with infinite control knobs. To evenly heat the broiling surface, this unit has a two-type heat transfer system that uses radiation from the elements and conduction through the grates. Four incoloy-sheathed heating elements produce high-speed charbroiling to suit large operations. Constructed of cast iron, the grates are heavy duty and can be removed for cleaning. The bull-nose front on Star 5124CF Star-Max charbroiler stays cool to protect the operator from the hot broiling surface.

Product Details

  • Radiant heat from the elements and conduction through the grates distributes heat evenly
  • High-speed charbroiling with 4 incoloy-sheathed elements suits high-volume operations
  • Each of the (2) 12-in. sections is controlled independently by an infinite control knob, so different items can be prepared at the same time.
  • Heavy-duty metal knobs provide durability
  • Cast iron grates are heavy duty and can be removed for cleaning
  • 234-in. tapered splash guard prevents grease and food particles from reaching the counter
  • Stay-cool bull-nose front separates the user from the element for safety
  • Stainless steel water pan has a 6-qt. capacity
  • Top and front are made of durable stainless steel to facilitate cleanup
  • Swing-up design holds the heating elements in a vertical position for cleaning
  • 4-in. adjustable legs suit different applications
  • 240 V/60 Hz/1 ph, 27.5 A, 6600 W
  • Overall dimensions: 24 in. W x 25.6 in. D x 14.25 in. H
  • cULus and UL-EPH listed
  • Made in the U.S.

The charbroilers buyers' guide has additional information on the features and benefits of charbroilers.

Star-Max® Heavy Duty Charbroiler, electric, countertop, 24"W x 26"D, heavy cast iron removable grids, swing-up 3300 watt elements every 12", chrome metal knobs, grease drawer, welded steel frame with stainless steel top, front and grease trough, aluminized steel sides, 4" legs, cULus, UL EPH, 240v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Star 5124CF Specifications

PDF Spec Sheet
Manufacturer Star
Cooking Surface Cast Iron
Function Medium Duty
Heat Electric
Height (in) 14.25
Type Radiant
Width (in) 24
Warranty 2 year
Hertz 60
Voltage 240
Phase 1
Weight 129.00
Star 5124CF Certifications
  • UL
