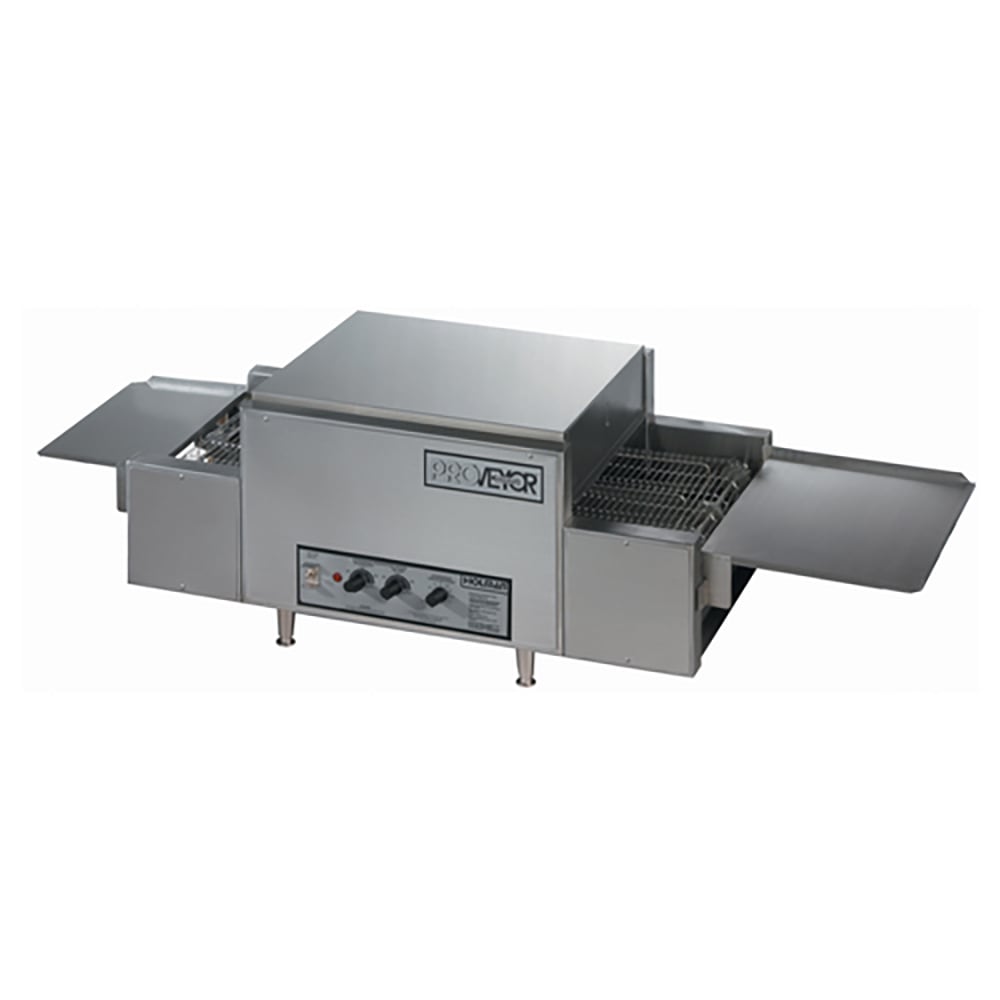

Star 314HX 60" Proveyor Electric Conveyor Oven - 240v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 062-314HX1PH240 • MPN: 314HX 2401 (M)
Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Price: $4,825.00
Login or call us for more info!

Selected Voltage: 240V, 1 Phase

240V, 1 Phase
208V, 1 Phase

Image may not depict product color, inclusions or accessories.

Star 314HX Description

Star

The Star 314HX Proveyor® conveyor oven cooks between 14 and 16 pizzas per hour, but it can also be used for sandwiches, fajitas, and other popular dishes. Moving left to right, the belt measures 38 inches long by 14 inches wide, while quartz infrared heating elements are located above and below the belt to provide an even heat. Heat from the top and bottom elements, along with the conveyer speed, can be adjusted with the analog controls. Adjustable from 112 inches to 4 inches, the chamber openings on this Star 314HX Proveyor conveyor oven can accommodate a variety of products. Extenders on the entry and exit openings provide a place for product to sit before and after cooking.

Product Details

  • (14 to 16) 12-in. pizzas per hr.
  • 38-in. x 14-in. belt moves from left to right
  • Quartz infrared heating elements above and below the belt provide even heating
  • Convection system prevents the belt from getting too hot while extending the life of integral components
  • Entry and exit openings for the chamber are adjustable from 112 in. to 4 in.
  • Analog control system adjusts the conveyer speed and heat from the top and bottom elements
  • Crumb tray is removable to simplify cleaning
  • Removable, 612-in. loading and unloading pieces extend the conveyor area
  • 212-in. legs enable staff to clean underneath
  • Stackable as high as 3 units
  • 240 V/60 Hz/1 ph, 22.9 A, 5400 W, NEMA 6-50P plug
  • Overall dimensions: 38.7 in. W x 21.3 in. D x 16.1 in. H
  • cULus and UL-EPH listed
  • Made in the U.S.

Along with conveyor ovens, we also have deck ovens available. Want to compare these products? Check out our conveyor oven and deck oven comparison article.

Proveyor® Conveyor Oven, electric, analog speed control, independent controls for top & bottom quartz sheathed heater elements, adjustable inlet/exit openings 1-1/2" - 4", 14" W belt, left-to-right conveyor operation, stainless steel construction, cULus, UL EPH, 240v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Star 314HX Specifications

PDF Spec Sheet
Manufacturer Star
Belt Width (in) 14
Control Manual
Heat Electric
Overall Length (in) 60
Overall Width (in) 21.5
Warranty 1 year parts & labor
Hertz 60
Voltage 240
Phase 1
Product Type Ovens
Product Conveyor Oven
Weight 115.00
Star 314HX Certifications
  • UL
