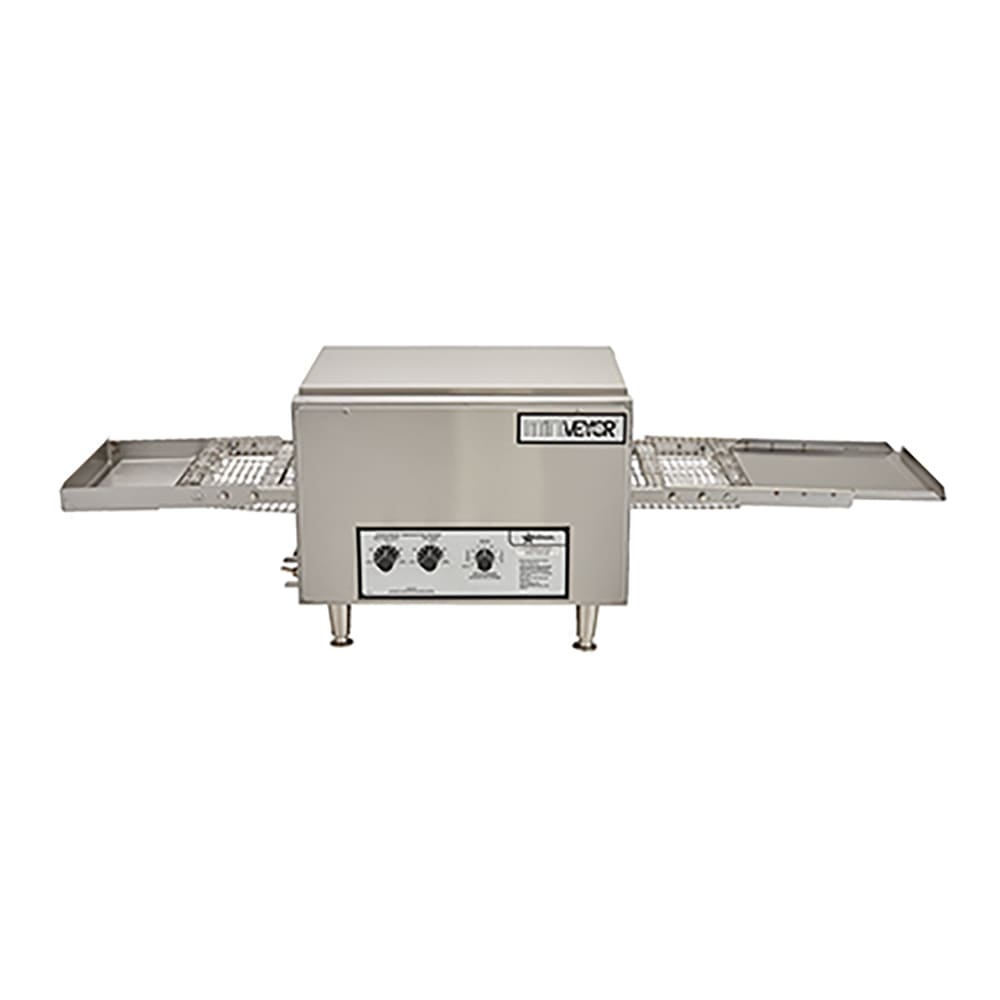

Star 210HX 31" Miniveyor Electric Countertop Conveyor Oven - 208v/1ph

Designed to cook as many as (45) 6-inch-diameter pizzas in an hour, the Star 210HX Miniveyor® conveyor oven quickly heats product with its quartz infrared elements—which are located above and below the conveyor belt, providing even heat. Its forced convection system circulates preheated air throughout the cooking chamber and ensures the belt stays cool, keeping integral components from overheating.

Moving left to right, the conveyor belt measures 31 inches long by 10 inches wide. The chamber entry and exit openings on the Star 210HX conveyor oven are adjustable from 1¹⁄₂ inches to 3 inches to accommodate various products. Loading and unloading areas on each side of the oven provide a place for unbaked and baked pizzas to rest. To maximize space and increase production, this unit is stackable with one other oven.

Product Details

• Part of the Miniveyor series
• Can cook (45) 6-in. pizzas per hr.
• Quartz infrared heating elements are located above and below the belt for quick, even heating
• Convection keeps the belt cool while protecting the integral components
• Forced convection system circulates preheated air through the toasting chamber
• Conveyor belt moves left to right
• Removable crumb tray simplifies the cleaning process
• Conveyor entry and exit openings are adjustable from 1¹⁄₂ in. to 3 in.
• Removable, 6¹⁄₂-in. loading and unloading areas provide a place for uncooked and cooked food to sit
• Analog system controls the conveyor speed and top and bottom heat
• 2¹⁄₂-in. legs elevate the unit off the countertop
• Stackable with 1 other unit
• Requires a 6-in. clearance from combustible surfaces

Dimensions & Utilities

• Belt: 31 in. L x 10 in. W
• Cooking chamber: 16.9 in. L x 10³/₁₀ in. W
• Overall: 36²/₅ in. W x 15²/₅ in. D x 14 in. H
• 13.5 A, 2800 W
• 208 V/60 Hz/1 ph, NEMA 6-20P plug

*Free shipping on Star 210HX within the 48 contiguous states.

From The Manufacturer

Star Miniveyor Conveyor Oven, electric, countertop, analog speed control, independent controls for top & bottom quartz sheathed heater elements, adjustable inlet/exit openings 1-1/2" - 3", 10.31" W belt, conveyor left-to-right standard, stainless steel construction, cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Star 210HX Specifications

Founded in 1921, Star Manufacturing is known for its hot dog machines, fryers, popcorn makers, and toasters. It also creates a variety of heavy cooking equipment for every kind of operation. A Middleby company, Star is based out of its Tennessee factory.

Documents

Spec Sheet

Warranty

Manual
