Multiplex 2705668 Countertop Ice & Soft Drink Dispenser w/ 12 Valves - 300 lb Ice Capacity, 120v
$9,803.40 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Multiplex 2705668 Description

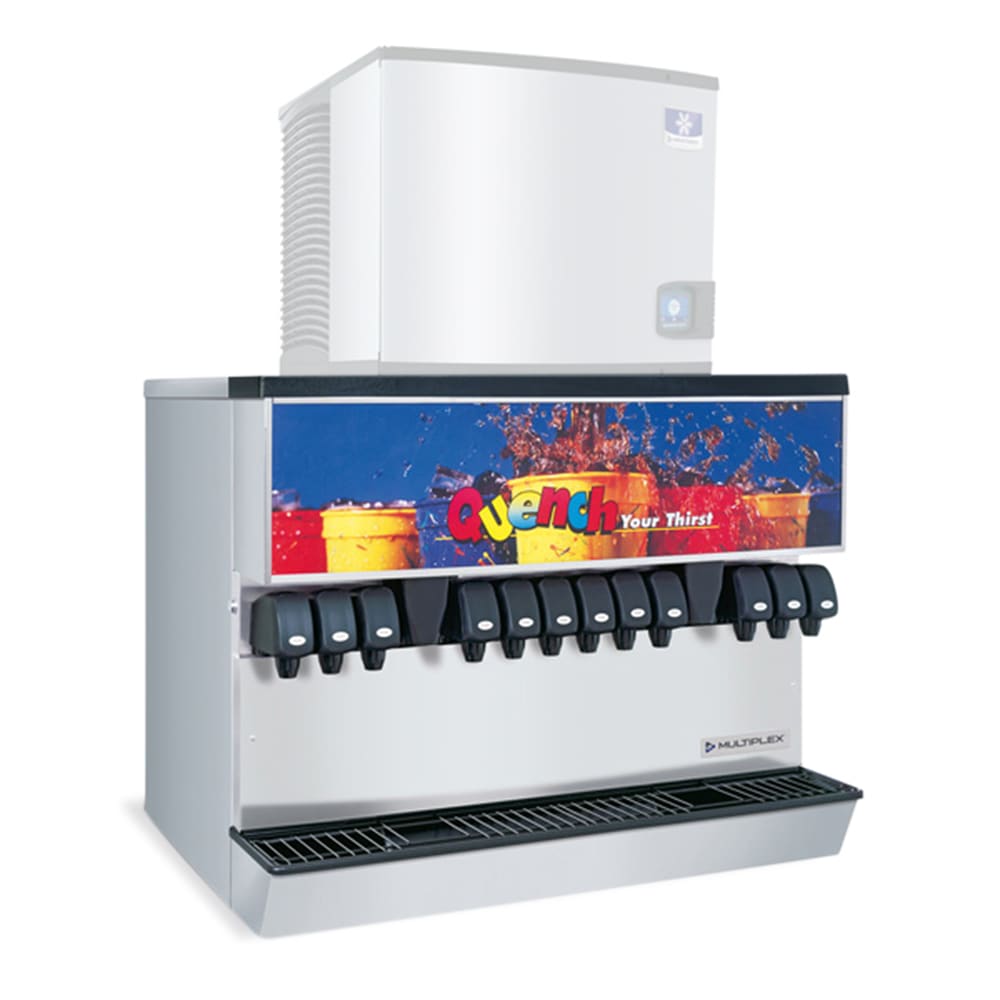

Ideal for fast-casual restaurants, diners, and fast food joints, the Multiplex 2705668 countertop ice and soft drink dispenser features 12 drink valves and two ice chutes. Its multi-port flex manifold can be used with carbonated and non-carbonated beverages, while the ambient-compatible syrup lines also accommodate juice and tea. For convenient flexibility, flavor changeouts are designed in an efficient manner. A drain kit catches any overflow or spills, and to operate, the system requires the separate purchase of an ice maker head.
Across the front of the Multiplex 2705668 ice and drink dispenser, a panel reads “Quench Your Thirst,” and with bright colors and eye-catching graphics, this piece attracts attention to help increase impulse drink sales. The dispenser holds 300 pounds of ice and measures 423/4 inches wide by 301/2 inches deep—a size ideal for countertop installation.

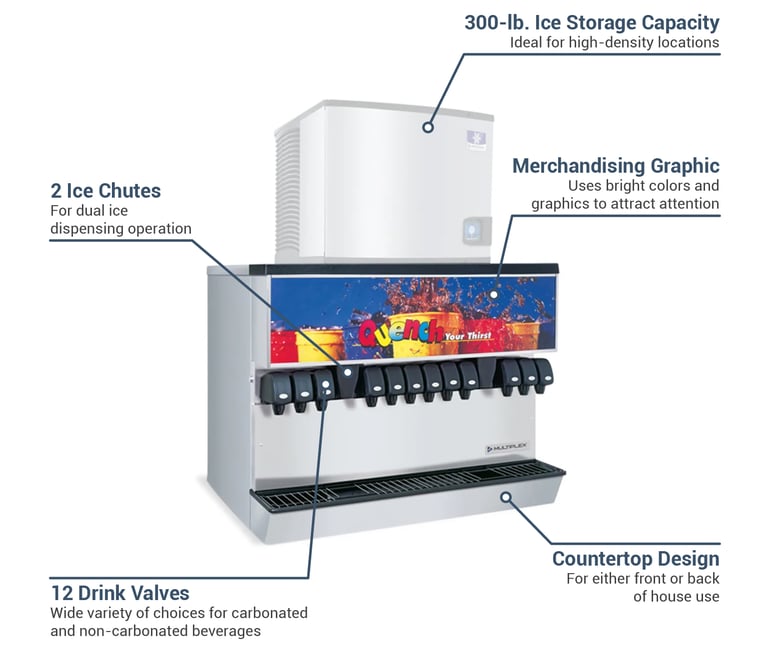

Product Details
- 300-lb. ice capacity
- Countertop design
- 2 ice chutes
- 12 Flomatic® 464GP sanitary lever valves
- Multi-port flex manifold for carbonated and non-carbonated drinks
- Ambient-capable syrup lines for juice and tea
- Efficient flavor changes
- Drain kit
- Colorful "Quench Your Thirst" merchandising graphic
- Ice machine head sold separately
Dimensions & Utilities
- 423/4 in. W x 301/2 in. D x 34 in. H
- 2.8 A
- 120 V/60 Hz/1 ph
Product Features
*Free shipping on Multiplex 2705668 within the 48 contiguous states.
From The Manufacturer
MDH-302 Ice & Beverage Dispenser, countertop, ambient unit, 300 lbs. ice capacity, (2) ice chutes, (12) Flomatic® 464GP sanitary lever valves, 12" lighted merchandiser with "Quench Your Thirst" graphics, drain kit, 120v/60/1-ph, 2.8 amps, cUL, UL, NSF, Made in USA (model not configured for extended merchandiser). Note: Ice machine is sold separately.
*Note: Ice Machine Not Included
Multiplex 2705668 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Multiplex |
| Also Known As | MDH-302 |
| Depth (in) | 30.5 |
| Dispenser Type | Lever |
| Dispenses | Ice & Beverage |
| Height (in) | 33 |
| Hertz | 60 |
| Ice Capacity (lbs) | 300 |
| Installation Type | Countertop |
| Number of Valves | 12 |
| Phase | 1 |
| Product | Ice & Soft Drink Dispensers |
| Product Type | Beverage Equipment |
| Series | MDH Series |
| Serving Vessel | Cup |
| Voltage | 120 |
| Warranty | 2-year Limited Parts; 1-year Labor |
| Width (in) | 42.75 |
| Weight | 433.00 |
